Exploring Key Factors When Choosing an LCD Display

Screen Size and Resolution Options for Various Applications

While selecting an LCD display panel, resolution and size are fundamental. Certain applications such as handheld devices may require small compact displays, while industrial or medical devices may require larger panels. CDTech is a professional LCD display factory that manufactures LCD displays, bar type LCD displays, capacitive touch panels, optical bonded modules, and HDMI/adapter boards with sizes ranging from 2.4″ to 15.6″. Proper size-resolution combination provides clarity. It also provides optimum utilization of space. Panels of greater resolution are most appropriate for applications that entail images in great detail, e.g., diagnostic imaging or graphical user interfaces.

Brightness and Contrast Ratios for Indoor and Outdoor Use

Visibility under various lighting conditions is managed through brightness levels and contrast ratios. Displays with high brightness are required for outdoor use or areas with high ambient light. CDTech provides industrial LCD displays that are of high quality, durable, with high stability, high brightness, extreme temperature operation, and touch & display integration. All these make them provide optimum readability indoors or under direct sunlight conditions.

Viewing Angle Considerations under Various Environments

Viewing angles are essential in multi-user environments or if the user is not able to face the screen head-on. IPS (In-Plane Switching) technology provides better viewing angles than TN (Twisted Nematic) panels. CDTech provides both IPS and TN panels based on application scenarios.

Matching LCD Panels to Application Scenarios

Industrial Environments: Durability and Reliability Requirements

Industrial environments impose harsh conditions—including temperature extremes, vibration, moisture, and dust—which displays must reliably withstand. These displays serve primarily in critical industrial control systems, with common applications spanning human-computer interfaces (HMIs), instruments, and elevators. To meet these demanding requirements, CDTech’s industrial LCDs support customization, offering features such as waterproofing and glove-touch support. Furthermore, anti-condensation layers enhance reliability, while anti-shatter surfaces and UV resistance ensure continued operation. Consequently, CDTech displays maintain consistent performance even in the most demanding industrial settings.

Medical Displays: Precision and Clarity for Diagnostics

Medical devices demand high precision in image rendering along with safety features for patient interaction. Medical equipment will pay more attention to the safety of users and avoid secondary harm to patients, so CDTech can attach a layer of explosion-proof film on the surface of our products and also achieve an anti-glare effect. Customizations such as anti-reflective coatings or projected capacitive touch panels further enhance usability in clinical environments.

Consumer Devices: Balancing Cost and Performance

Consumer electronics like smart home appliances benefit from cost-effective yet visually appealing displays. The regular aspect ratio of TFT LCD panels is 4:3 or 16:9, but for some smart home applications, the bar type displays would be much better than the current mainstream 4:3 or 16:9 to display the products’ required information. CDTech’s bar-type LCDs are particularly suited for these devices due to their sleek form factor and customized dimensions.

Comparing Popular CDTech LCD Display Models

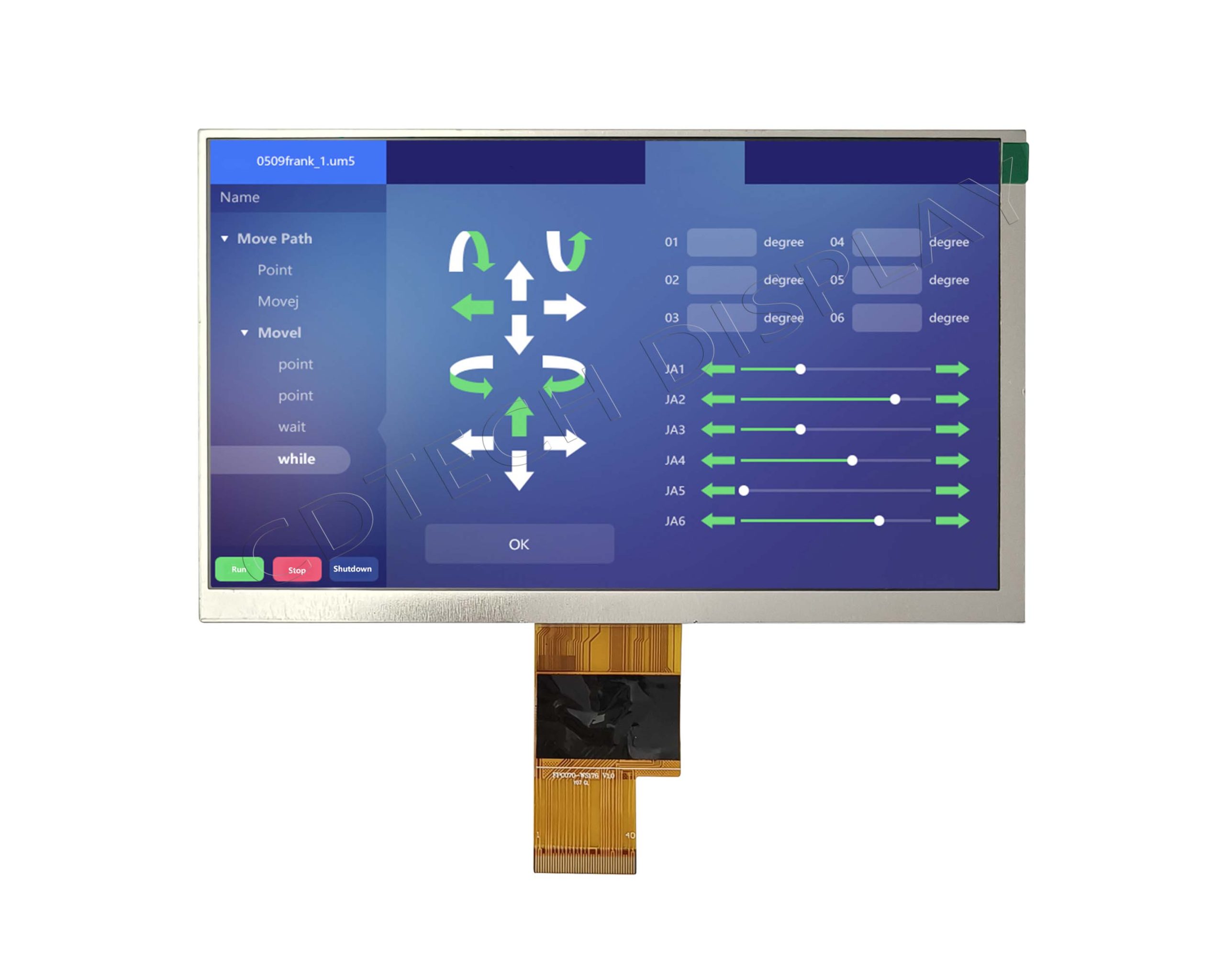

CDTech 7.0-inch IPS Industrial LCD Screen for Industrial Use

This model features IPS technology providing wide viewing angles with consistent color reproduction—ideal for industrial control panels requiring long-term reliability under extreme conditions.

CDTech 12.8″ IPS LVDS Medical Display for Professional Medical

CDTech’s 12.8-inch medical display combines compact thinness with easy installation, ideal for space-constrained devices. Its high-definition screen delivers exceptional brightness and rapid response for precise imaging and record visualization. The anti-glare touch panel supports gloved operation with anti-interference shielding, reducing infection risks while enhancing workflow. Reliable performance across extreme temperatures ensures 24/7 operation in diverse medical environments.

CDTech 4.6″ TN Display for household appliances

CDTech’s 4.6-inch strip TFT module excels in household appliances like coffee machines. Featuring a space-efficient design and TN technology, it delivers optimized viewing angles with high brightness for clear visibility in bright kitchens. Its robust construction ensures stable operation across wide temperature ranges, while integrated drive chips guarantee efficient performance. This reliability and adaptability make it ideal for daily-use appliances requiring durable display solutions.

Technical Specifications That Matter

Interface Types: RGB, LVDS, MIPI, and Their Use Cases

Different interfaces cater to different system designs: RGB is common in simpler systems; LVDS supports higher resolution; MIPI is preferred in mobile devices due to its compact design. CDTech offers all these interface types across its product range to meet various application needs.

Temperature Range and Power Consumption Considerations

Displays used outdoors or in factories must operate within wide temperature ranges without performance degradation. CDTech provides extreme temperatures operations. Additionally, optimized power consumption ensures energy efficiency—a crucial factor especially in battery-powered devices.

Touch Integration Options: Capacitive vs. Resistive Screens

Projected capacitive touch (PCAP) offers multi-touch functionality suited for modern user interfaces while resistive touch remains relevant where gloves are worn or stylus input is needed. CDTech supports both types depending on customer requirements.

How CDTech Supports Diverse Industry Needs

Customization Services Tailored to Client Requirements

CDTech can provide customers with standard and customized display and touch control total solutions. From custom backlight configurations to specialized coatings like AR/AG/AF layers or tailored FPC designs—each solution is engineered specifically based on client needs across industries including medical, automotive, consumer electronics, etc.

In-House R&D Capabilities for Product Innovation

CDTech’s internal R&D team enables rapid prototyping and development of tailored solutions across industries including automotive electronics, medical devices, communication equipment, audio systems, etc.

Why CDTech Is a Trusted Partner for Display Solutions

Our LCD module, touch panel, HDMI & converter board products are all designed and manufactured to meet the highest standards of quality. With expertise across multiple verticals—industrial, vehicle, medical, smart homes —CDTech delivers not only products but complete customized solutions trusted globally.

FAQ

Q: What factors should I consider when selecting an LCD panel?

A: Consider screen size/resolution based on application needs; brightness/contrast ratio if used outdoors; viewing angle; interface type; power consumption; operating temperature; touch integration; durability; certification requirements.

Q: What’s the difference between IPS vs TN panels?

A: IPS offers better color accuracy and wider viewing angles, but may cost more than TN panels, which are faster but have limited angles/viewing consistency.

Q: Can I get a customized LCD panel from CDTech?

A: Yes, CDTech can provide customers with standard and customized display, including custom backlight design, PCB layout modifications, or special coatings like AR/AF/AG depending on your application needs.
