What Are the Main Kinds of Touch Display Panels?

Touch display panels are vital for today’s interactive gadgets. They differ based on their sensing methods. Each kind offers unique benefits for specific uses.

How Are Resistive and Capacitive Touch Panels Different?

Resistive and capacitive touch panels are the most popular technologies for touch displays. Their key difference lies in how they pick up touch input.

Main Features of Resistive Touch Panels

Resistive touch panels use several layers, typically two conductive ones with a small gap between. Pressing the surface with a finger, stylus, or gloved hand makes the layers touch, registering the action. This flexibility works well in places where users might wear gloves or use non-conductive tools.

CDTech can adjust RTP to meet customer needs, offering single or multi-layer designs, custom shapes and interfaces. This makes resistive panels great for industrial settings where toughness and stylus use matter more than multi-touch features.

Traits of Capacitive Touch Panels

Capacitive touch panels sense changes in electrical fields caused by conductive objects, like fingers. They allow multi-touch gestures and give clear visuals due to fewer layers over the screen.

CDTech provides various sizes of capacitive touch panels to fit LCD displays. We also offer CTP customization, like glove touch and waterproof options, ideal for automotive or medical fields.

What’s the Role of Infrared and Optical Imaging Technologies?

Besides resistive and capacitive types, advanced options like infrared (IR) and optical imaging work for specific needs.

Basics of Infrared (IR) Touch Technology

Infrared touch screens use a grid of IR light beams across the surface. When something blocks these beams, the system finds the touch spot. IR doesn’t need pressure or conductive objects, making it good for large displays with multiple users at once.

Optical Imaging in Touch Displays

Optical imaging uses cameras at screen corners to spot shadows from touches. It supports multi-touch and handles different input types but is less precise than capacitive or resistive panels. It’s often used for big displays, like kiosks or whiteboards.

Are Surface Acoustic Wave (SAW) Panels Still Useful?

SAW technology sends ultrasonic waves across a glass panel. A touch absorbs some of the wave, letting sensors pinpoint the location.

Pros and Cons of SAW Technology

SAW panels give clear images with no extra coatings. But dust or water droplets can mess with wave transmission. They also need bare fingers or soft-tipped styluses, which limits their use in rough settings.

How Do Screen Materials Impact Performance and User Experience?

The material of a touch screen affects its durability, responsiveness, weight and visual clarity.

Glass vs. Plastic Screens: Durability Impact

Scratch Resistance and Longevity

Glass screens resist scratches better than plastic ones. This makes them last longer in busy settings like retail POS systems or mobile devices.

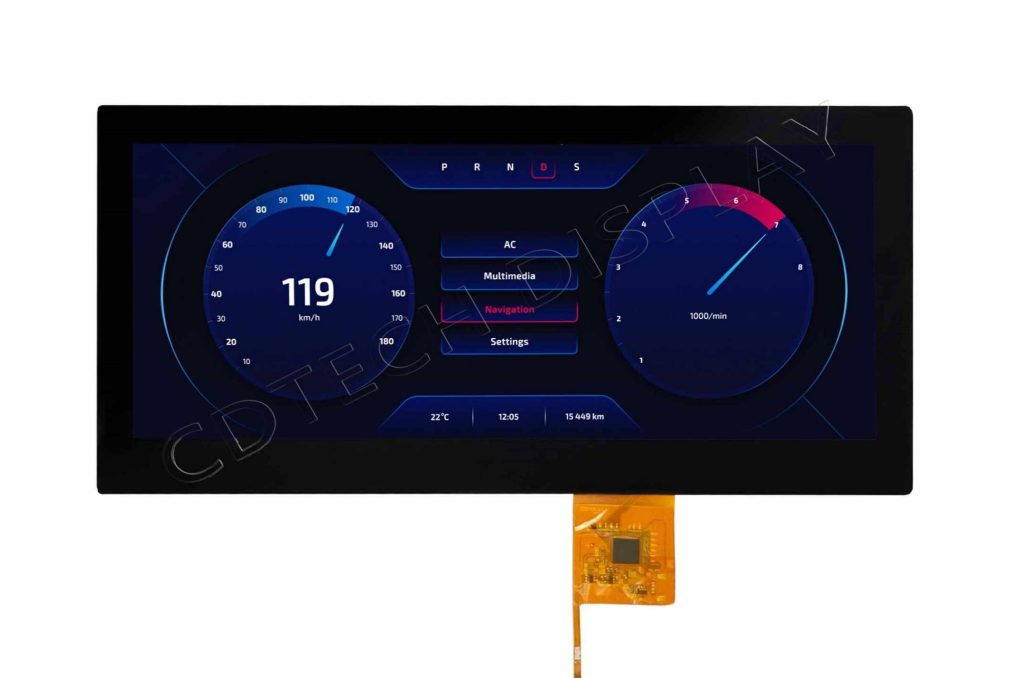

CDTech’s LCD automotive displays provide great outdoor visibility with high brightness and ultra-high resolution. They often use strengthened glass to resist impact or wear.

Weight and Flexibility

Plastic screens are lighter and more bendable but scratch more easily. They suit applications needing less weight or some flexibility.

How Do Screen Coatings Affect Visual Clarity?

Anti-Glare vs. Glossy Coatings

Anti-glare coatings spread out ambient light to reduce reflections, making screens easier to read in bright settings, like vehicle dashboards or field gear. Glossy coatings boost color vibrancy but can glare in strong light.

Oleophobic Coatings for Smudge Resistance

Oleophobic coatings push away fingerprint oils, keeping screens clear with frequent use. This is key for mobile devices or public touchscreens with constant touching.

About CDTech and Its Touch Display Panel Solutions

Who Is CDTech and What Do They Offer?

Shenzhen CDTech Electronics, started in 2011, is a high-tech company focusing on TFT LCDs, Touch Displays, HDMI Displays and other display products.

CDTech’s Product Range

CDTech offers products like 12.1 inch Outdoor LCD Display with Capacitive Touch Screen, 15.6 inch FHD Displays with 1200 Nits brightness and 10.1″ Sunlight Readable IPS Displays with Optical Bonding. These support capacitive (PCAP) and resistive (RTP) options for different industry needs.

Our 7.0″ Sunlight Readable IPS Display with Capactive Touch Panel Air bonded shows how anti-glare and high brightness improve outdoor readability.

Industries CDTech Serves

Our products are used in Industrial Control Equipment, Medical, Smart-Home, Automotive and Vehicle Displays. From tough industrial terminals to sleek smart home interfaces, we provide solutions for each sector’s specific demands.

Why Pick CDTech for Touch Display Needs?

Customization Options

Beyond standard products, we’re known for flexible customization, from backlight types to fully custom solutions for your needs. We also support interface conversions with HDMI or parallel-port boards for complex systems.

Commitment to Quality and Innovation

Our “Zero Defect” policy ensures strict quality standards. Certifications like ISO9001, ISO14001, ISO13485 and IATF16949 guarantee compliance for industries like automotive and medical manufacturing.

Which Applications Benefit Most from Different Panel Types?

Choosing the right touch panel depends on the environment and user needs.

Industries Using Capacitive Panels

Retail Point-of-Sale Systems

Capacitive screens’ quick response improves checkout experiences. They support multi-touch gestures to make operations smoother.

Mobile Devices and Tablets

Their sleek design and oleophobic coating options make capacitive panels perfect for smartphones and tablets needing clear displays and easy interactions.

Where Are Infrared Touch Panels Used?

Interactive Whiteboards in Education

Large IR touch screens let multiple students interact without pressure, great for group learning.

Self-Service Kiosks in Public Spaces

Kiosks gain from IR’s toughness against vandalism and accurate input from fingers or styluses in conditions like rain or dirt.

When to Choose Resistive Panels?

Industrial Settings with Gloves or Styluses

Resistive panels work well with gloves or styluses, common in factories or cold storage areas.

Budget-Friendly Projects with Simple Interfaces

For projects focused on cost over advanced features like gesture recognition, resistive panels offer reliable performance at a lower price.

How to Choose the Right Touch Panel for Your Application

What Should You Consider?

Environmental Conditions (Indoor vs. Outdoor)

Outdoor setups need high brightness and anti-glare features.

Usage Frequency and User Behavior

Busy areas need tough materials like strengthened glass with oleophobic coatings to keep visual quality under constant use.

Screen Size and Resolution

Applications like vehicle infotainment may need widescreen formats.

Why Does Multi-Touch Matter?

Improving User Interaction with Multi-Touch

Multi-touch allows pinch-to-zoom, vital for mapping apps or design software where precision is key, making capacitive panels the top choice.

Limits of Some Panel Types

Resistive panels often lack true multi-touch. SAW and optical imaging may struggle with gesture accuracy or response speed in certain settings.

FAQ

Q: What’s the difference between a touch screen and a touch panel?
A: A touch panel is the sensor layer detecting contact. A touch screen combines this with a visual display, forming an interactive touch display panel.

Q: Can CDTech make custom-sized touch panels?
A: Yes. CDTech’s advanced technology allows custom display sizes, FPC pinout layouts and backlight structures for various applications.

Q: Are capacitive panels tougher than resistive ones?
A: Capacitive panels often resist scratches better due to glass surfaces but may not work with gloves unless customized. CDTech’s CTP customization includes glove touch support for tough conditions.
