What Goes Into Picking the Perfect Size for a Custom LCD Panel?

Why Does Display Size Matter for Custom LCDs?

The size of a custom LCD panel is a big deal for how well it works in different setups. Whether you’re building a handheld gadget, a factory control screen, or a smart home device, the display’s dimensions need to match how people will use it and the space it’s got. Picking the right LCD isn’t just about size and resolution. It’s about really getting what your project needs and how LCD tech can nail those needs. For instance, tiny screens are great for wearables, while bigger ones shine in stuff like digital signs or car dashboards.

How Does Viewing Distance Affect Screen Size?

How far someone stands from the screen is super important for picking its size. If the user’s a few feet away, you’ll need a bigger display to keep things clear and readable. A control panel viewed from a distance needs a way larger screen than one you’re holding up close. Figuring out stuff like viewing angle and distance is the starting point for designing your LCD.

What Are the Usual Size Ranges for Custom LCD Panels?

Custom LCD panels come in all sorts of sizes depending on what they’re for.

CDTech provides 1.5″ ~ 15.6″ high-quality industrial LCD displays with longevity, high stability, high brightness, extreme temperatures operations and touch & display integration. These are popular in things like factory controls, elevators and human-machine interfaces. For special uses like smart appliances or car dashboards, bar-type displays from 2.9″ to 12.3″ are also up for grabs.

Should You Think About Aspect Ratio When Picking Panel Size?

Yup, totally. The aspect ratio is the balance between a screen’s width and height and it changes how stuff looks on it. The regular aspect ratio of TFT LCD panels is 4:3 or 16:9, but for some smart home applications the bar type displays would be much better than the current mainstream 4:3 or 16:9 to display the products required information. Choosing the right ratio makes sure your content looks good without weird stretching or empty space.

How Do You Pick the Right Resolution for Your Custom LCD?

Why’s Resolution Key for Clarity and Performance?

Resolution is all about how many pixels your screen shows—more pixels mean sharper images and finer details. This matters a ton for stuff like medical imaging or fancy consumer gadgets where every pixel counts. LCDs offer excellent image quality with sharp, clear pictures and high resolution.

Matching Resolution to What You Need

High-Resolution Needs for Medical and Factory Gear

Medical gear needs crazy high-resolution screens for spot-on diagnostics. Same goes for industrial setups, where detailed graphics need more pixels. Medical equipment will pay more attention to the safety of users we can also develop more derivative solutions on the standard LCD display according to customer requirements, including anti-glare coatings and explosion-proof films that complement high-resolution screens.

Standard Resolutions for Everyday Gadgets

Stuff like thermostats or kitchen appliances doesn’t need super high resolutions but still needs to be clear enough for icons and text. Matching resolution to the job keeps costs down while keeping things usable.

How Does Pixel Density (PPI) Change the Game?

Pixel density (PPI—pixels per inch) affects how crisp images look at different distances. Higher PPI means better detail, but it’s overkill if users aren’t close enough to notice. Phones need high PPI for up-close use, but public kiosks don’t need that level of detail.

Getting to Know CDTech’s Custom LCD Panel Solutions

Who’s CDTech and What Makes Their Stuff Special?

Shenzhen CDTech Electronics, started in 2011, is a national high-tech crew focused on TFT LCDs, touch displays, HDMI displays and more. We’re proud of our killer R&D skills and tight quality checks that let us roll out both standard and custom solutions for specific industry needs.

What Kinds of Custom LCD Panels Does CDTech Have?

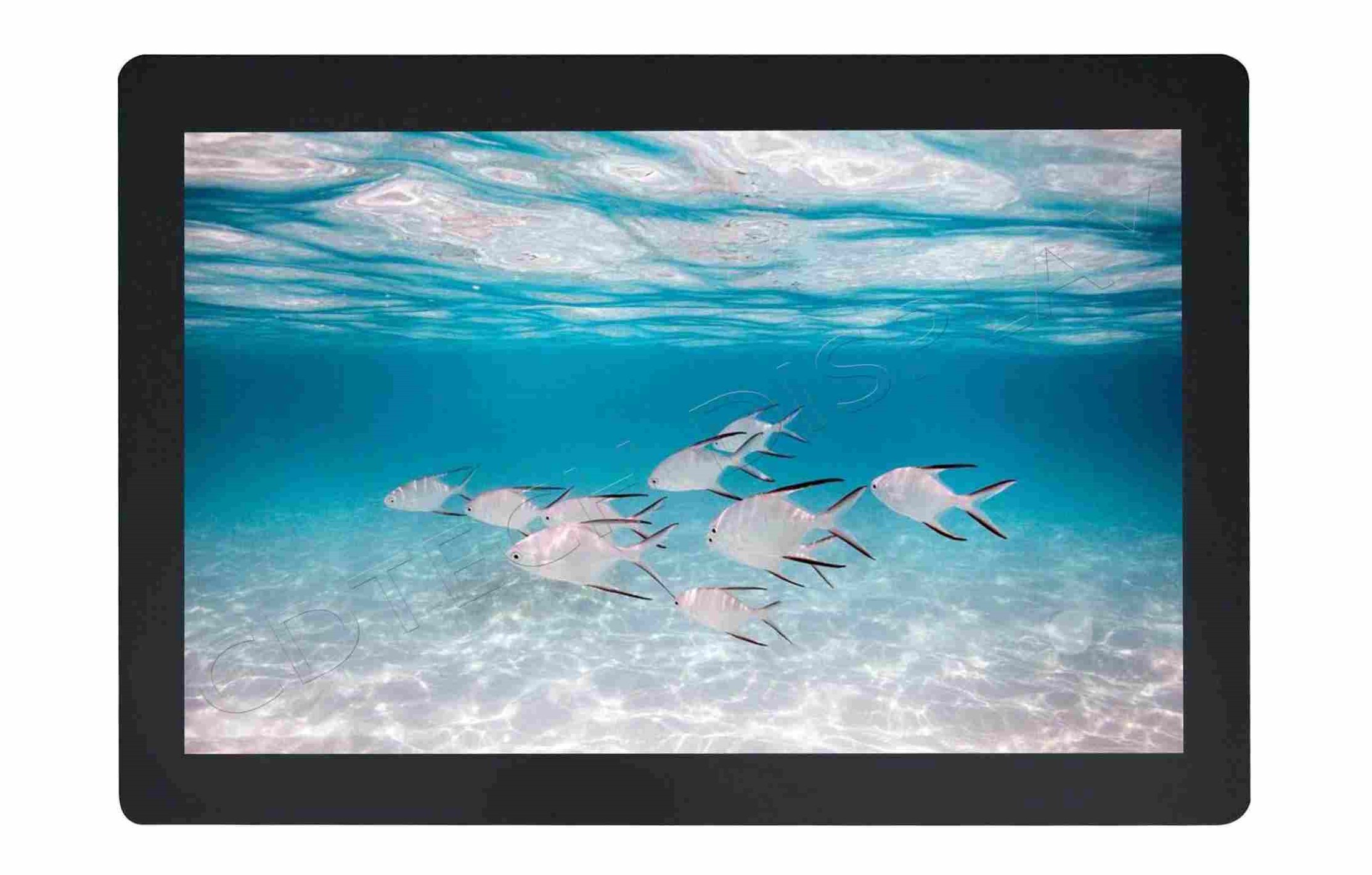

TFT LCD Panels

We offer top-notch TFT (Thin Film Transistor) modules known for awesome color and quick response times—perfect for interfaces packed with multimedia.

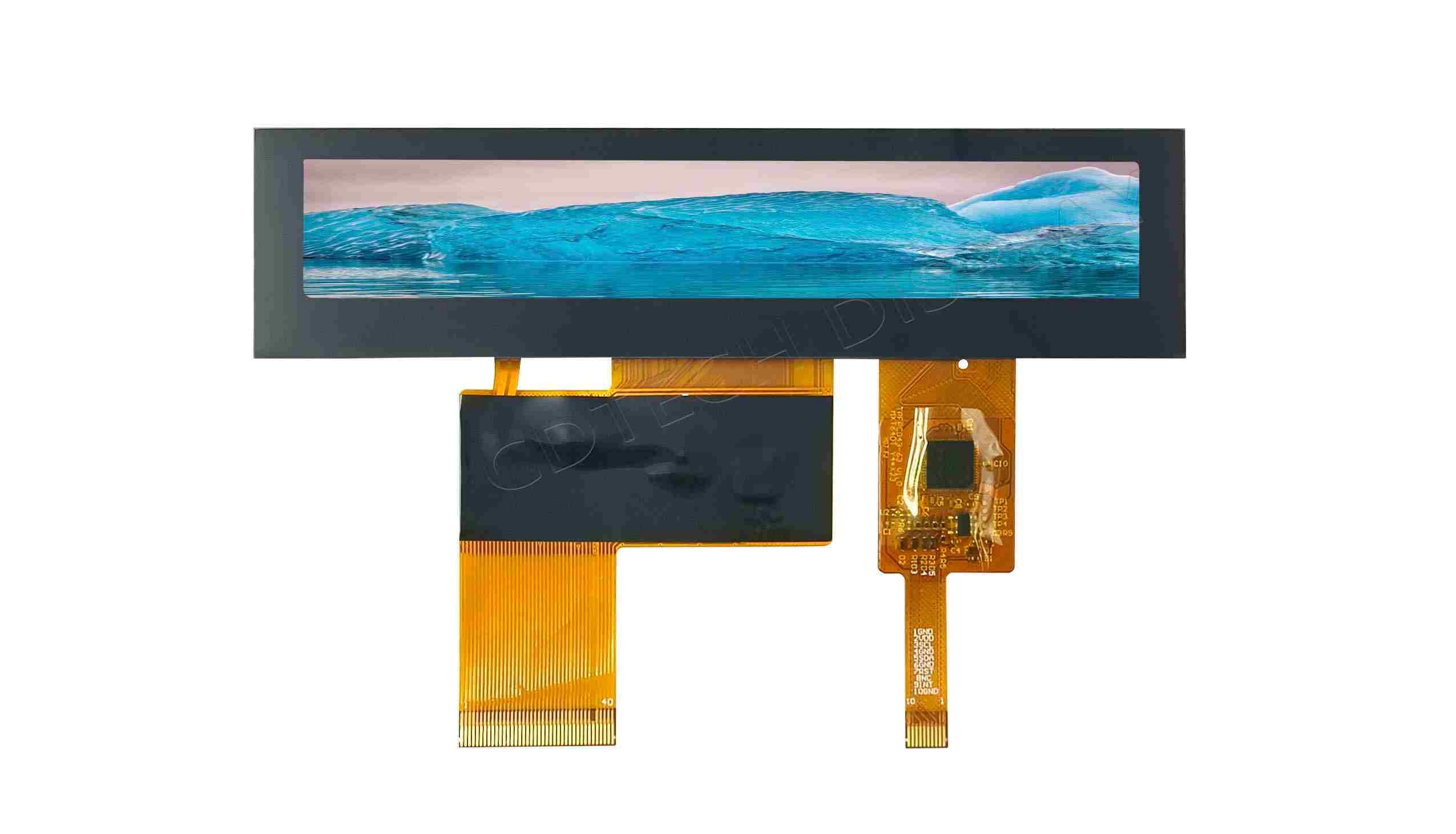

Bar-Type Displays

CDTech’s own bar type display cutting technology and the 2.9″ ~ 12.3″ bar LCD displays can be widely used in these home appliances. They’re great for smart fridges, AC units, ovens and other gear where standard ratios don’t cut it.

High-Brightness Outdoor Screens

Our outdoor displays pack extra brightness with options like anti-UV coating and waterproofing—key for car dashboards or public kiosks in the sun.

How Can CDTech Help Pick the Right Size and Resolution?

We’ve got your back from start to finish—analyzing needs, prototyping and final production. CDTech can support LCD size customization services Also support customized FPC pinout layout and support backlight differentiation customization. Our engineering crew helps pick not just size but also resolution, interface type, backlight design and touch features—all dialed in for your project.

What Tech Stuff Should You Think About for Custom LCD Panels?

How Do Interface Types Affect Your Display Choice?

Making sure the interface works with your system is huge. In order to meet customers’ higher requirements for display, CDTech can support customized adapter boards with different interfaces Such as adapter boards for different interfaces (RGB to MIPI etc.). This makes sure our displays play nice with your hardware.

Does Touch Functionality Change Size or Resolution Choices?

Yup—adding touch means tweaking size (to fit sensors) and resolution (to keep things clear under overlays). CDTech can provide different sizes of capacitive touch panels including: support for touch through thick cover glass glove touch active/passive pens. We also offer extras like anti-fingerprint coatings to keep things user-friendly without losing visual quality.

What Environmental Factors Should You Check?

Think about stuff like extreme temps, humidity, UV rays, or physical bumps when picking a design. For special environments and extreme weather our products can be designed with touchable by gloves, waterproof, anti-condensation. These features keep things durable in tough spots.

Where Are Custom LCD Panels Making a Difference?

Which Industries Gain from Custom Display Sizes and Resolutions?

Automotive Displays

Car dashboards need screens that stay readable in sunlight with wide viewing angles—custom TFT panels with specific brightness levels nail this.

Industrial Control Systems

These setups need tough displays that work in harsh conditions while showing real-time graphics with decent-to-high resolutions.

Smart Home Devices

Smart appliances love bar-type displays that fit sleek designs and offer easy-to-use interfaces with custom resolutions. The bar type displays can also be designed according to the characteristics of different home appliances such as coffee machines or air conditioners.

How Do Use Cases Shape Design Specs?

Every use case has its own needs—glove-friendly screens for medical gear or waterproofing for outdoor kiosks. These guide choices on panel size, resolution, interface, backlight strength and touch layers. Answering these questions forms the foundation of your LCD design process.

FAQ

Q: What’s the difference between resolution and screen size in an LCD panel?
A: Screen size is the physical diagonal measurement, while resolution is how many pixels fill it. A big screen doesn’t mean sharp images unless it’s got enough resolution.

Q: How do I know which resolution fits my project?
A: Think about viewing distance and how complex your content is—fancy graphics need higher resolutions; simple text interfaces might not.

Q: Can I get a custom-sized display with specific resolution needs from CDTech?
A: Yup. CDTech can support LCD size customization services cutting patent technology custom cutting of displays to specific dimensions is available We also tailor resolution parameters based on your exact use-case requirements across industries like medical devices or automotive systems.
