What Are TN and IPS Panels and How Do They Roll?

How does a TN panel function?

TN or Twisted Nematic, is one of the oldest LCD tricks in the book. A TN panel works by twisting liquid crystals to let light from the backlight shine through. Those crystals flip super fast when the voltage changes, so pixels switch in a snap. TN screens sip power, react quick and refresh fast compared to IPS displays. That makes them killer for stuff like gaming monitors where speedy action is key.

What makes IPS technology different from TN?

IPS means In-Plane Switching. Unlike TN panels where crystals twist up and down, IPS panels keep them lined up side-by-side along the screen. This lets light flow nice and even from all angles. IPS displays offer better color reproduction and wider viewing angles compared to TN panels. Colors stay true no matter where you’re looking from.

Which is better IPS or TN?

It depends on what you’re after. If you want something cheap and zippy for fast-paced games, a TN panel’s probably your jam. But if you’re into crisp colors, wide angles and a dope experience for creative stuff or movie binges, go with an IPS panel.

Comparing Visual Quality: Color Accuracy and Viewing Angles

Why do IPS panels offer better color reproduction?

The side-by-side crystal setup in IPS panels keeps light moving smoothly across all pixels, no matter the angle. IPS displays offer better color reproduction and wider viewing angles compared to TN panels. Colors look spot-on even if you’re peeking from the side—great for graphic design, photo editing or video gigs.

How do viewing angles differ between TN and IPS displays?

TN panels have tight viewing angles. Colors can get wonky or dim if you look from above or the side. Meanwhile, IPS display type offers approximately 89 degrees of viewing Angle left, right, up and down (typical), showing how IPS keeps visuals looking fresh from any direction.

Is TN or IPS better for eyes?

Both use backlights that can tire your eyes after a while, but IPS displays are usually kinder because they’ve got less distortion and steady brightness across the screen. Their sharper contrast ratios make things easier to look at for long stretches.

Performance Differences: Refresh Rates and Response Times

Which panel type offers faster response times?

TN panels are champs at reacting fast. TN displays offer low power consumption, high response rates compared to IPS displays. Their quick pixel switches are awesome for fast-moving stuff like pro gaming.

Understanding response time in TN vs IPS

Response time is how fast a pixel can swap colors, measured in milliseconds (ms). TN panels often hit 1ms or less, while most standard IPS panels sit between 4ms–8ms.

Gaming performance: Does refresh rate matter more than color accuracy?

For hardcore gamers chasing speed, refresh rate and response time trump color accuracy. That said, newer gaming monitors with fancy IPS tech are catching up, giving you both zippy performance and sweet visuals.

Can IPS panels match the speed of TN displays?

IPS panels have leveled up big time. Top-tier ones can now hit sub-5ms response times with refresh rates up to 144Hz or higher—making them legit options even for gamers who used to swear by TN.

CDTech Display Solutions: Top-Notch TN and IPS Options

Who is CDTech and what do they bring to the table?

We at CDTech make awesome LCD solutions for stuff like cars, industrial controls, smart homes, medical gear and everyday gadgets. Our lineup has both lightning-fast TN displays and super-sharp IPS screens built for pro-level tasks.

What are the features of CDTech’s TN Displays?

CDTech presents a remarkable 2.9-inch liquid crystal display boasting a resolution of 320*120 pixels and a brightness of 300 nits. This bar-type screen uses a standard 12 o’clock view with gray scale inversion at 6 o’clock—perfect for small industrial devices.

Fast response times for high-stakes apps

Our TN displays use SSD2119 driver ICs with RGB+MCU+SPI interfaces for snappy signal processing—great for real-time monitoring setups where speed’s a must.

Budget-friendly options for everyday use

TN tech is naturally cheaper to make. With our custom tweaks—like FPC layout changes and EMI/ESD protection—you get solid, wallet-friendly displays.

What makes CDTech’s IPS Displays stand out?

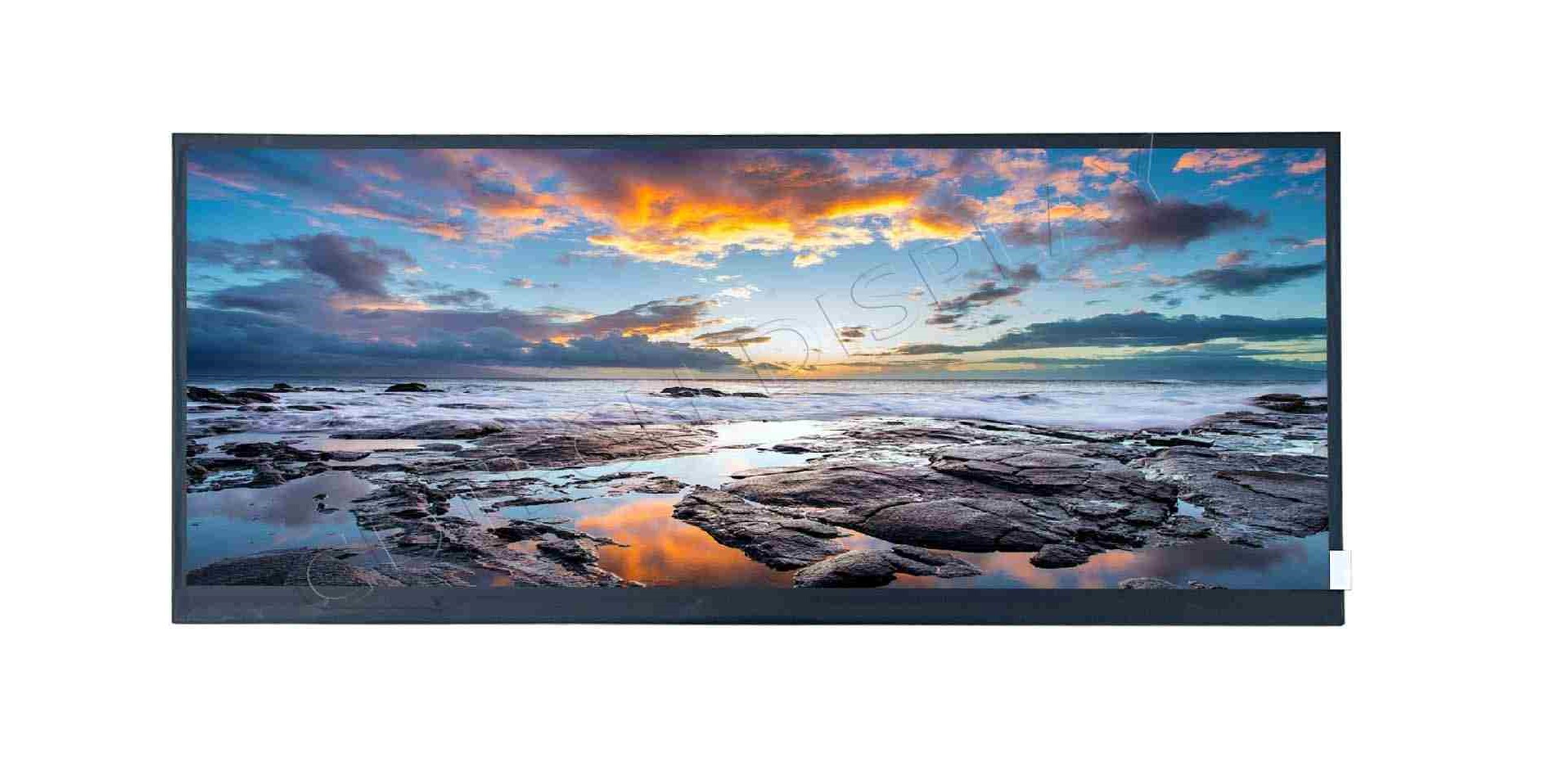

Introducing the CDTech 12.3-inch IPS LCD display Featuring a resolution of 1920×720 pixels and a brightness level of 1000 nits, this model exemplifies our commitment to clarity under any lighting condition—especially outdoor environments like automotive dashboards.

Killer color accuracy for pro work

CDTech unveils a 5.0-inch LCD masterpiece. It utilizes 24-bit RGB interface for accurate color reproduction, making it perfect for stuff like medical imaging or digital signage where visuals gotta be on point.

Wide viewing angles for a better experience

The state-of-the-art LVDS interface, boasting an IPS full-view technology ensures that content remains vibrant even when viewed from extreme angles—a key advantage over traditional alternatives.

Durability and Longevity of Each Panel Type

How long do TN panels typically last?

A panel’s lifespan mostly hinges on the LED backlight, not the panel type itself. The lifetime is determined by the LED in the backlight, usually ranging from 30000 hours to 50000 hours. Following our usage tips can stretch that life even more.

Are IPS panels tougher against image wear over time?

IPS panels hold up better against long-term issues like burn-in or ghosting thanks to their even crystal setup. This boosts both visual quality and staying power over time.

Cost Considerations: Are You Paying More for Better Quality?

Why are TN panels usually cheaper?

TN panels use fewer materials and simpler designs than IPS panels. That keeps prices low without skimping on the basics—perfect for projects on a budget.

Is the higher cost of an IPS panel worth it?

Yup—if you need awesome visuals in tough conditions, like bright sunlight or pro-grade image quality, the extra bucks pay off. This elongated display delivers exceptional visual fidelity making it ideal for automotive applications.

Choosing the Right Panel Based on Your Needs

Which panel is better suited for gaming environments?

Competitive gaming needs vs immersive visuals

If low lag’s your main thing—like in eSports—a speedy TN display’s probably best. But if you’re into epic visuals for games like open-world RPGs, modern fast-refresh IPS screens give you speed plus gorgeous graphics.

What should pros look for in a display panel?

Why color accuracy matters for creative work

Pros doing digital media should pick high-resolution IPS displays with wide color coverage and steady hues from all angles—features baked into our premium line like our 10.1-inch TFT vertical liquid crystal module which supports full-view visibility with high contrast ratios.

Are TN or IPS panels better for regular folks?

Everyday users get more out of the wide-angle viewing from basic IPS screens. They’re super versatile for stuff like watching videos or reading docs, even if you don’t need the crazy-fast refresh rates some TN models bring.

FAQ

Q: What are the downsides of TN panels?
A: Narrower viewing angles, less accurate colors, inferior contrast ratios compared to modern alternatives like IPS.

Q: Can you tell the difference between a TN and an IPS screen just by looking at it?
A: Yes—color distortion when viewed off-center typically indicates a TN panel; consistent visuals suggest an IPS screen.

Q: Do all IPS panels have slow response times compared to TN?
A: Not really—lots of modern IPS screens now have fast enough response times to work great for gaming.

Q: Is there a risk of burn-in with either panel type?
A: Burn-in’s rare for both, but newer IPS panels are a bit less likely to have it thanks to better material stability.

Q: Which display type consumes more power: TN or IPS?
A: TN usually uses a tad less power because of its simpler setup, but the gap’s pretty small with newer designs.

Q: How do I decide between a CDTech TN Display and a CDTech IPS Display?
A: Go for our TN models if you’re after low cost and speed; pick our sunlight-readable or full-view IPS options if crisp visuals are what you need most.
