2.9″ TFT LCD Display 320×120, 1000 Nits High Brightness
-

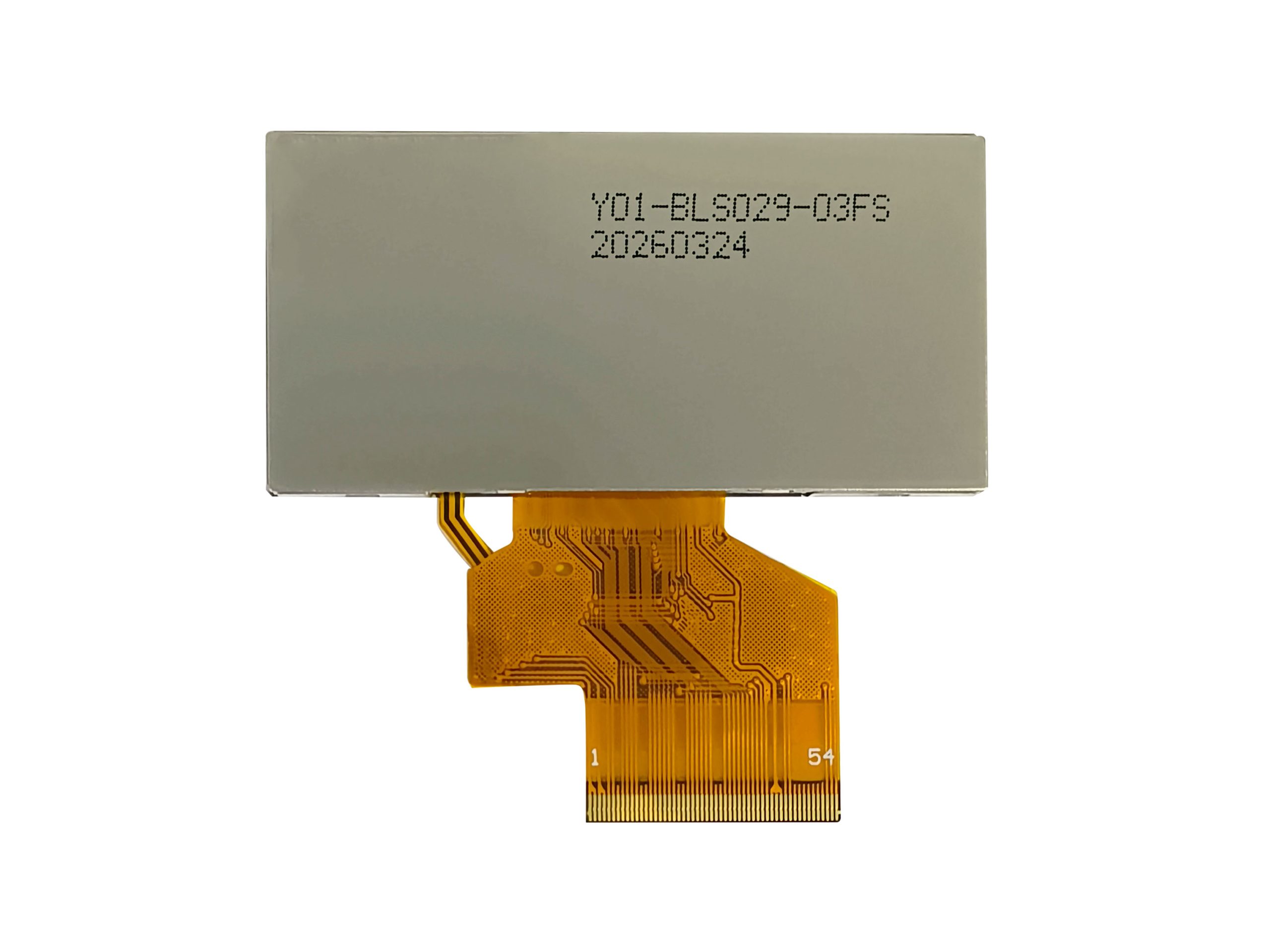

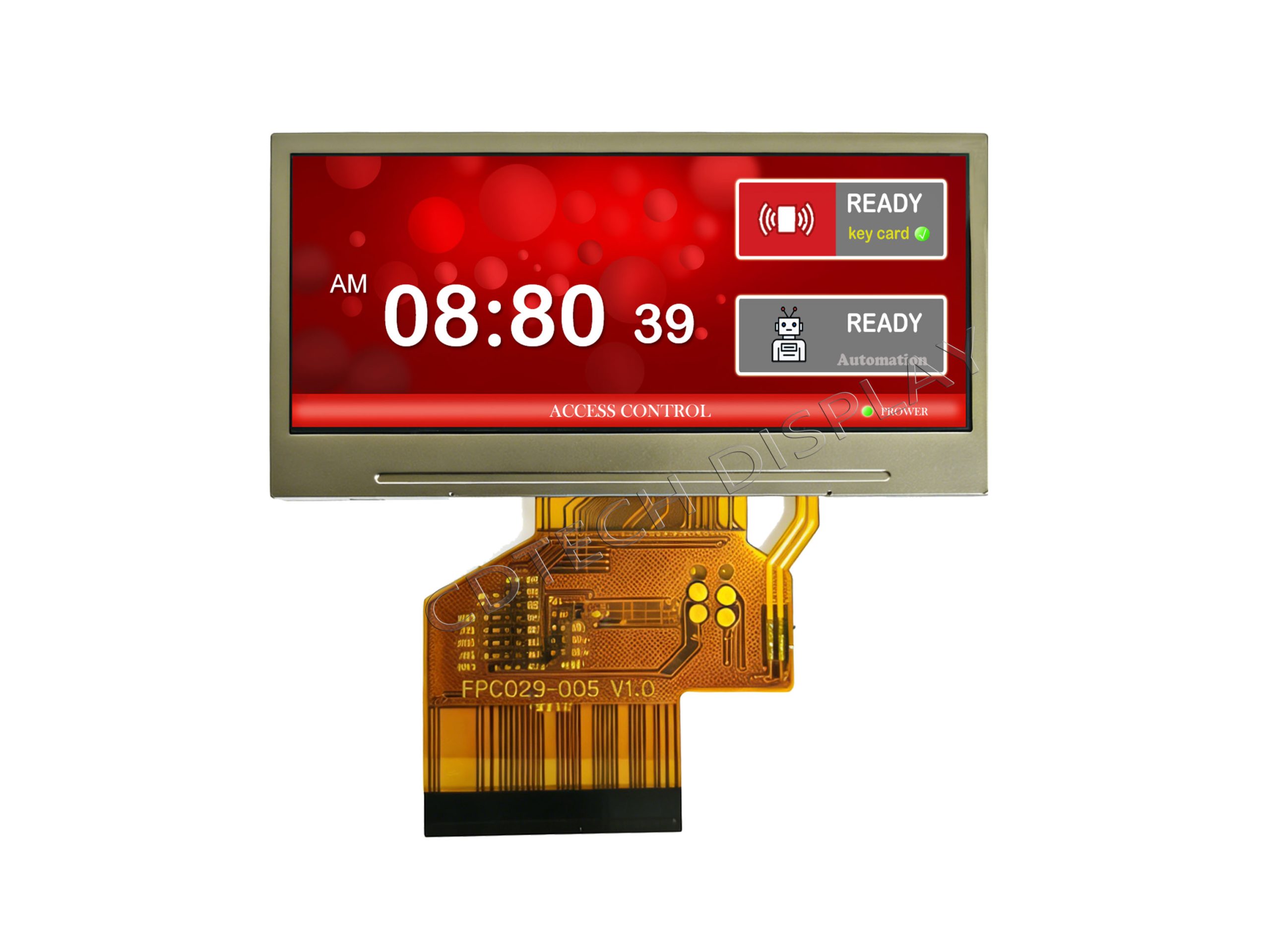

S029HQ05ES
-
2.9"丨320 x120 Pixels
-
IPS with All viewing angle
-
None
-
RGB+SPI
-
None
-
-20°C~+70°C
Product Description
Technical Highlight
Based on the proven S029HQ05NS design, this model features an optimized LED arrangement that enhances brightness performance while maintaining efficiency.
Need Higher Brightness?
For outdoor or direct sunlight environments, consider our 1500 nits IPS display for enhanced visibility.
Product Specification
| LCD Size | 2.9 inch |
| LCD Resolution | 320 x 120pixels |
| LCD Active Area | 70.08 x 26.28 (mm) |
| LCD Luminance | 1000nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | RGB+SPI |
| LCD Controller | ST7272A |
| LCD Connection Type | FPC: 54PIN with 0.5 pitch ,Connector (FH12-54S-0.5SH) |
| LCD Backlight Array | 3 Strings with 3 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=50mA，VF=8.1~10.2V |
| LCD Outline Dimension | 76.90 x 38.22 x 3.26 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 76.90 x 38.22 x 3.26 (mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+80°C |
Recommendations for use
-
LCD Customization
In order to meet customers’ needs for a wide range of LCD displays, in addition to the mainstream aspect ratios of 4:3 or 16:9 displays, CDTech can support LCD size customization services, including NRE AA size and OD size.
In addition, CDTech has cutting patent technology, which can cut any size according to customer requirements. Such as 2.9”, 3.9”, 4.6”, 5.8”, 6.5” for bar type displays and 5.0”, 7.5” for square type displays. Bar type displays are perfect for home appliances. Square and circle type displays are suitable for smart homes.
-

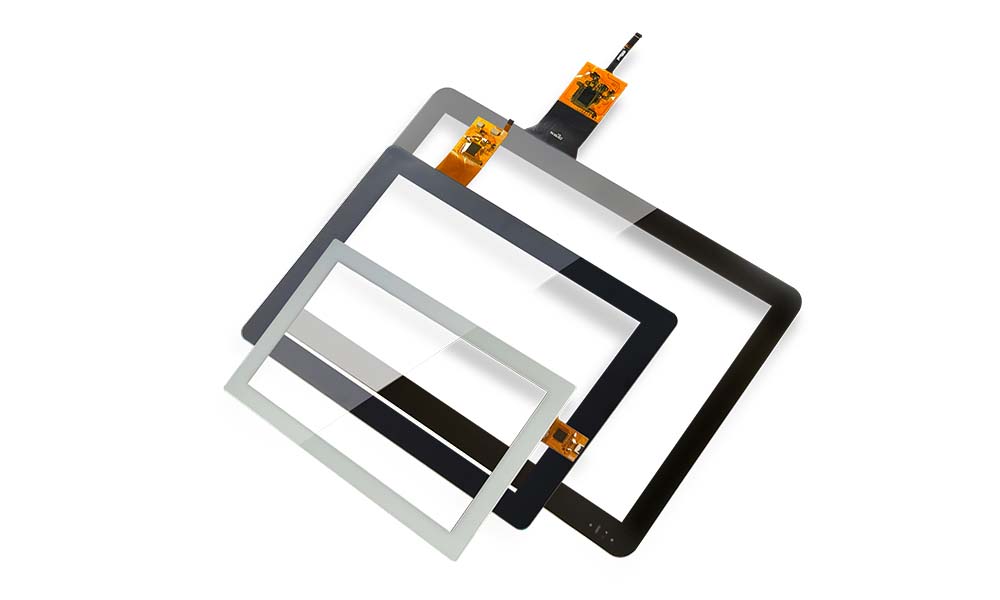

Touch Panel Customization
