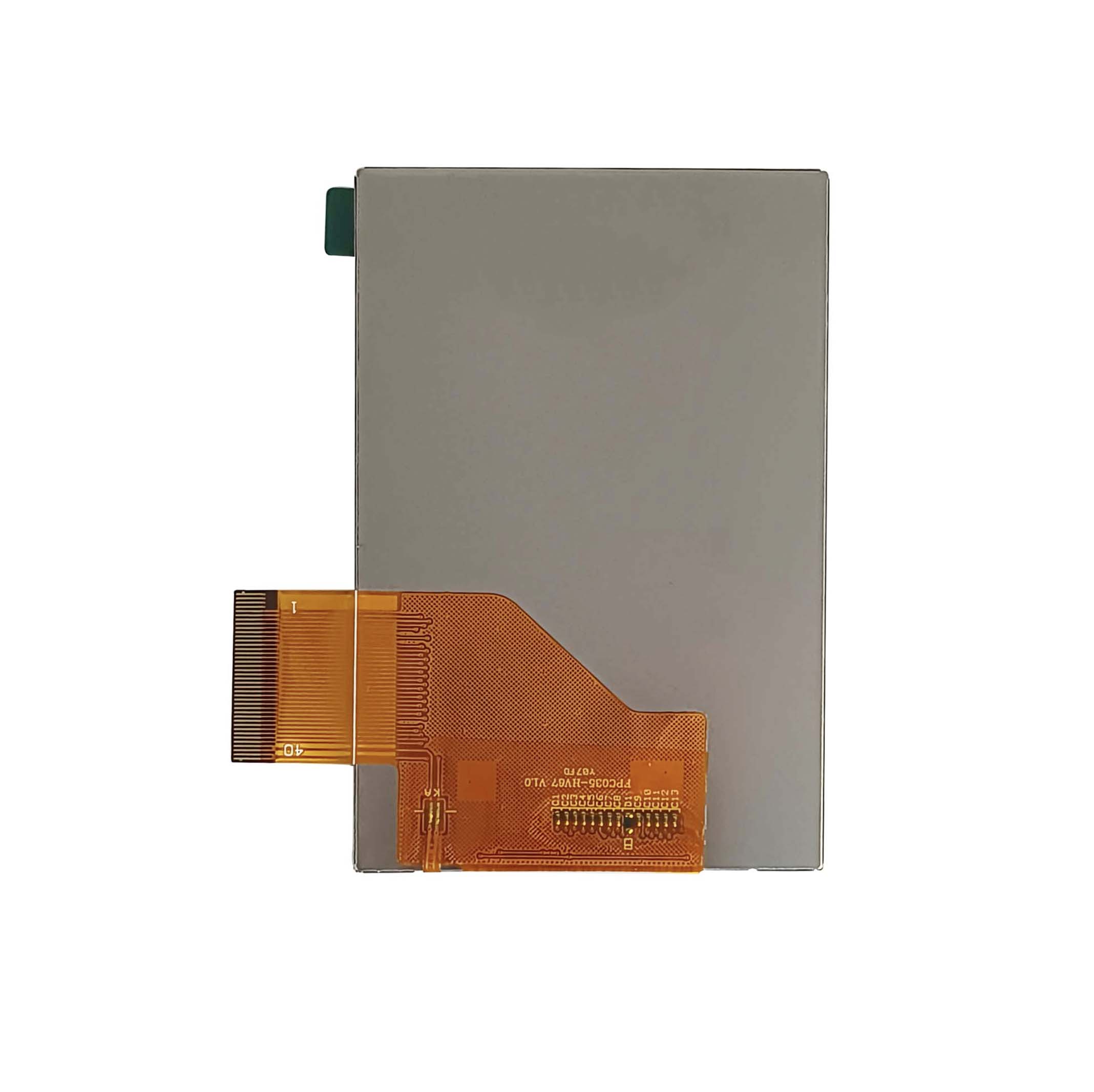

3.5 Inch IPS Industrial LCD Module 320×480 ILI9488 Sunglasses Visible
-
S035CHV95HS-1
-
3.5"丨320 x 480 Pixels
-
IPS with All viewing angle
-
None
-
RGB
-
None
-
-20°C~+70°C
Product Description
Product Specification
| LCD Size | 3.5 inch |
| LCD Resolution | 320*480pixels |
| LCD Active Area | 48.96 x 73.44 (mm) |
| LCD Luminance | 500nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | RGB |
| LCD Controller | ILI9488 |
| LCD Connection Type | FPC: 40PIN with 0.5pitch ,Connector :FH12-40S-0.5SH |
| LCD Backlight Array | 6 Strings with 1 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF =120mA ,VF =5.4~6.8V |
| LCD Outline Dimension | 54.76 x 83.58 x 2.50 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 54.76 x 83.58 x 2.50 (mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+80°C |
