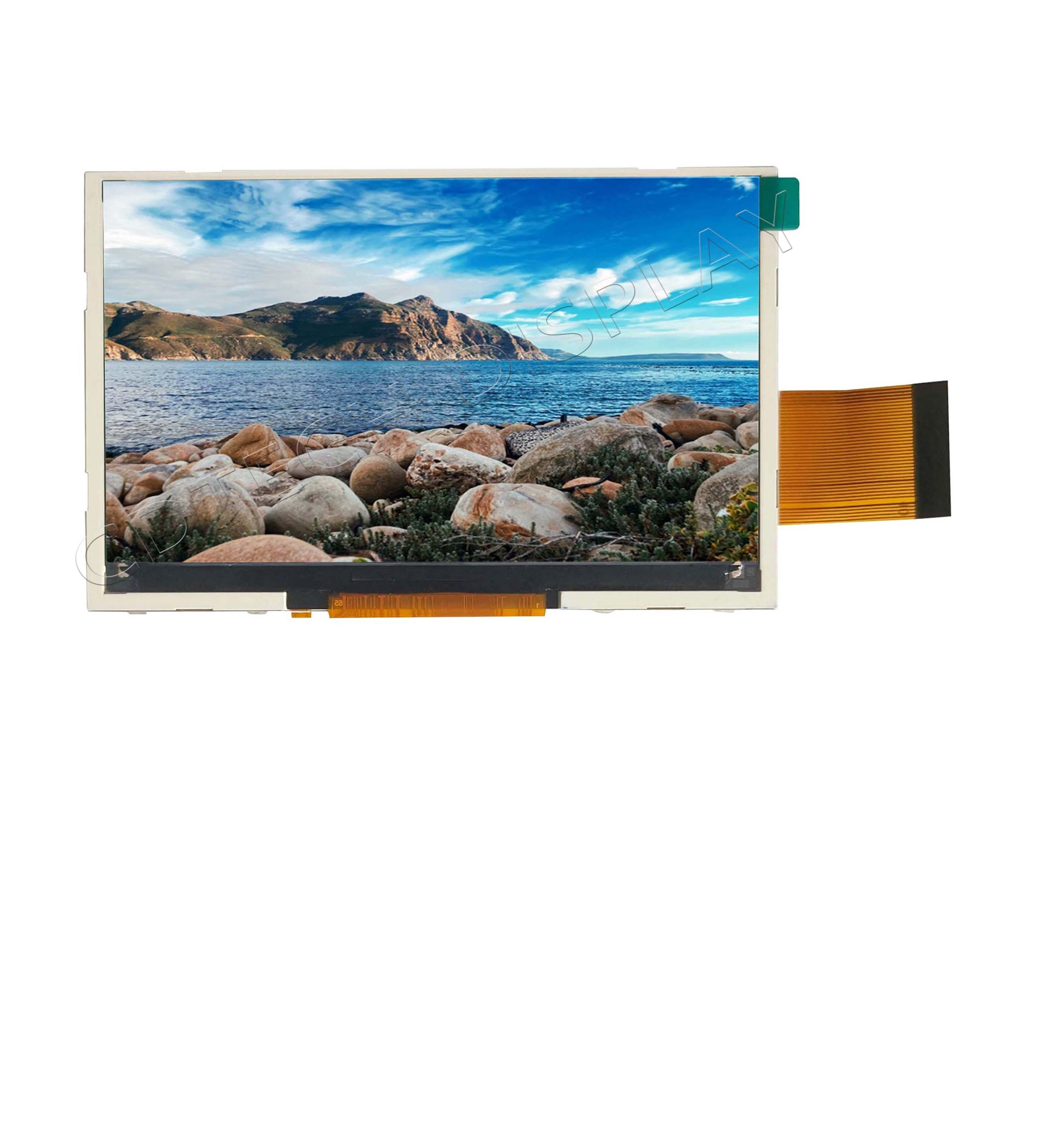

S043BWV100NN front

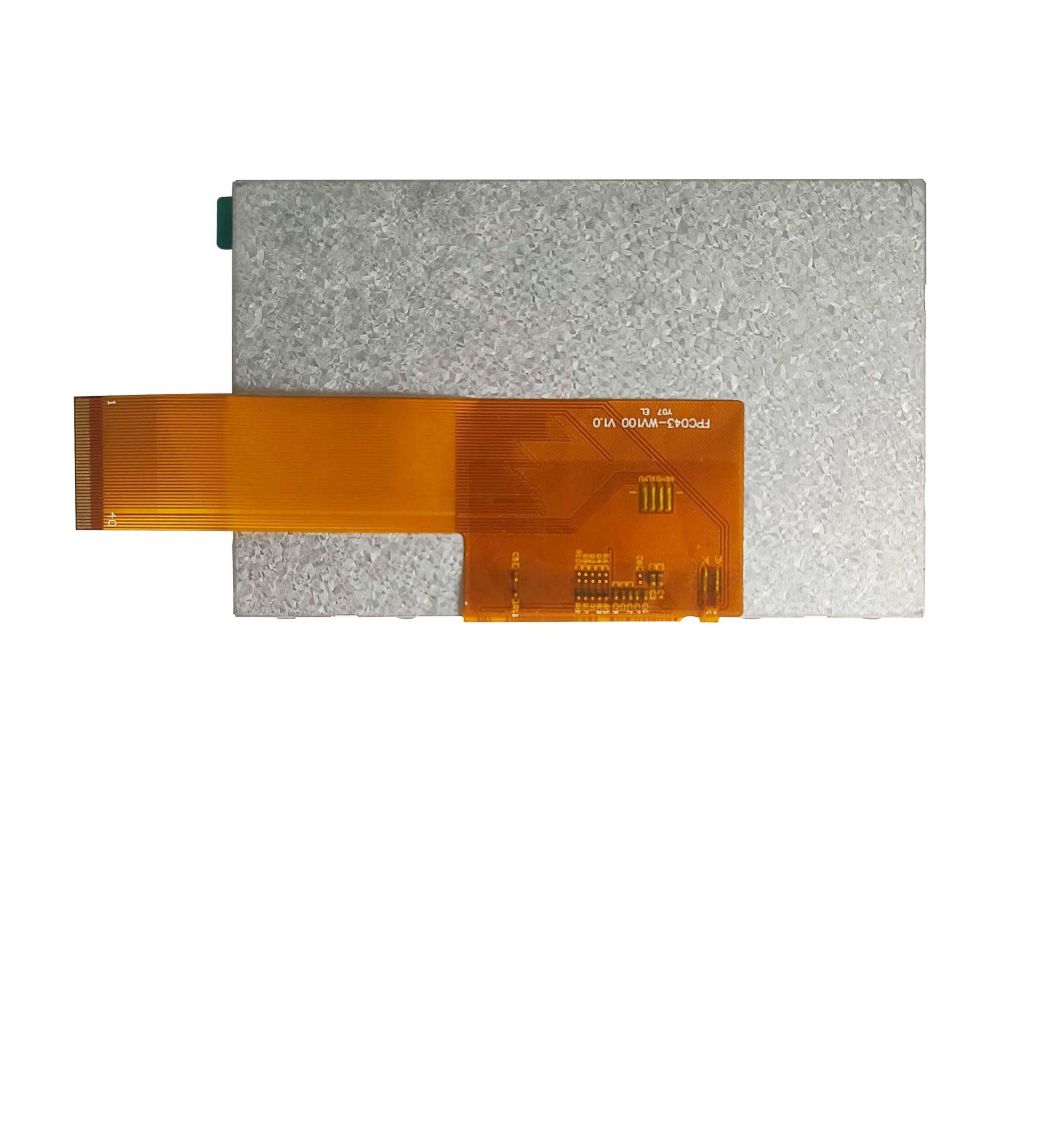

S043BWV100NN back2
S043BWV100NN front
S043BWV100NN back2

4.3″ IPS Display, 800×480, 350 Nits ,RGB Interface

  • S043BWV100NN
  • 4.3"丨800 x 480 Pixels
  • IPS with All viewing angle
  • None
  • RGB
  • None
  • -20°C~+70°C
  • ST7262E43-G4
  • None
  • Specification
Message Email

Product Description



This 4.3 – inch medical display with a TFT liquid crystal module is a great choice for medical use. Here are its main features:


Size Details

It has external dimensions of 105.0066.702.65 and an AA area size of 95.04*53.86. This means it’s small enough to fit in different medical equipment but still has a good – sized screen to show important information clearly.


Great Visuals

The display has a resolution of 800×480, so the pictures and text on it look really sharp. And with IPS wide – viewing – angle technology, you can see the screen clearly from any side, up, down, left, or right, with an 80 – degree viewing angle. This is really useful when different people need to look at the display at the same time.


Bright and Clear Images

With a screen brightness of 350 nits and a contrast ratio of 1200:1, the display shows bright and clear images. Whether it’s in a bright room or a dim one, you can see all the details on the screen easily. The colors are vivid, and it’s easy to tell the difference between different parts of the image.


Reliable Connection and Performance

It uses the ST7262E43 – G4 IC driver chip and supports the RGB interface. This makes sure that the data is sent to the display quickly and smoothly, and the pictures look good all the time. You don’t have to worry about the screen glitching or the data getting lost.


Temperature – Resistant

This display can work in really cold and really hot places. Its operating temperature range is from – 20°C to + 70°C, and it can be stored in temperatures from – 30°C to + 80°C. So, it can be used in different medical environments without any problems.

Product Specification

LCD Size 4.3 inch
LCD Resolution 800 x 480pixels
LCD Active Area 95.04 x 53.86 (mm)
LCD Luminance 350nits
LCD Viewing Angle IPS with All viewing angle
LCD Interface RGB
LCD Controller ST7262E43-G4
LCD Connection Type FPC: 40 PIN with 0.5 pitch,Connector (FH12-40S-0.5SH)
LCD Backlight Array with 10 LED on each string
LCD Backlight Controller None
LCD Backlight Driving IF= 20mA,VF=27~34V
LCD Outline Dimension 105.00 x 66.70 x 2.65 (mm)
CTP structure None
CTP interface None
CTP Controller None
CTP Outline Dimension None
CTP Connection Type None
Product Outline Dimension 105.00 x 66.70 x 2.65 (mm)
Product Operation Temp -20°C~+70°C
Product Storage Temp -30°C~+80°C

Recommendations for use

Quality Standards



CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.

All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.



Project Evaluation



Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors.
Product Design



Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification.
Production Control



All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance.
Production Inspection



All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations.
After Sales Service



We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days.
Product Lifetime



The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details.
Warranty period



The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service.
ESD Protection



All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
