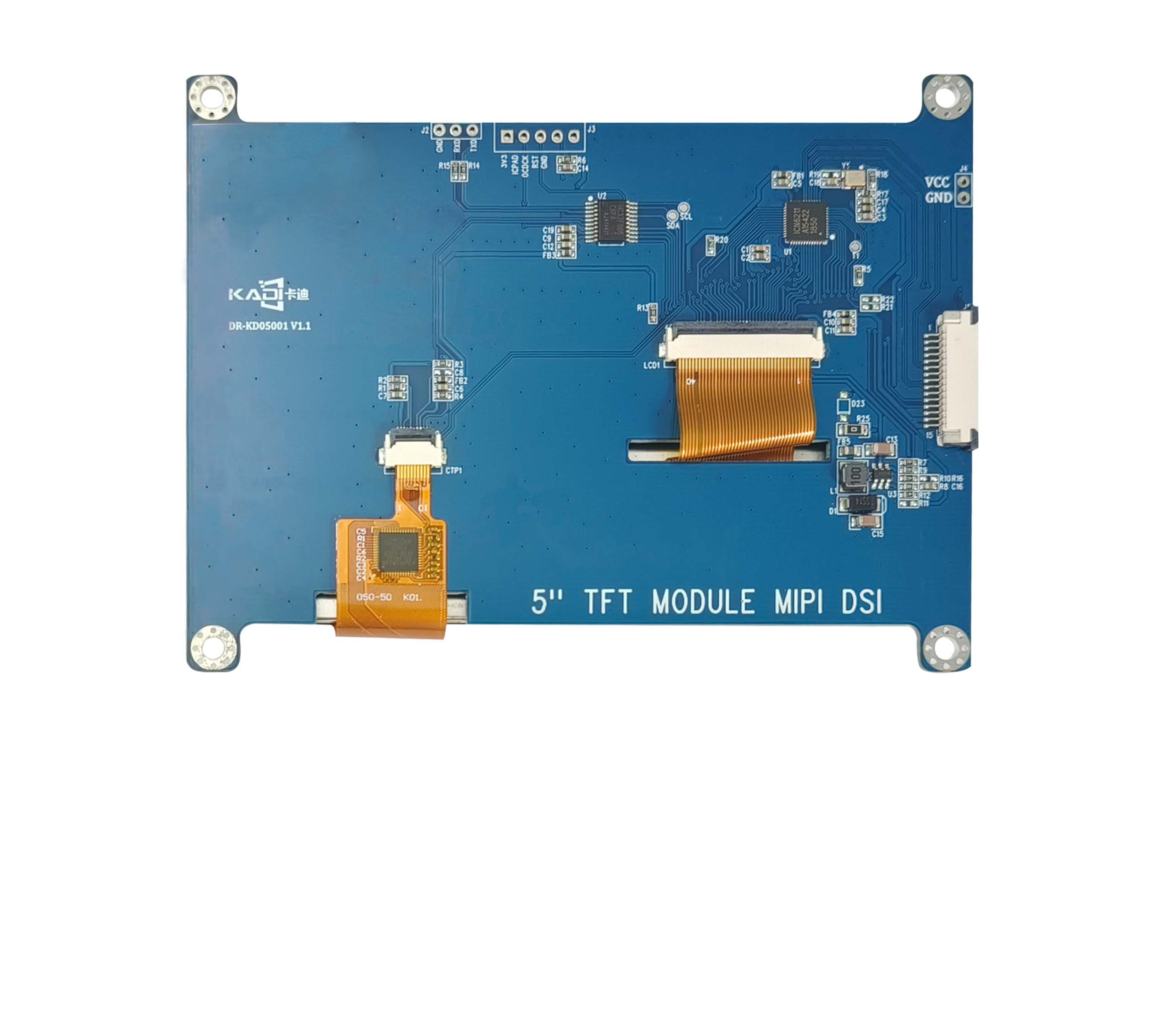

5.0″ TFT LCD Capacitive Touch Panel (Including PCB), 800×480, 400 Nits Brightness, MIPI DSI Interface
-
S050HWV31HS-DC50
-
5.0"丨800 x 480 Pixels
-
IPS with All viewing angle
-
Capactive with I2C interface
-
MIPI
-
I2C
-
-20°C~+70°C
Product Description
Product Specification
| LCD Size | 5.0 inch |
| LCD Resolution | 800 x 480pixels |
| LCD Active Area | 108.00 x 64.80 (mm) |
| LCD Luminance | 400nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | MIPI |
| LCD Controller | ICN6211 |
| LCD Connection Type | FPC: 40 PIN with 0.5 pitch,Connector (FH12-40S-0.5SH) |
| LCD Backlight Array | 2 Strings with 6 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=40mA，VF=19.2~1.2V |
| LCD Outline Dimension | 120.70 x 75.80 x 2.95 (mm) |
| CTP structure | G+G |
| CTP interface | IIC |
| CTP Controller | GT911 |
| CTP Outline Dimension | 120.70 x 76.30 x 1.10 (mm) |
| CTP Connection Type | FPC: 10 PIN with 0.5 pitch |
| Product Outline Dimension | 120.70 x 76.30 x 9.02 (mm) |
| Product Operation Temp | -20℃ ~ 70℃ |
| Product Storage Temp | -30℃ ~ 80℃ |
