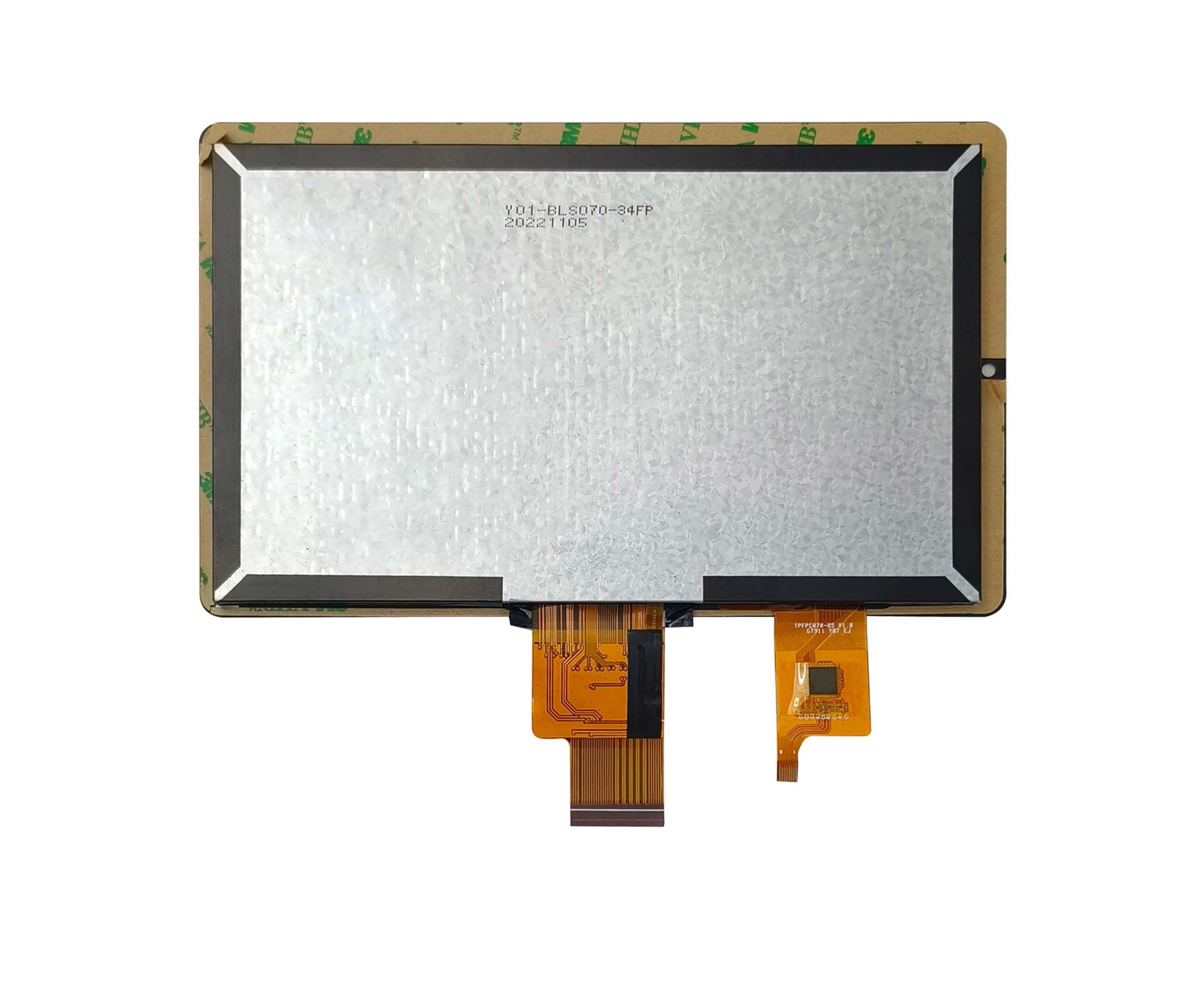

S070BWS45FP-FC133 bm2
S070BWS45FP-FC133 front
S070BWS45FP-FC133 bm2

7.0-inch High Brightness PCAP IPS Display (1024×600)

  • S070BWS45FP-FC133
  • 7.0"丨1024 x 600Pixels
  • IPS with All viewing angle
  • Capactive with I2C interface
  • LVDS
  • I2C
  • -20°C~+70°C
  • EK79001HN
    |EK73215BCGA
  • GT911
  • Specification
Message Email

Product Description



This 7.0-inch high-brightness industrial LCD screen is designed for outdoor and industrial use, featuring a 1000-nit panel with full-lamination projected capacitive touch technology to ensure sunlight readability. Its 85° wide-view IPS panel and 1024×600 resolution deliver clear visuals from all angles, while 40PIN LVDS/I2C interfaces and multi-point touch enable seamless integration and intuitive operation.



Measuring 154.21×85.92mm (AA area) and 175.80×109.24×7.56mm (enclosure), the display includes a customizable glass cover with a transparent hole. Built with dust and moisture resistance via full lamination, it withstands harsh conditions for reliable performance.



With a wide operating temperature range of -20°C to +70°C, this durable screen is ideal for extreme environments. It excels in heavy machinery like excavators, industrial equipment, and outdoor terminals, offering high visibility, stability, and ruggedness for demanding applications.

Product Specification

LCD Size 7.0 inch
LCD Resolution 1024x 600pixels
LCD Active Area 154.21 x 85.92 (mm)
LCD Luminance 1000nits
LCD Viewing Angle IPS with All viewing angle
LCD Interface LVDS
LCD Controller EK79001HN+EK73215BCGA
LCD Connection Type FPC: 40PIN with 0.5 pitch,Connector (FH12-40S-0.5SH)
LCD Backlight Array 10 Strings with 3 LED on each string
LCD Backlight Controller None
LCD Backlight Driving IF=300mA , VF=8.1~10.2V
LCD Outline Dimension 164.26 x 99.26 x 5.46 (mm)
CTP structure G+G
CTP interface I2C
CTP Controller GT911
CTP Outline Dimension 175.80 x 109.24x 1.10 (mm)
CTP Connection Type FPC: 8PIN with 0.5 pitch
Product Outline Dimension 175.80 x 109.24x 7.56 (mm)
Product Operation Temp -20°C~+70°C
Product Storage Temp -30°C~+80°C

Recommendations for use

Related Products

Quality Standards



CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.

All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.



Project Evaluation



Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors.
Product Design



Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification.
Production Control



All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance.
Production Inspection



All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations.
After Sales Service



We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days.
Product Lifetime



The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details.
Warranty period



The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service.
ESD Protection



All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
