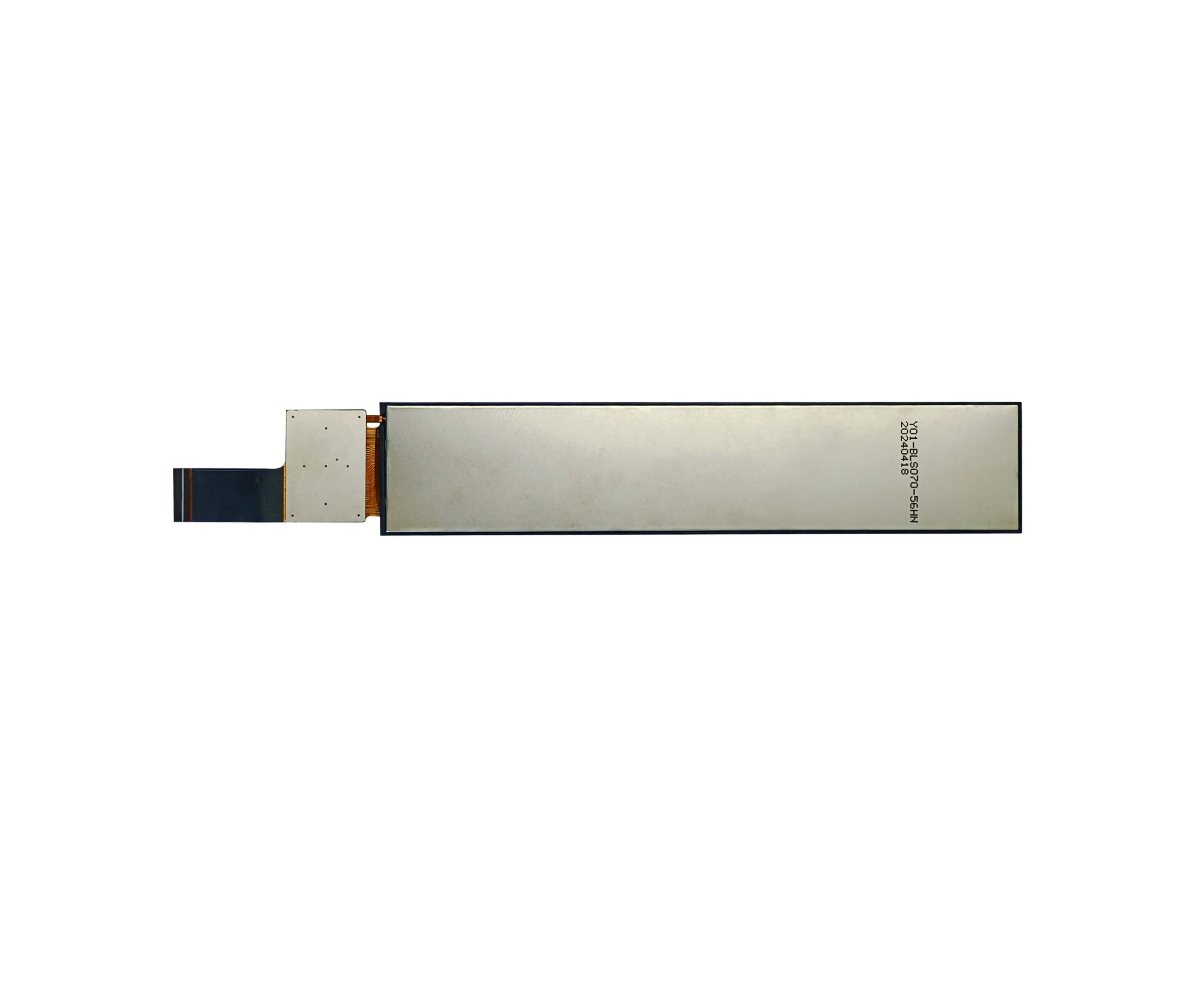

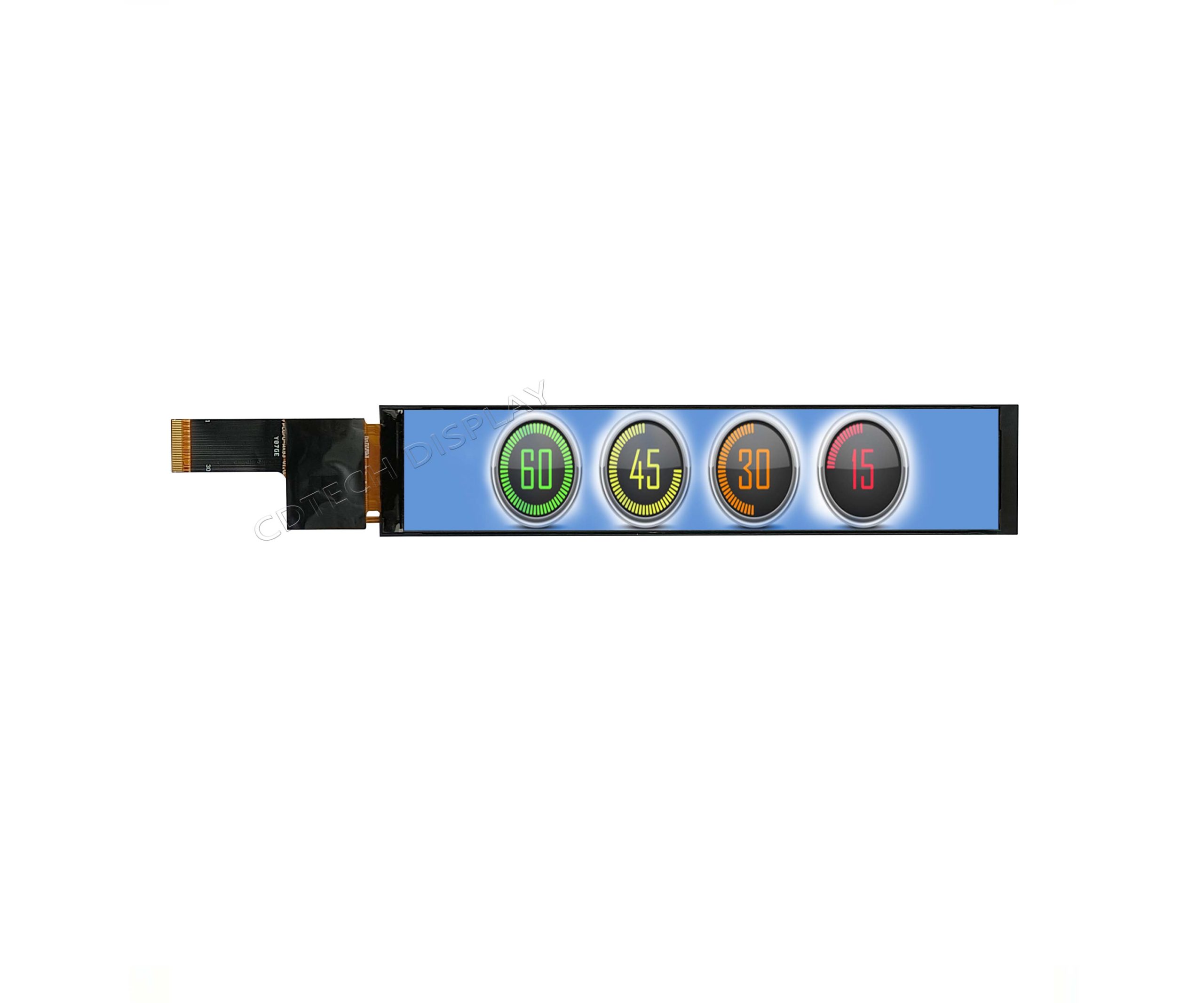

7.0" IPS MIPI Display, Bar Type TFT 280 x 1424, 550 Nits

7.0″ IPS MIPI Display, Bar Type TFT 280 x 1424, 550 Nits

Model :
S070HWX161HN
Size :
7.0"丨280 x 1424Pixels
Display Type :
IPS with All viewing angle
Touch Panel :
None
LCD interface :
MIPI
CTP interface :
None
Operation Temp :
-20°C~+70°C
Driver IC :
OTA7290N
CTP Controller :
None
Resources :
Specification

Message Email

Product Description

The 7 – inch IPS bar LCD display is a high – performance offering in the display domain. It features a 280×1424 resolution for sharp visuals, 550cd/m² brightness, and a 1000:1 high contrast ratio, ensuring vivid colors and clear images even in difficult lighting.

The AA area size of this display is 33.60×170.88mm, while its outline dimensions are 38.20×186.62×3.50mm. These dimensions make it suitable for a wide range of applications with specific space requirements.

Powered by the OTA7290N – C driver IC, it supports the MIPI interface for high – speed data transfer. The FPC comes with EMI shielding film, guaranteeing stable operation and protection from external interference.

This versatile display has broad applications. In home appliances and audio, it improves user interfaces. In medical devices like syringe and infusion pumps, its precision and clarity are vital. Its compact and flexible design also suits automotive uses, such as in car pedals for added functionality.

Product Specification

LCD Size	7.0 inch
LCD Resolution	280 x 1424pixels
LCD Active Area	33.60 x 170.88 (mm)
LCD Luminance	550nits
LCD Viewing Angle	IPS with All viewing angle
LCD Interface	MIPI
LCD Controller	OTA7290N-C
LCD Connection Type	FPC: 30PIN with 0.5 pitch,Connector:FH12-30S-0.5HS(55)
LCD Backlight Array	2 Strings with 8 LED on each string
LCD Backlight Controller	None
LCD Backlight Driving	IF=40mA , VF= 21.6~27.2V
LCD Outline Dimension	38.20 x 186.62 x 3.50 (mm)
CTP structure	None
CTP interface	None
CTP Controller	None
CTP Outline Dimension	None
CTP Connection Type	None
Product Outline Dimension	38.20 x 186.62 x 3.50 (mm)
Product Operation Temp	-20°C~+70°C
Product Storage Temp	-30°C~+80°C

Recommendations for use

LCD Customization

CDTech patented cutting technology supports LCD outline dimension customization, including bar type, square, and circular, to meet different customers’ special requirements on Active Area and resolution of LCD products.
Touch Panel Customization

There are three methods of bonding for LCD with touchscreen/coverglass. CDTech can support Air/OCA/LOCA option. For smart home, in-vehicle and outdoors projects, more customers prefer the OCA bonding option. LOCA is suitable for LCD with bezel on uneven surface, and can be repaired, and widely used in large panels. Also, deal with filling gaps because it is a liquid.
Usage Guidelines

CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.

Quality Standards

CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.

All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.

Project Evaluation	Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors.
Product Design	Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification.
Production Control	All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance.
Production Inspection	All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations.
After Sales Service	We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days.
Product Lifetime	The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details.
Warranty period	The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service.
ESD Protection	All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
