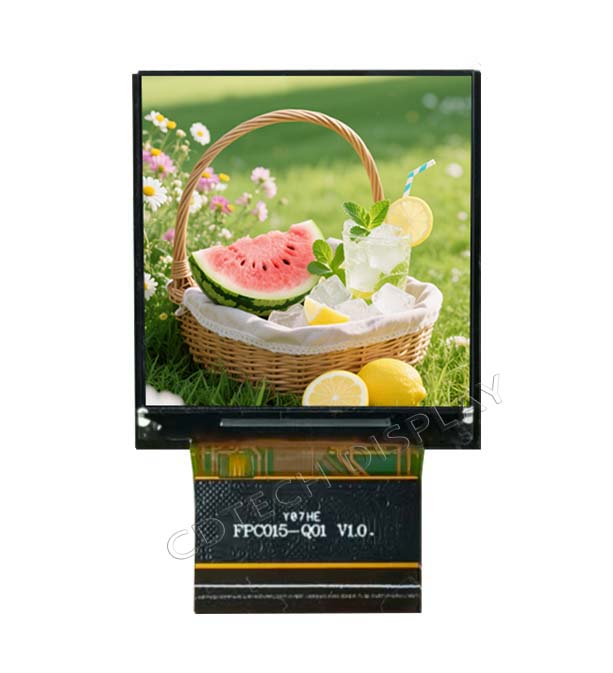

1.5″ IPS color LCD 240×240 Square Display Screen with ST7789T3 controller
-
S015HQ02HN
-
1.5"丨240 x 240 Pixels
-
IPS with All viewing angle
-
None
-
SPI+RGB
-
None
-
-20°C~+70°C
Product Description
Key Features
• 1.5-inch square IPS TFT LCD display
• 240 × 240 resolution with 262K colors
• 500-nit brightness and 600:1 contrast ratio
• ST7789T3 driver IC
• SPI interface for low pin-count embedded design
• Optional RGB interface support
• 15ms fast response time
• EMI-shielded FPC for stable signal transmission
• Operating temperature: −20°C to +70°C
Typical Applications
This small-size TFT LCD display is widely used in:
• Wearable devices and smartwatches
• Handheld instruments
• IoT devices and smart home controllers
• Embedded systems (STM32, Arduino, ESP32)
• Portable medical devices
• Compact UI display interfaces
Engineering Notes
The ST7789T3 driver IC is widely supported by open-source libraries, enabling fast integration with popular MCU platforms such as Arduino and ESP32.
The SPI interface allows simplified hardware design with fewer pins, making this display ideal for compact and space-constrained applications.
Product Specification
| LCD Size | 1.5 inch |
| LCD Resolution | 240 x 240pixels |
| LCD Active Area | 27.72 x 27.72 (mm) |
| LCD Luminance | 500nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | SPI+RGB |
| LCD Controller | ST7789T3 |
| LCD Connection Type | FPC: 40PIN with 0.5 pitch , Connector (FH12-40S-0.5SH) |
| LCD Backlight Array | 3 Strings with 1 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=60mA，VF=2.7~3.4V |
| LCD Outline Dimension | 30.12 x 33.12 x 2.03 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 31.42 x 34.00 x 2.03 (mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+80°C |
Recommendations for use
-
LCD Customization
Support customizing different FPC sizes, flexible cables or FPCB, and selecting different connectors to meet customers’ overall machine structural design requirements; it can also support other differentiated designs, such as anti-static designs, EMI, EMC, ESD, PWM function design, etc., help customers improve product performance, to meet medical or Automative application EMI , ESD and other safety requirements.
-
Touch Panel Customization
Support customizing different touch ICs solutions, to reach a variety of touch functions, meeting different customer product needs, such as supporting thick cover touch & operation with water operations for industrial control or outdoor equipment, medical glove touch for medical equipment, and tablets. Active pen or passive pen touch for rugged tablet, and many other different touch functions;
-
Usage Guidelines
CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.
Quality Standards
CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.
All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.
| Project Evaluation |
Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors. |
| Product Design |
Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification. |
| Production Control |
All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance. |
| Production Inspection |
All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations. |
| After Sales Service |
We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days. |
| Product Lifetime |
The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details. |
| Warranty period |
The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service. |
| ESD Protection |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
-
