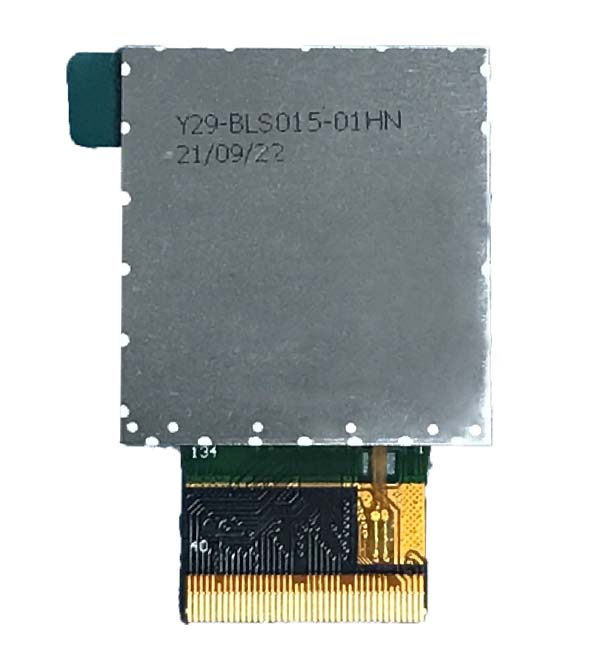

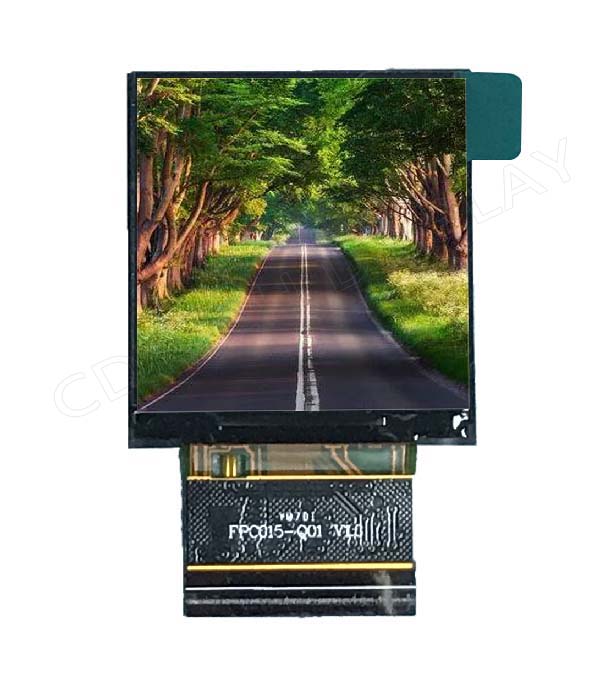

1.5″ IPS Display, 240×240, 500 Nits without Touch Panel
-
S015HQ01HN
-
1.5"丨240 x 240 Pixels
-
IPS with All viewing angle
-
None
-
SPI+RGB
-
None
-
-20°C~+70°C
Product Description
This 1.5 inch IPS TFT LCD display module is designed as a standard solution for embedded systems requiring stable performance and cost efficiency. Featuring a 240×240 resolution and ST7789V2 driver IC, it provides reliable display output with simplified integration. The dual SPI and RGB interface ensures compatibility across a wide range of hardware platforms, making it ideal for indoor and general-purpose applications.
Key Features
- Cost-Effective Standard Display Solution,Designed for projects requiring stable performance and optimized BOM cost.
- Balanced Brightness and Power Consumption,500 nits brightness with 60mA backlight current provides a practical balance for indoor applications.
- Dual Interface Design (SPI + RGB),Supports both SPI serial and RGB parallel interfaces, enabling flexible integration with MCU platforms.
- Mature ST7789V2 Ecosystem,Widely supported controller reduces development complexity and speeds up project deployment.
Typical Applications
- Indoor IoT devices
- Smart home control panels
- Entry-level wearable displays
- Portable embedded systems
Engineering Notes
- Backlight requires constant current driver (60mA)
- Recommended for indoor environments (<500 lux)
- Compatible with STM32 / ESP32 / Arduino platforms
- Suitable for UI refresh rates below 30 FPS
FAQ
Q: Is this display suitable for outdoor use?
A: It is recommended for indoor environments. For outdoor use, choose the 1000 nits version.
Q: What driver is required?
A: A constant current driver of 60mA is recommended for stable backlight performance.
Product Specification
| LCD Size | 1.5 inch |
| LCD Resolution | 240 x 240pixels |
| LCD Active Area | 27.72 x 27.72 (mm) |
| LCD Luminance | 500nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | SPI+RGB |
| LCD Controller | ST7789V2 |
| LCD Connection Type | FPC: 40PIN with 0.5 pitch |
| LCD Backlight Array | 3 Strings with 1 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=60mA，VF=2.7~3.4V |
| LCD Outline Dimension | 30.12 x 33.12 x 2.03 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 31.42 x 34.00 x 2.03 (mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+80°C |
