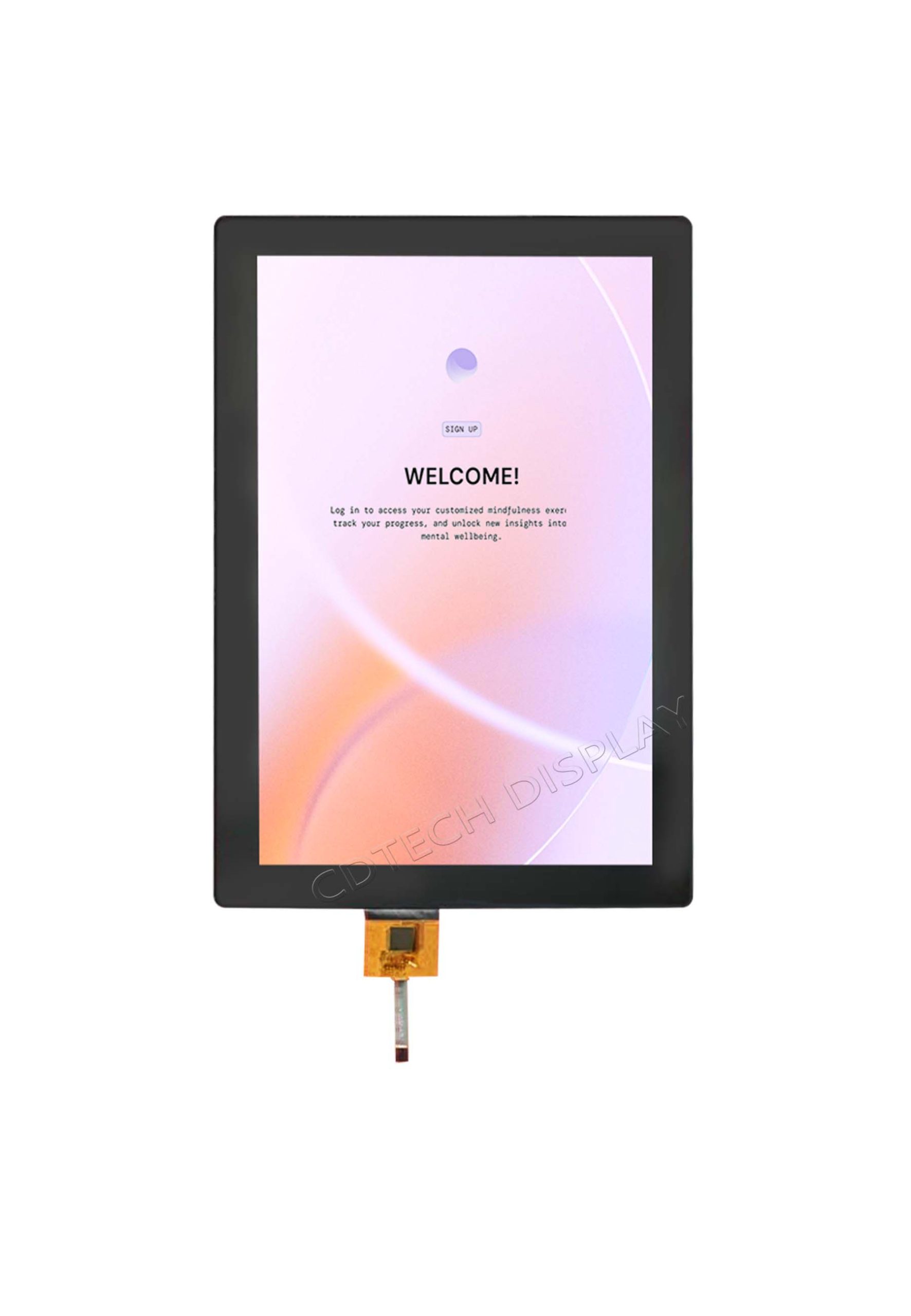

10.1″ Vertical IPS TFT LCD 800×1280 with 10-Point Capacitive Touch & AG Glass
-
S101BWX49EP-FC99-AG
-
10.1"丨800 x 1280 Pixels
-
IPS with All viewing angle
-
Capactive with l²C interface
-
MIPI
-
IIC
-
-20°C~+70°C
Product Description
Product Specification
| LCD Size | 10.1 inch |
| LCD Resolution | 800 x 1280pixels |
| LCD Active Area | 135.36 x 216.58 (mm) |
| LCD Luminance | 600nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | MIPI |
| LCD Controller | ILI9881C |
| LCD Connection Type | FPC: 40PIN with 0.5 pitch, Connector : FH34SRJ-40S-0.5SH(50) |
| LCD Backlight Array | 10 Strings with 3 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=200mA，VF=16.2~20.4V |
| LCD Outline Dimension | 143.00 x228.60 x 2.60 (mm) |
| CTP structure | G+G |
| CTP interface | IIC |
| CTP Controller | GT928 |
| CTP Outline Dimension | 166.00 x 247.00 x 2.00 (mm) |
| CTP Connection Type | FPC: 6PIN with 0.5 pitch |
| Product Outline Dimension | 166.00 x 247.00 x 4.85(mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+70°C |
