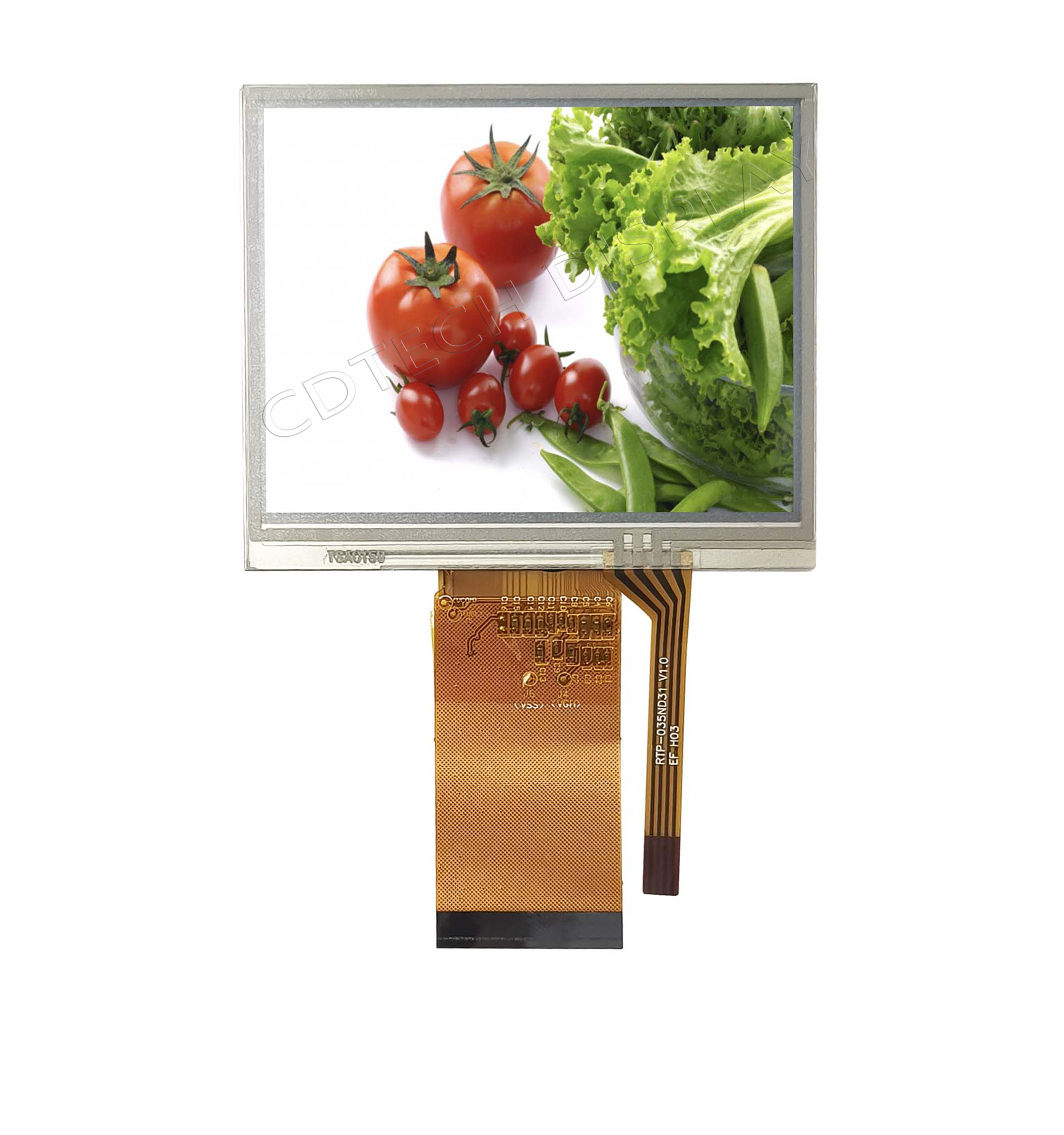

S035GQ86NS-DR31 sy

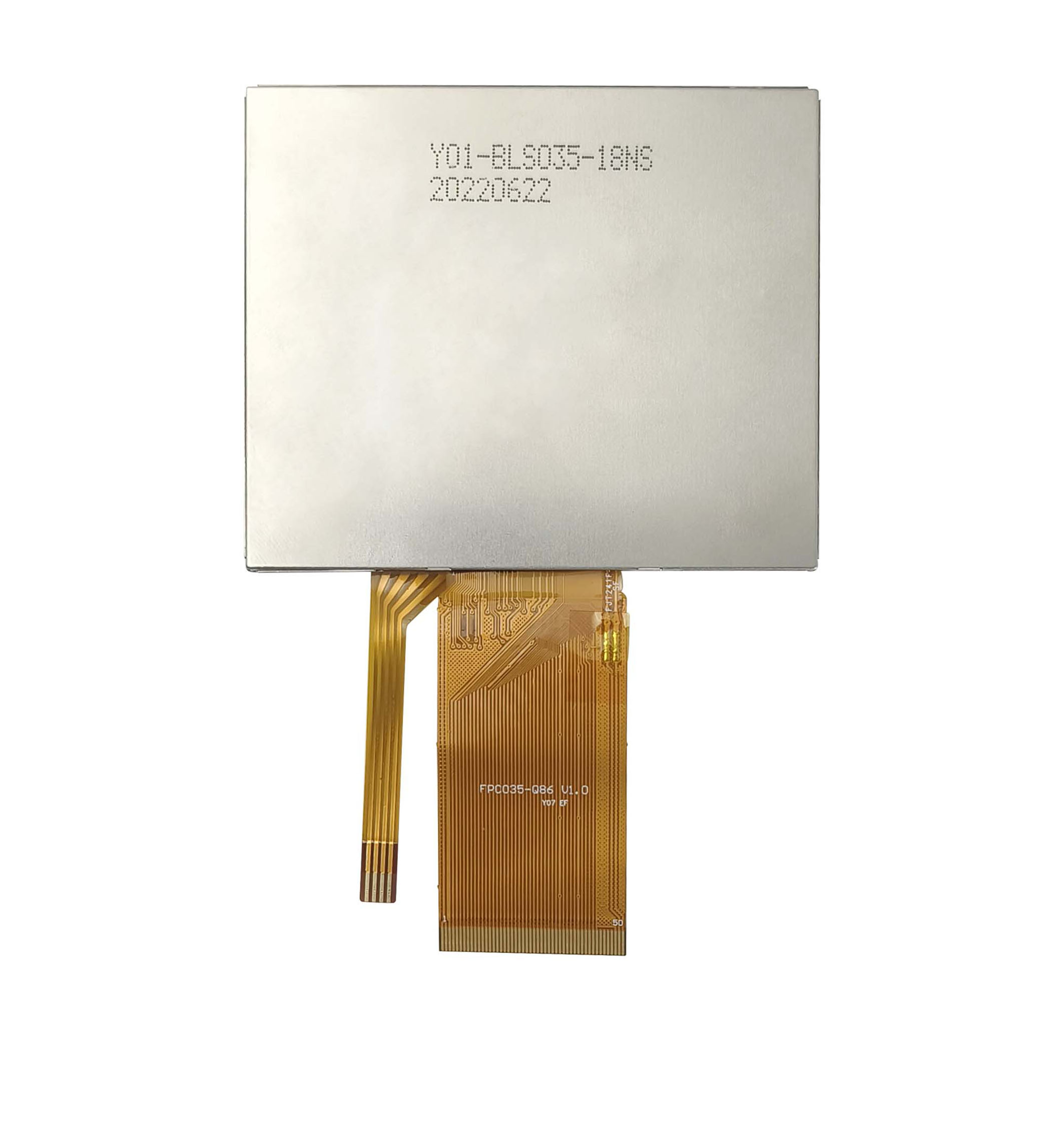

S035GQ86NS-DR31 bm
S035GQ86NS-DR31 sy
S035GQ86NS-DR31 bm

3.5″ TN Resistive Panel, 320×240, 250 Nits, RGB interface

  • S035GQ86NS-DR31
  • 3.5"丨320 x 240 Pixels
  • TN with 12 o'clock
  • Resistive Touch Panel
  • RGB
  • RTP 4Lines
  • -20°C~+70°C
  • SSD2119MIZF
  • None
  • Specification
Message Email

Product Description



This 3.5-inch TFT display integrates a 4-wire resistive touch panel and utilizes TN (Twisted Nematic) liquid crystal technology. It features a standard 12 o’clock viewing angle, while grayscale inversion occurs at the 6 o’clock viewing angle. The physical resolution reaches 320×240 pixels (QVGA level), enabling clear display of graphics and text.


With a typical brightness value of 250 cd/m², the display ensures excellent visibility in regular indoor environments. The response time is 15 ms, effectively reducing motion blur in dynamic images.


Equipped with the high-performance SSD2119MIZF driver chip, it supports the RGB interface standard. It can flexibly adapt to multiple data transmission protocols, including parallel 6800, parallel 16-bit 8080, and 18-bit + 3-wire SPI, meeting the diverse interface requirements of different master control platforms.


In terms of electrical performance, the product operates within a temperature range of -20°C to +70°C, demonstrating good environmental adaptability and stable operation in wide-temperature working scenarios.


Thanks to its reliable performance and rich interface compatibility, this display is suitable for professional fields such as medical equipment, industrial automation control, and portable electronic devices, providing users with stable and efficient human-machine interaction display solutions.



Product Specification

LCD Size 3.5 inch
LCD Resolution 320*240pixels
LCD Active Area 70.08 x 52.56 (mm)
LCD Luminance 250nits
LCD Viewing Angle TN with 12 o'clock
LCD Interface RGB
LCD Controller SSD2119MIZF
LCD Connection Type FPC: 50PIN with 0.5 pitch ,Connector (FH12-50S-0.5SH）
LCD Backlight Array with 6 LED on each string
LCD Backlight Controller None
LCD Backlight Driving IF =20mA ,VF =16.2~20.4V
LCD Outline Dimension 76.84 x 63.84 x 3.27 (mm)
CTP structure RTP
CTP interface RTP 4Lines
CTP Controller None
CTP Outline Dimension 76.50 x 63.50 x 1.20 (mm)
CTP Connection Type None
Product Outline Dimension 76.84 x 63.84 x 4.47 (mm)
Product Operation Temp -20°C~+70°C
Product Storage Temp -20°C~+80°C

Recommendations for use

Related Products

Quality Standards



CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.

All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.



Project Evaluation



Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors.
Product Design



Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification.
Production Control



All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance.
Production Inspection



All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations.
After Sales Service



We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days.
Product Lifetime



The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details.
Warranty period



The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service.
ESD Protection



All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
