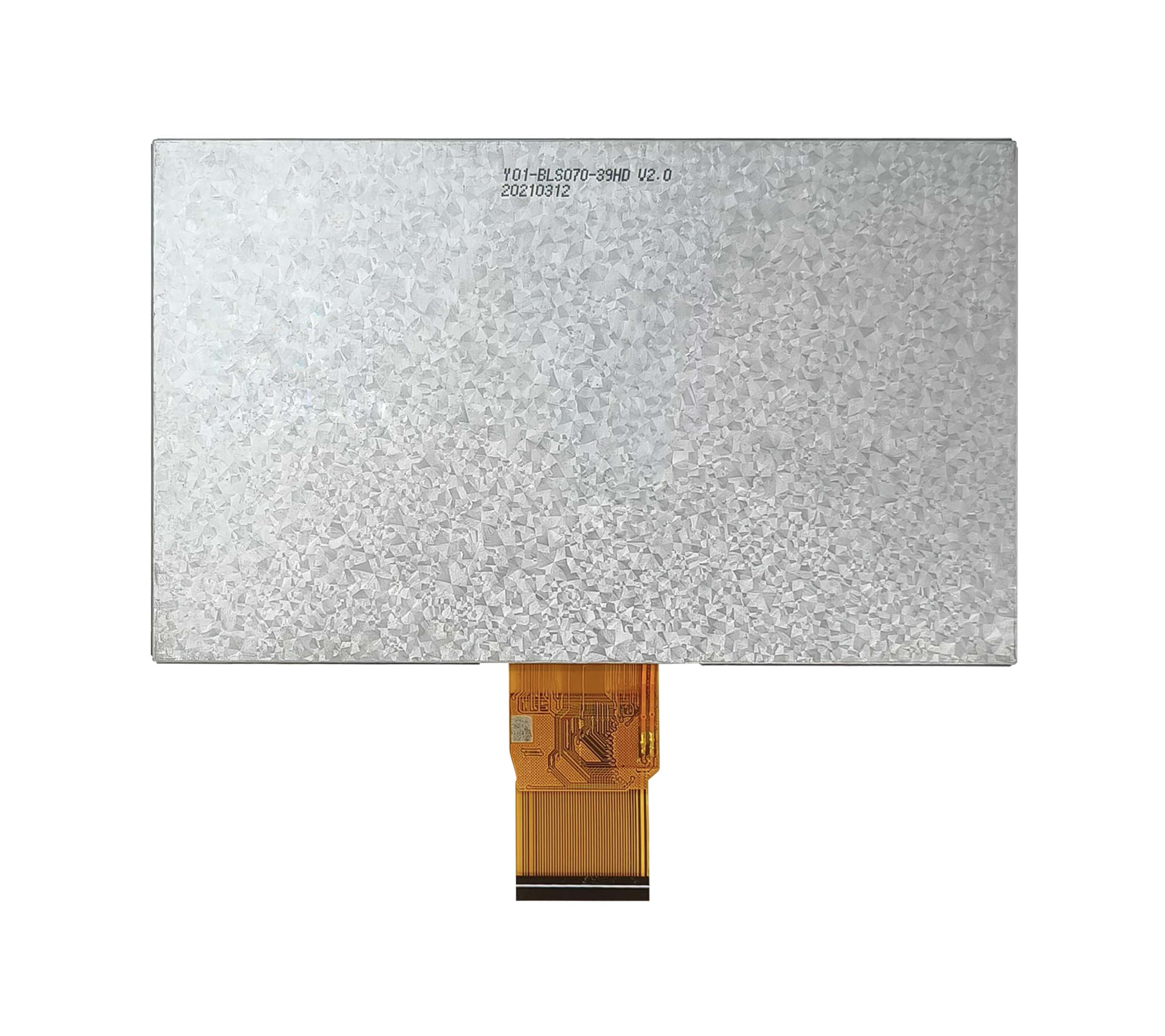

S070BWS65HD BM
S070BWS65HD sy
S070BWS65HD BM

7.0″ IPS Display, 1024×600, 600 Nits without Touch Panel

  • S070BWS65HD
  • 7.0"丨1024 x 600Pixels
  • IPS with All viewing angle
  • None
  • RGB
  • None
  • -20°C~+70°C
  • HX8282-A11
    |HX8696-A01
  • None
  • Specification
    |2D Drawing
Message Email

Product Description



The S070BWS65HD is a color liquid crystal display specifically designed for industrial applications, featuring outstanding performance and adaptability.


  • High – Definition Display: With a resolution of 1024×600 pixels, it can clearly present various images and text information. Even complex industrial flowcharts and high – precision equipment operation data charts can be accurately displayed, meeting the high – demand for detailed display in industrial scenarios.



  • Full – Viewing – Angle Technology: It adopts IPS full – viewing – angle technology with a 85 – degree viewing angle. When multiple people view the screen simultaneously, the colors of the screen remain true and the images do not have color distortion from any direction.



  • High Brightness and Contrast: The typical value of the backlight brightness is 600 nits. The screen content remains clearly visible even in outdoor industrial environments with direct strong sunlight or in large workshops with complex lighting conditions. The typical contrast ratio is 800:1, making the bright parts of the picture brighter and the dark parts darker, with distinct levels. This helps operators quickly identify key information on the screen and reduces operational errors.



  • Universal Interface: It supports a 50 – pin RGB interface, which has strong universality. It can be conveniently connected to various industrial control devices and signal sources, ensuring stable signal transmission and reducing the difficulty of system integration.



  • Wide – Temperature Adaptability: The operating temperature ranges from – 20°C to + 70°C, and the storage temperature ranges from – 30°C to + 80°C. It can operate stably in extremely cold or hot environments, as well as in scenarios with drastic temperature changes, ensuring the continuity of industrial production.

Product Specification

LCD Size 7.0 inch
LCD Resolution 1024x 600pixels
LCD Active Area 154.21 x 85.92 (mm)
LCD Luminance 600nits
LCD Viewing Angle IPS with All viewing angle
LCD Interface RGB
LCD Controller HX8282-A11 +HX8696-A01
LCD Connection Type FPC: 50PIN with 0.5 pitch ,Connector (FH12-50S-0.5SH)
LCD Backlight Array 11 Strings with 3 LED on each string
LCD Backlight Controller None
LCD Backlight Driving IF=220mA , VF=9.6~1.2V
LCD Outline Dimension 165.00 x 100.00 x 5.70 (mm)
CTP structure None
CTP interface None
CTP Controller None
CTP Outline Dimension None
CTP Connection Type None
Product Outline Dimension 165.00 x 100.00 x 5.70 (mm)
Product Operation Temp -20°C~+70°C
Product Storage Temp -30°C~+80°C

Recommendations for use

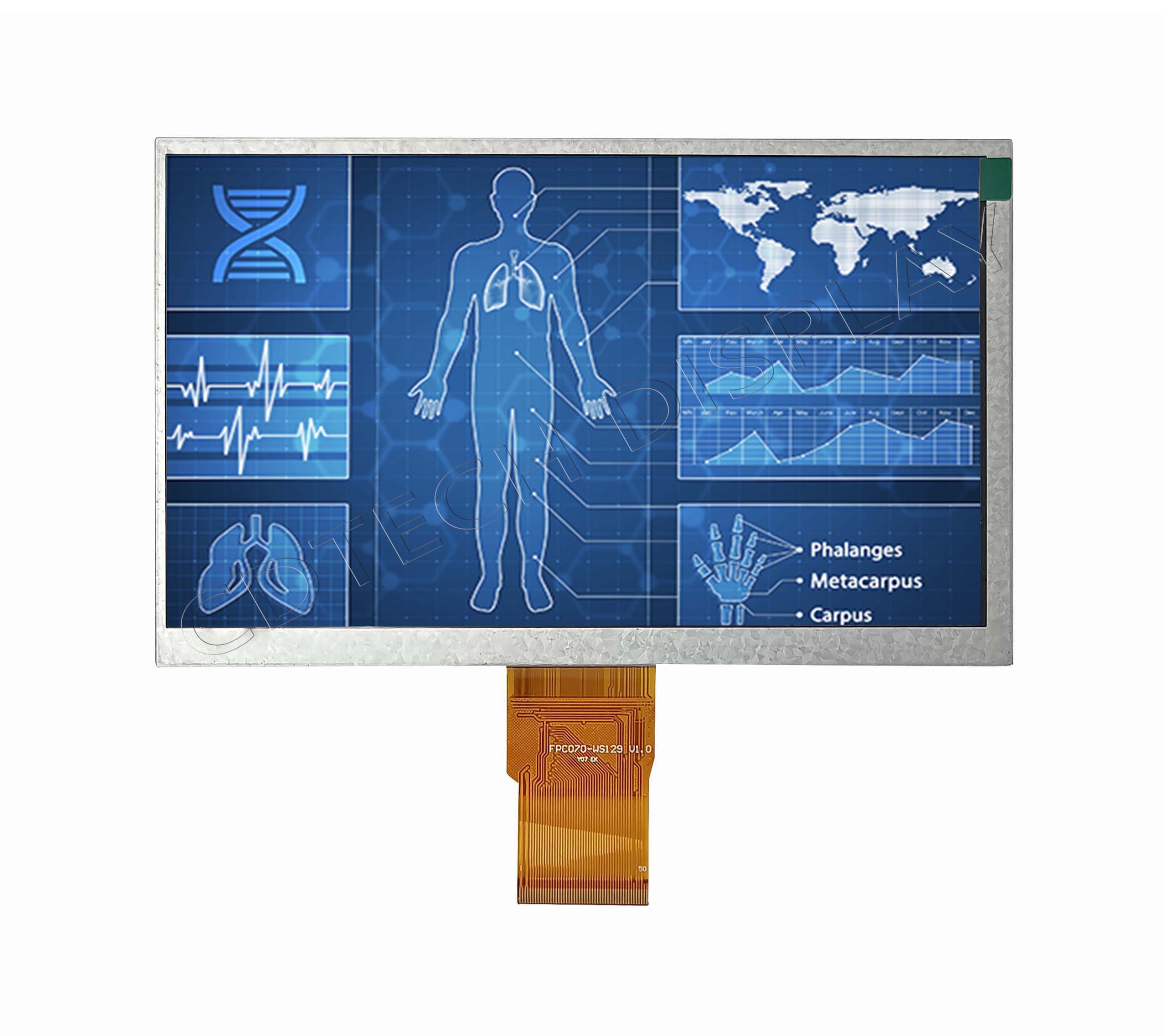

Related Products

Quality Standards



CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.

All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.



Project Evaluation



Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors.
Product Design



Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification.
Production Control



All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance.
Production Inspection



All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations.
After Sales Service



We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days.
Product Lifetime



The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details.
Warranty period



The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service.
ESD Protection



All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
