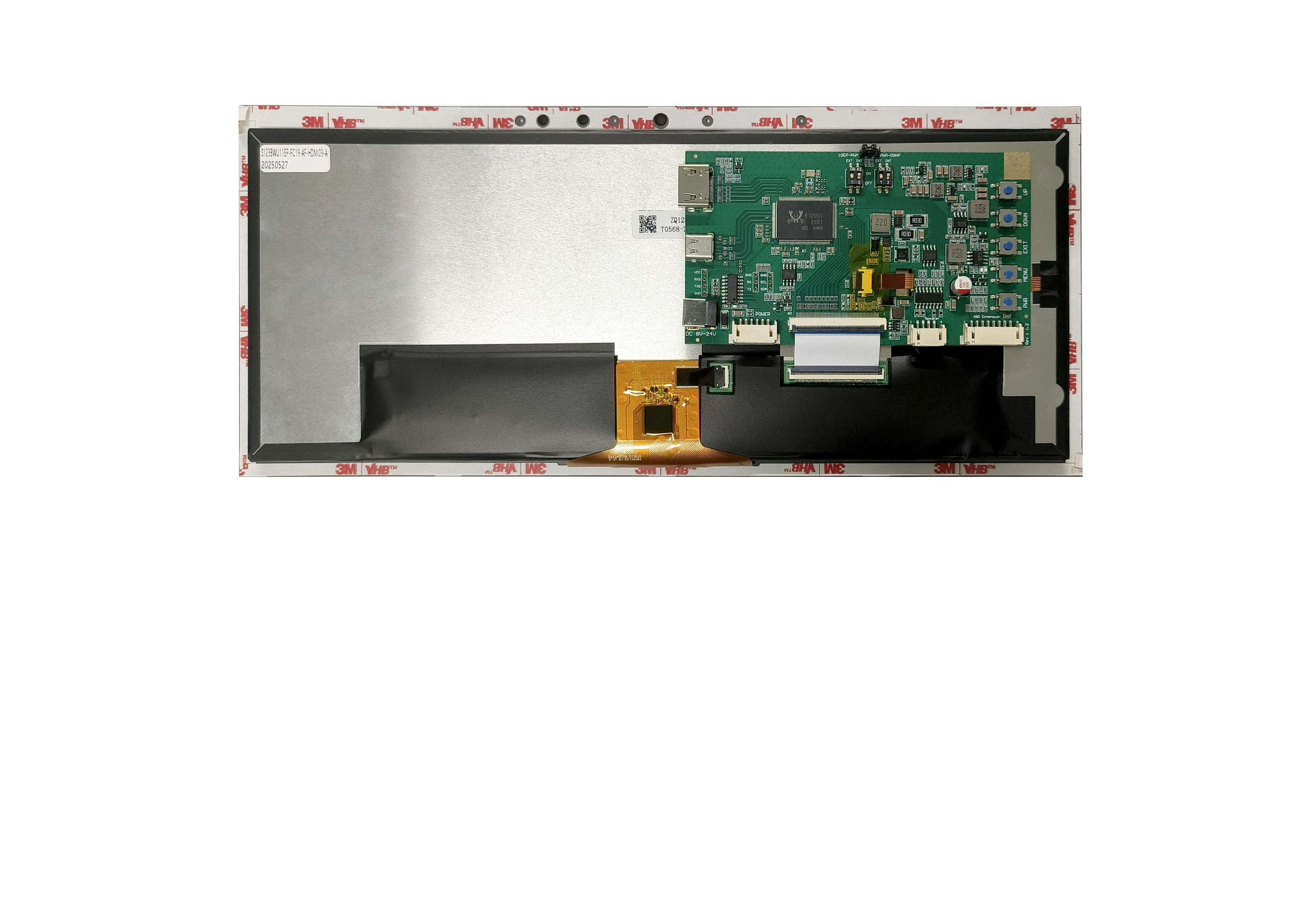

12.3″ Touch Screen for Car Dashboard, 1920×720 IPS bar design, 900nits HDMI Display
-
S123BWU11EP-FC19-AF-HDMI09-A
-
12.3"丨1920 x 720 Pixels
-
IPS with All viewing angle
-
Capacitive with IIC interface
-
HDMI
-
IIC
-
-30°C~+80°C
Product Description
Product Specification
| LCD Size | 12.3 inch |
| LCD Resolution | 1920 x 720pixels |
| LCD Active Area | 292.03 x 109.51 (mm) |
| LCD Luminance | 900nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | HDMI |
| LCD Controller | None |
| LCD Connection Type | FPC: 19PIN with 0.5 pitch，Connector (PF050-L60B-C21) |
| LCD Backlight Array | 4 Strings with 9 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=240mA，VF=24.3~30.6V |
| LCD Outline Dimension | 300.03 x 121.01 x 6.00 (mm) |
| CTP structure | G+G |
| CTP interface | IIC |
| CTP Controller | GT9110 |
| CTP Outline Dimension | 314.80 x 138.80 x 1.30(mm) |
| CTP Connection Type | None |
| Product Outline Dimension | 314.80 x 138.80 x 7.55(mm) |
| Product Operation Temp | -30°C~+80°C |
| Product Storage Temp | -40°C~+85°C |
Recommendations for use
-
LCD Customization
CDTech’s own bar type display cutting
technology patent, and have many standard bar type lcd range from 2.9”~12.3”；CDTech also can support customized different narrow AA LCD size according to the characteristics of different product appliances, to provide customer a wide range of sizes in Bar type TFT LCD， Suitable for home appliances and other products requiring special AA size LCD； -
Touch Panel Customization
Our touch screen customization services support thick cover lens, operation with water or gloves, and the use of active or passive pens. We offer flexibility in selecting different IC solutions to meet specific needs, such as Microchip, Atmel, FocalTech, Goodix, ILITEK, EETI, HYCON, and Cypress. We can design G+G or GFF (film sensor) structures and support COG/COB designs for CTP-FPC. These customizations ensure our touchscreens meet the specific demands of various applications, ensuring reliable and precise touch functionality.
-
Usage Guidelines
CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.
Related Products
-
12.3" Sunlight Readable IPS Display, Bar Type 1920x720, 950 Nits,Wide temperature TFT
-
12.3 Inch TFT LCD Car Display, IPS Bar Type ,1920x720 with CTP & OCA
-
12.3" IPS Bar Display - HDMI Integrated, 1920x720, 950 Nits Sunlight Readable for Outdoor Use
-
12.3" IPS Display, Bar Type 1920x720, 720 Nits with Capactive Touch Panel Optical bonded
Quality Standards
CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.
All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.
| Project Evaluation |
Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors. |
| Product Design |
Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification. |
| Production Control |
All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance. |
| Production Inspection |
All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations. |
| After Sales Service |
We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days. |
| Product Lifetime |
The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details. |
| Warranty period |
The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service. |
| ESD Protection |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
-
