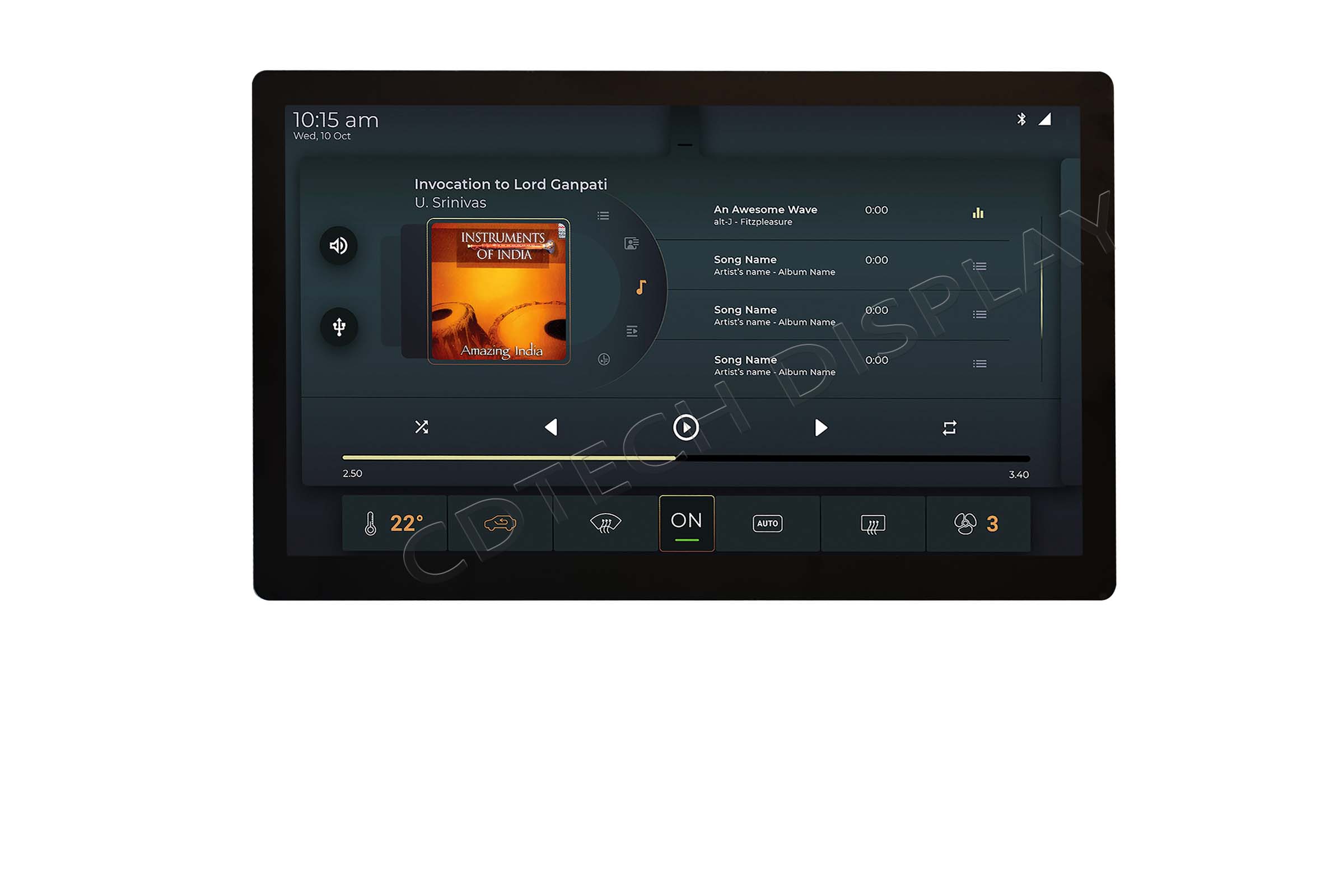

12.8 inch Car Touch Screen, Full HD 1920×1080, Sunlight Readable Automotive Screen
-
S128HWU04EP-FC04-GFR
-
12.8"丨1920 x 1080 Pixels
-
IPS with All viewing angle
-
Capactive with l²C interface
-
LVDS
-
IIC
-
-30°C~+85°C
Product Description
This 12.8 inch automotive touchscreen display features a Full HD 1920×1080 IPS panel with 850 nits high brightness for sunlight readable performance. Designed for vehicle infotainment systems, digital dashboards and EV smart cockpit integration, this automotive LCD module meets AEC-Q100 automotive standards and delivers stable operation in harsh environments.
With wide viewing angles, high contrast ratio and projected capacitive touch support, the display ensures excellent visual clarity and responsive touch interaction for modern in-vehicle applications.
Key Features
-
1920×1080 Full HD IPS display
-
850 nits sunlight readable brightness
-
Projected capacitive touch panel (PCAP)
-
LVDS interface with stable signal transmission
-
Wide operating temperature: -30°C to +85°C
-
Automotive-grade reliability
This automotive LCD display is ideal for:
-
Digital instrument clusters
-
In-vehicle infotainment systems
-
EV central control displays
-
Smart cockpit integration panels
-
Commercial vehicle dashboards
Frequently Asked Questions
Q1: Is this display sunlight readable?
Yes. With 850 nits brightness, the display remains clearly visible under strong ambient light conditions.
Q2: What is the operating temperature range?
The module operates from –30°C to +85°C, suitable for automotive environments.
Q3: What interface does it support?
It supports LVDS interface for stable high-speed data transmission.
Q4: Does it support capacitive touch?
Yes. The display integrates a projected capacitive touch panel with anti-glare treatment.
Q5: Can it be customized?
Yes. CDTech supports customization including brightness adjustment, touch panel modification and interface optimization.
Product Specification
| LCD Size | 12.8 inch |
| LCD Resolution | 1920 x 1080pixels |
| LCD Active Area | 283.39 x 159.41 (mm) |
| LCD Luminance | 850nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | LVDS |
| LCD Controller | FL5893AD *3 |

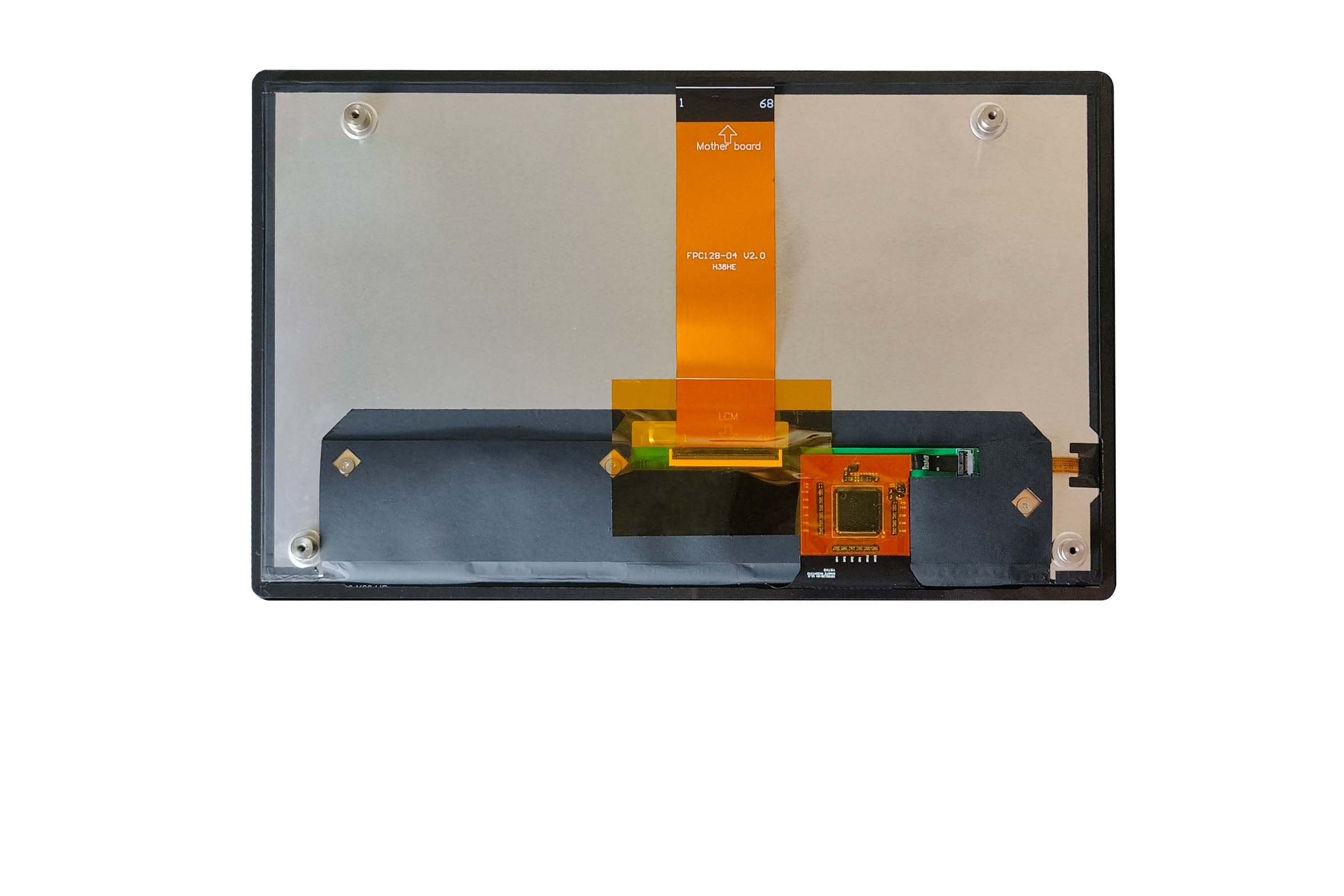

| LCD Connection Type | FPC: 68 PIN with 0.5 pitch,Connector (FP0525-268A0QH) |
| LCD Backlight Array | None |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=380mA，VF=32.4~37.2V |
| LCD Outline Dimension | 294.40 x 175.00 x 6.50 (mm) |
| CTP structure | G+G |
| CTP interface | I2C |
| CTP Controller | GA6572 |
| CTP Outline Dimension | 307.40 x 188.00 x 2.00 (mm) |
| CTP Connection Type | Integrated with LCD |
| Product Outline Dimension | 307.40 x 188.00 x 9.00 (mm) |
| Product Operation Temp | -30°C~+85°C |
| Product Storage Temp | -30°C~+85°C |
Recommendations for use
-
LCD Customization
FPC, as one of the important components of LCD, often supports diverse designs and functions. Regarding FPC, CDTech can provide customisation services including size, shape, pin layout, connector type(solder or plug-in), anti-static design(EMI, EMC, ESD), PWM function(to adjust backlight brightness), and black epoxy resin coating around the IC. We can support not only customised LCM FPC but also customised CTP FPC.
-
Touch Panel Customization
For selective CTP solutions that can be used for multiple applications, CDTech has our own CTP production line and can provide diversified CTP customisation services, including: support for touch through thick cover glass, waterproof touch(e.g., automotive, charging post, shower devices, etc.), glove touch(e.g., medical and automotive, etc.), active/passive pens(e.g., industrial control and tablet PC), and customised CTP FPC. CDTech also cooperates with several IC suppliers, so that we can choose the right touch IC according to different projects and different CTP requirements, and can support USB and IIC interfaces.
-
Usage Guidelines
CDTech’s automotive touch displays are engineered for high-quality reliability and long-term use in vehicle environments. To ensure optimal performance and lifespan, please follow these operation and storage guidelines:- Avoid direct hand contact with FPC gold fingers to prevent oxidation; use anti-static gloves/finger cots for installation and operation, and ensure effective grounding.
- Do not expose the display to extreme temperature, high humidity, or direct sunlight for long periods during use and storage.
- Store the product in a dry, well-ventilated warehouse with stable temperature and humidity when not in use for an extended period.
- Handle the touch panel and LCD screen with care to avoid physical scratches or impact on the 6H/3A coated glass surface.
Quality Standards
CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.
All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.
| Project Evaluation |
Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors. |
| Product Design |
Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification. |
| Production Control |
All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance. |
| Production Inspection |
All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations. |
| After Sales Service |
We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days. |
| Product Lifetime |
The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details. |
| Warranty period |
The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service. |
| ESD Protection |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
-
