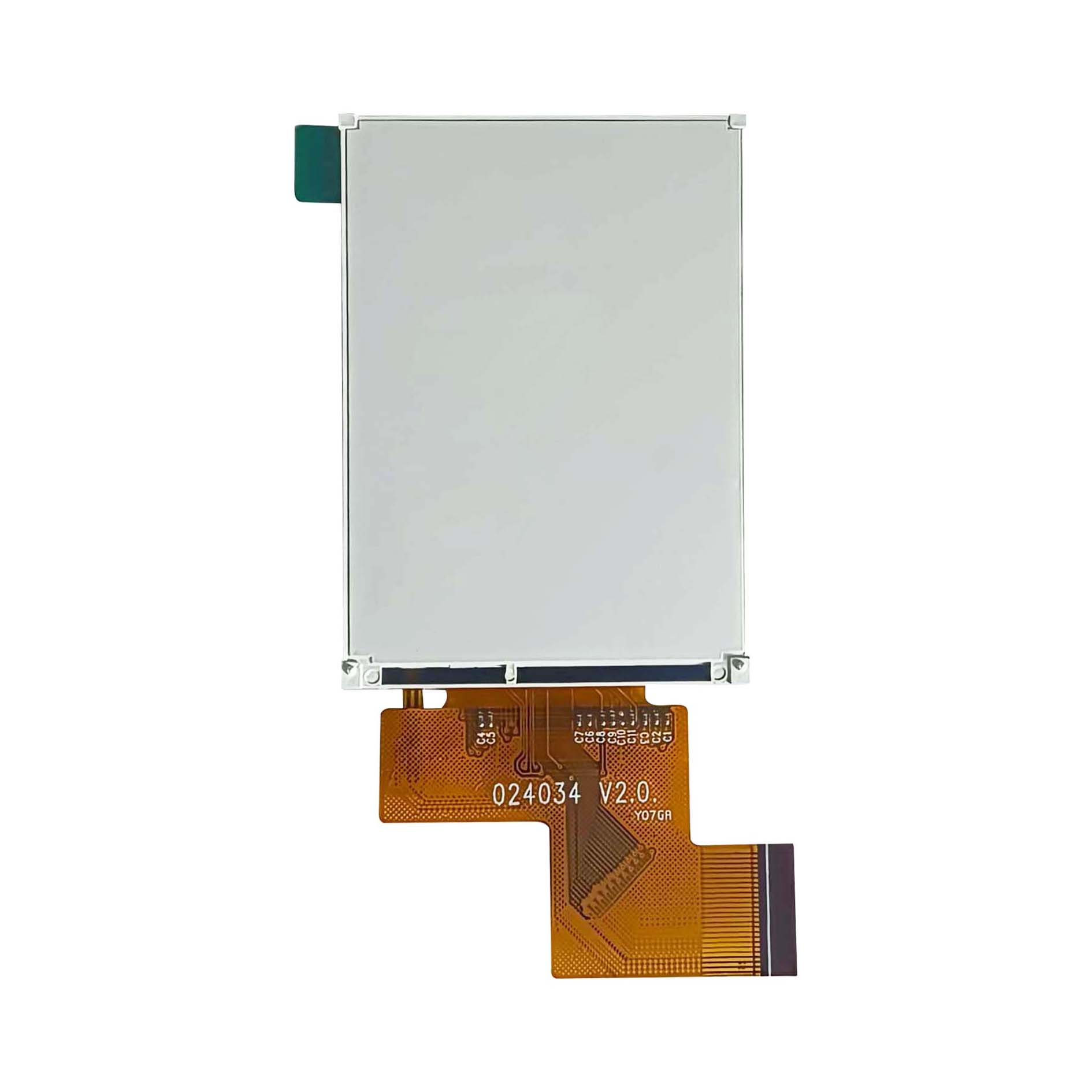

2.4 Inch TFT LCD Display Module 240×320 TN LCD 250 Nits
-
S024HQ34NN
-
2.4"丨240 x 320 Pixels
-
TN with 6 o'clock
-
None
-
16-bit MCU
-
None
-
-20°C~+70°C
Product Description
FAQ
Q: What is a 2.4 inch TFT LCD display?
A: A 2.4 inch TFT LCD display is a compact thin-film transistor liquid crystal module commonly used in embedded systems, industrial devices and portable equipment.
Q: Does this 2.4 inch LCD support touch panel?
A: This model is supplied without a touch panel. CDTech can provide customized resistive or capacitive touch solutions according to application requirements.
Q: What applications use a 240×320 TFT LCD display?
A: 240×320 TFT LCD displays are commonly used in industrial controllers, medical instruments, smart meters, handheld devices and embedded systems.
Product Specification
| LCD Size | 2.4 inch |
| LCD Resolution | 240 x 320pixels |
| LCD Active Area | 36.72 x 48.96 (mm) |
| LCD Luminance | 250nits |
| LCD Viewing Angle | TN with 6 o'clock |
| LCD Interface | 16-bit MCU |
| LCD Controller | ILI9340X |
| LCD Connection Type | FPC: 26PIN with 0.5 pitch |
| LCD Backlight Array | with 3 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=20mA，VF=9.6~0.6V |
| LCD Outline Dimension | 42.72 x 59.26 x 2.40 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 42.72 x 59.26 x 2.40 (mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+80°C |
Recommendations for use
-
LCD Customization
Support customizing different brightnesses backlight, providing high-brightness, high-color-gamut backlights for some automotive or outdoor equipment. It also can adds NTC overheating protection, external backlight control and other functions, which can not only meet the requirements of visibility under sunlight, but also ensure product performance;
And CDTech also can support customizing different backlight shapes and structures , and adding screw hole positioning posts to facilitate customer installation; -
Touch Panel Customization
For selective CTP solutions that can be used for multiple applications, CDTech has our own CTP production line and can provide diversified CTP customisation services, including: support for touch through thick cover glass, waterproof touch(e.g., automotive, charging post, shower devices, etc.), glove touch(e.g., medical and automotive, etc.), active/passive pens(e.g., industrial control and tablet PC), and customised CTP FPC. CDTech also cooperates with several IC suppliers, so that we can choose the right touch IC according to different projects and different CTP requirements, and can support USB and IIC interfaces.
-
Usage Guidelines
CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.
Quality Standards
CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.
All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.
| Project Evaluation |
Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors. |
| Product Design |
Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification. |
| Production Control |
All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance. |
| Production Inspection |
All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations. |
| After Sales Service |
We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days. |
| Product Lifetime |
The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details. |
| Warranty period |
The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service. |
| ESD Protection |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
-
