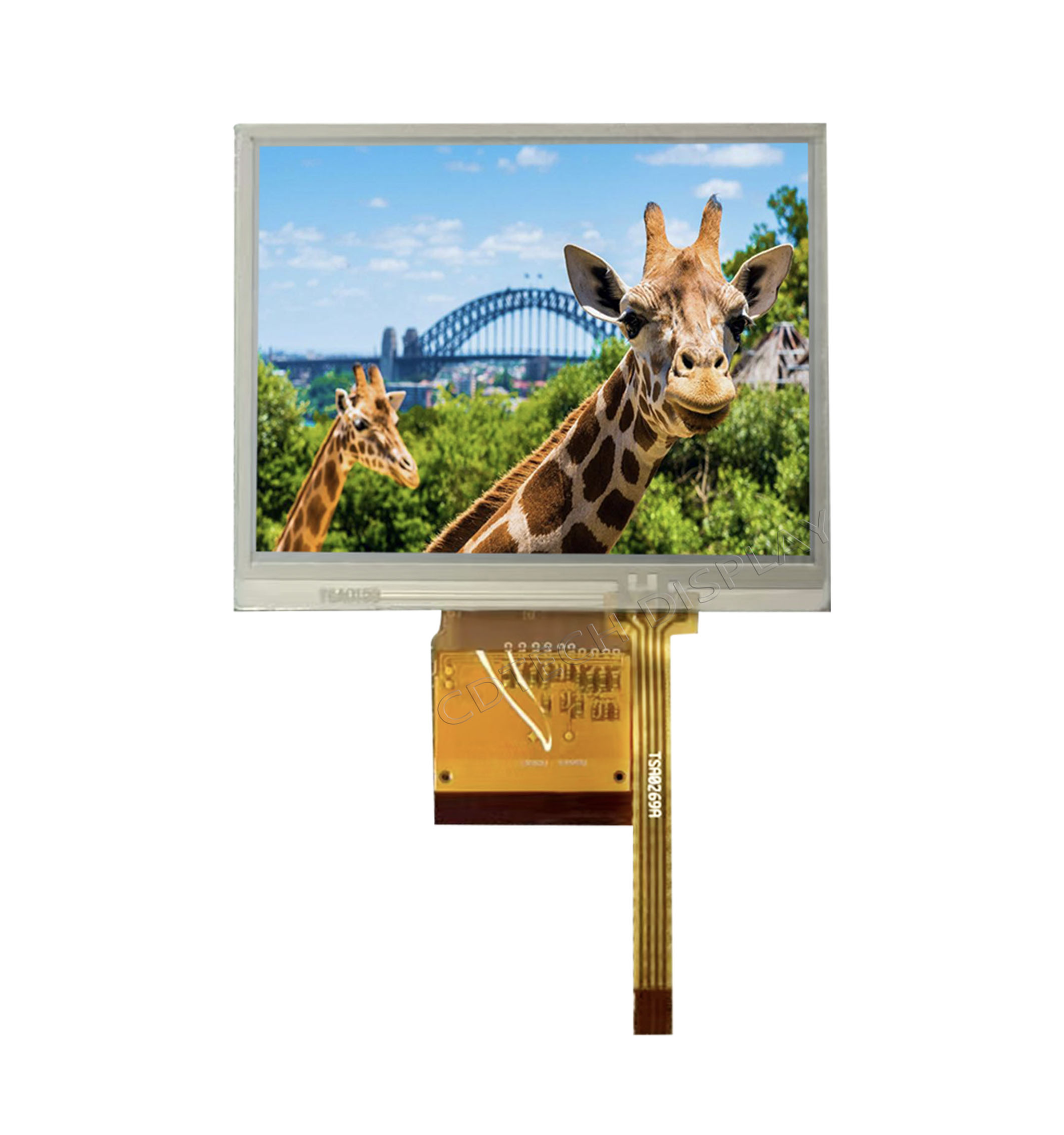

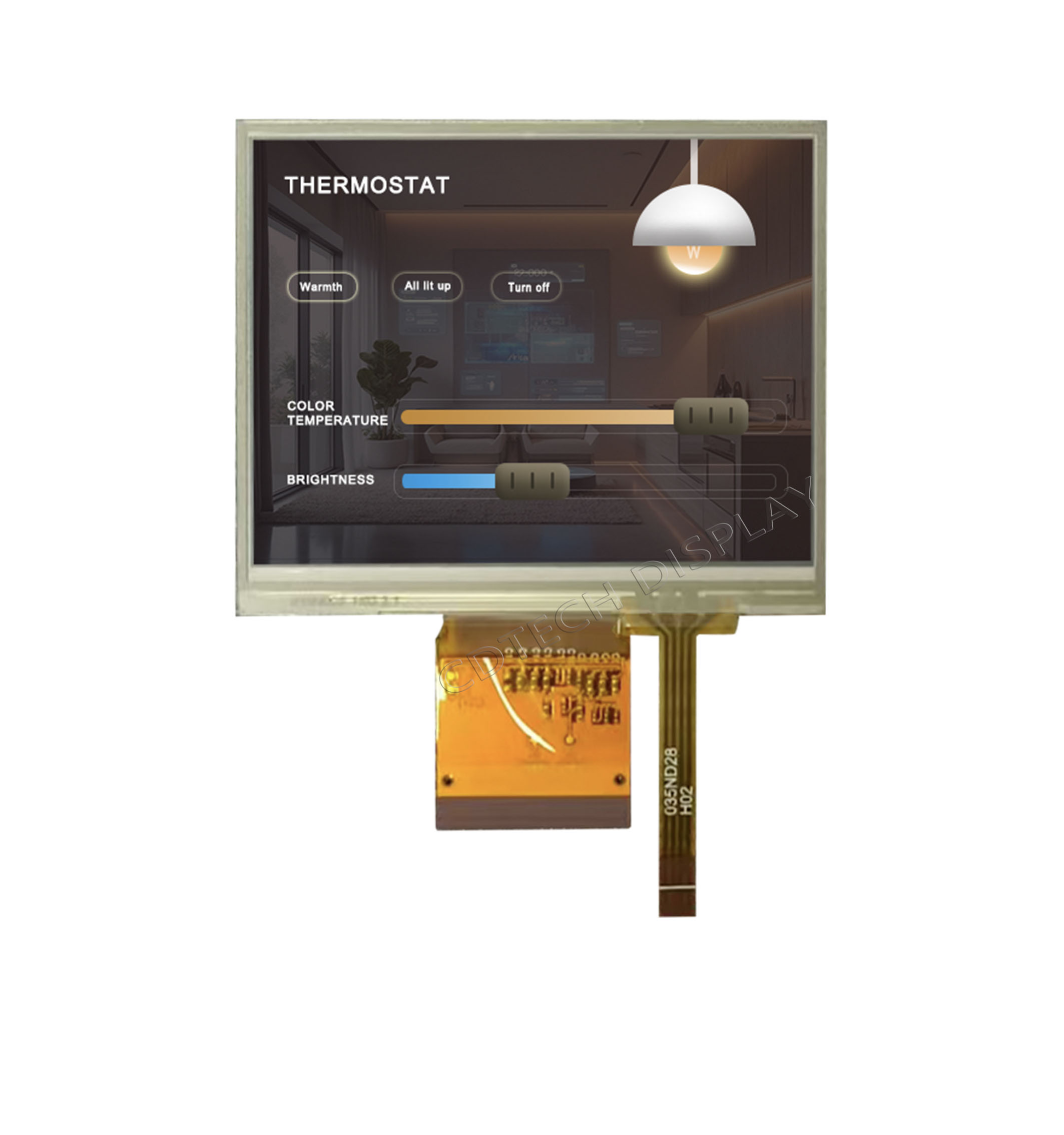

3.5″ Color TFT LCD, 320×240 with Resistive Touchscreen
-

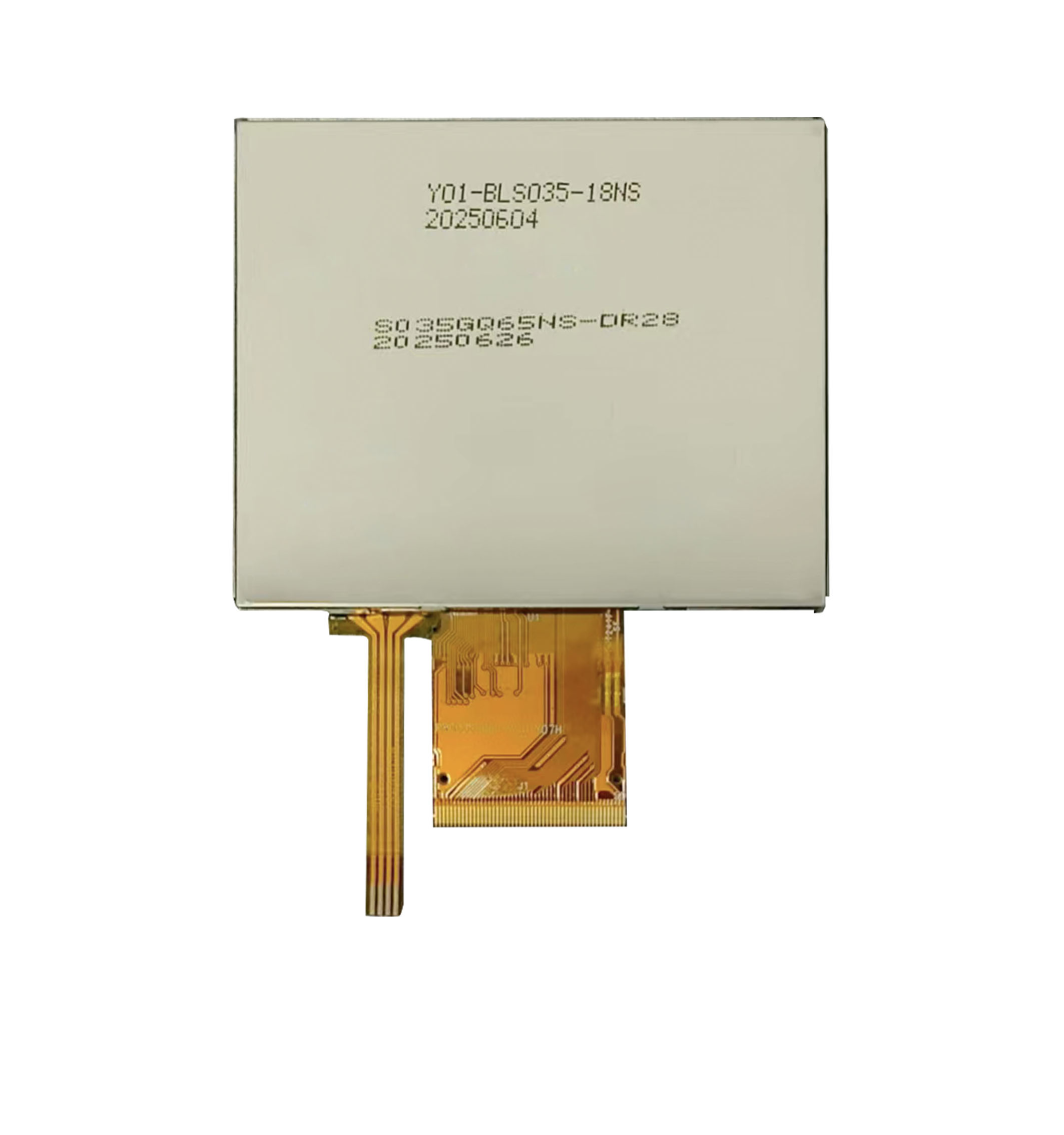

S035GQ65NS-DR28
-
3.5"丨320 x 240 Pixels
-
TN with 12 o'clock
-
Resistive Touch Panel
-
RGB
-
RTP 4Lines
-
-20°C~+70°C
Product Description
This 3.5 inch TN TFT LCD display with resistive touchscreen is designed for industrial HMI, medical handheld devices, and cost-sensitive embedded systems. Featuring a 320×240 resolution and RGB interface, it offers stable performance, low power consumption, and reliable touch control even when used with gloves or stylus.
Why Choose TN Resistive Touch Display?
Compared with IPS displays, TN panels provide a more cost-effective solution for applications where ultra-wide viewing angles are not required. Combined with a resistive touchscreen, this module ensures stable operation in harsh environments, including scenarios involving gloves, moisture, or dust.
Typical Applications
- Industrial HMI control panels
- Medical handheld diagnostic devices
- Laboratory instruments
- Portable testing equipment
- Embedded control systems
Engineering Advantages
- Supports operation with gloves and stylus
- Stable performance under temperature variations
- Lower cost compared to IPS alternatives
- Mature TN technology with high production reliability
- Easy integration with MCU via RGB interface
Product Specification
| LCD Size | 3.5 inch |
| LCD Resolution | 320*240pixels |
| LCD Active Area | 70.08 x 52.56 (mm) |
| LCD Luminance | 300nits |
| LCD Viewing Angle | TN with 12 o'clock |
| LCD Interface | 24-bit RGB |
| LCD Controller | SSD2119 |
| LCD Connection Type | FPC: 50PIN with 0.5 pitch ,Connector (FH12-50S-0.5SH) |
| LCD Backlight Array | with 6 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF =20mA ,VF =19.2~1.2V |
| LCD Outline Dimension | 76.84 x 63.84 x 3.27 (mm) |
| CTP structure | RTP |
| CTP interface | RTP 4Lines |
| CTP Controller | None |
| CTP Outline Dimension | 76.50 x 63.50 x 1.20 (mm) |
| CTP Connection Type | None |
| Product Outline Dimension | 76.84 x 63.84 x 4.43 (mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+80°C |
Recommendations for use
-
LCD Customization
LCD FPC is both an important part of the LCD module and a key choice for customer motherboards. CDTech can support customized FPC pinout layout, overall dimensions, FPC with connector type, soldering or plug-in type, PWM function design, anti-static design, EMI, EMC, ESD, and black epoxy resin coating around the IC. Most of the automotive projects have extreme requirements for the EMI, EMC, ESD, in order to help customers minimize EMI, EMC, ESD issues, we can add EMI shielding film to the FPC.
-
Touch Panel Customization
For TFT+CTP solutions, CDTech can support air bonding, OCA bonding and LOCA bonding. For TFT+cover glass(no touch), most customers prefer OCA bonding. However, CDTech can also help evaluate the feasibility of using air bonding or LOCA bonding and provide professional advice.
-
Usage Guidelines
CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.
Quality Standards
CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.
All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.
| Project Evaluation |
Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors. |
| Product Design |
Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification. |
| Production Control |
All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance. |
| Production Inspection |
All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations. |
| After Sales Service |
We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days. |
| Product Lifetime |
The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details. |
| Warranty period |
The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service. |
| ESD Protection |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
-
