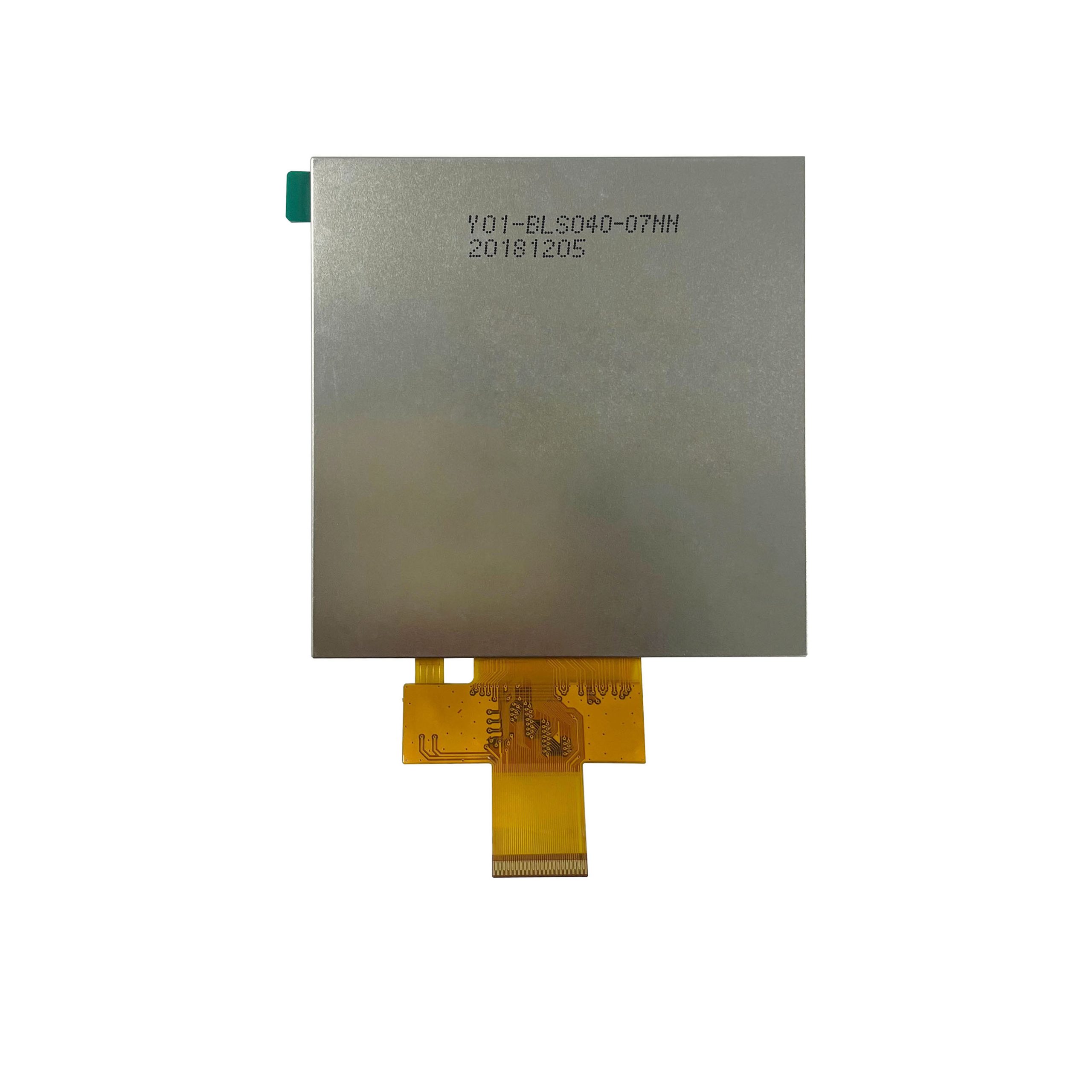

4.0″ IPS Display, Square Type 480×480, 350 Nits without Touch Panel
-
S040HWV08NN
-
4.0"丨480 x 480 Pixels
-
IPS with All viewing angle
-
None
-
24-bit RGB
-
None
-
-20°C~+70°C
Product Description
Key Features
Square Display for Modern UI Design
- 1:1 aspect ratio for balanced interface layouts
- Suitable for smart home and embedded control systems
- Optimized for modern graphical UI designs
IPS Full Viewing Angle
- Clear visibility from all directions
- Consistent color and contrast performance
- Improved usability in shared-view applications
Stable RGB Interface
- 24-bit RGB interface for smooth data transmission
- Suitable for embedded processors and HMI platforms
- Reliable performance for graphical interfaces
Compact and Space-Efficient
- Square structure improves layout flexibility
- Ideal for compact embedded devices
- Simplifies industrial and smart device design
Typical Use Cases
- Smart Home Control Panels
- Industrial HMI Systems
- Smart Appliances
- Portable Medical Devices
- Embedded IoT Devices
Why Choose a Square TFT LCD Display?
Square TFT LCD displays are increasingly used in modern UI-driven devices because they provide:
- Better interface symmetry
- More efficient content layout
- Improved visual balance for control systems
- Modern appearance for smart devices
Product Specification
| LCD Size | 4.0 inch |
| LCD Resolution | 480*480pixels |
| LCD Active Area | 71.86 x 70.18 (mm) |
| LCD Luminance | 350nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | 24-bit RGB |
| LCD Controller | ST7701S-G5 |
| LCD Connection Type | FPC: 45PIN with 0.3 pitch,Connector (FH26-45S-0.3SH) |
| LCD Backlight Array | 2 Strings with 5 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=40mA，VF=15~0.6V |
| LCD Outline Dimension | 77.66 x 78.97 x 2.3 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 77.66 x 78.97 x 2.3 (mm) |
| Product Operation Temp | -20℃ ~ 70℃ |
| Product Storage Temp | -30℃ ~ 80℃ |
