High-Performance TFT LCD Solutions for Digital Instrument Clusters

Digital instrument clusters have become a key driver information interface in modern vehicles, replacing traditional gauges with configurable TFT LCD displays. They present essential information such as vehicle speed, battery status, warnings and other real-time driving data in a flexible digital format.

For passenger vehicles, EVs and commercial vehicles, display requirements can vary significantly in brightness, temperature range, interface, touch functionality and mechanical design. As part of our [Automotive Display Solutions],CDTech develops customized TFT LCD and touch display modules to match these different vehicle platform requirements, from standard display configurations to integrated touch solutions.

From initial display selection and specification matching to prototype development and mass production, CDTech supports OEM and ODM projects with:

• Clear visibility across different driving and lighting conditions
• Stable display performance across demanding temperature environments
• LVDS, MIPI DSI and other interface options for system integration
• Customized display size, touch, optical bonding and mechanical design

Core Value of Digital Instrument Cluster Displays for Modern Vehicles

Digital clusters centralize all real-time driving data on a single screen, delivering critical driving information including:

• Real-time vehicle speed & RPM
• EV battery SOC, remaining driving range & charging status
• In-dash embedded navigation map
• ADAS safety warning prompts
• Whole-vehicle fault & system status feedback

Fully customizable display interface style to match different vehicle models and driving scenarios

1. Highly flexible dynamic information layout, adjustable UI for different driving modes
2. Fully customizable human-machine interface style to match vehicle interior positioning
3. Designed for integration with vehicle electronic systems and display control platforms
4. Enhanced driving information visualization for new energy and intelligent vehicles

For electric vehicles and smart cockpits, digital instrument clusters have become an indispensable core component of the vehicle HMI system.

Application-Specific Digital Instrument Cluster Solutions

Passenger Vehicle Instrument Cluster

Customer Requirements

Ultra-high resolution, premium visual texture, optional integrated PCAP touch control, thin border aesthetic design

Standard Display Size Range: 7″–12.3″

CDTech Customized Support:

• Ultra-narrow border IPS display with accurate color reproduction
• 500–800 nits brightness for standard passenger vehicle instrument clusters
• Optional integrated capacitive touch for interactive instrument UI
• Compatible with mainstream passenger vehicle host LVDS / MIPI DSI interfaces

Electric Vehicle (EV) Instrument Cluster

Unique EV Data Display Demands

Battery state of charge, real-time energy consumption, charging power & estimated cruising range

CDTech Targeted Optimization

• 1000~1500 nits high-brightness panel with AG+AR optical coating for strong sunlight scenarios
• Display configurations can be customized to accommodate EV energy monitoring interfaces.
• Optional PCAP touch integration and display bonding solutions, reducing customer secondary assembly work
• Wide-temperature stable backlight for cold-start performance of new energy vehicles

Commercial & Off-Highway Vehicle Instrument Cluster

Covers golf carts, heavy-duty trucks, agricultural tractors and engineering construction machinery.

Strict Application Requirements

Rugged anti-vibration mechanical structure, ultra-wide temperature working range, 10+ years long service life

CDTech Customization Features

• Extended ultra-wide temperature display design
• LOCA full optical bonding to eliminate fogging under temperature difference
• Reinforced anti-shock & dust-proof cover glass structure
• Stable low-brightness startup at -40°C extreme cold environment

Core Engineering Challenges & Matching CDTech Automotive Display Technologies

Vehicle instrument displays face four major industry technical bottlenecks; we provide targeted mature technical solutions as below:

Supplementary Technical Details

Temperature Reliability Classification:

• Passenger vehicles: -20°C to +70°C standard operation
• Commercial vehicles: Extended temperature design available for harsh environments

Optical Bonding Difference:

• OCA bonding can be considered for lightweight passenger vehicle display designs
• LOCA may be selected for applications requiring enhanced bonding performance under larger temperature variations and outdoor conditions.

Featured Automotive Display Modules for Instrument Cluster Applications

High Brightness Instrument Cluster Displays

Designed for:
EV instrument clusters, commercial vehicles, agricultural machinery and outdoor vehicle displays

Key Benefits

✓ Sunlight-readable high brightness display
✓ IPS wide viewing angle performance
✓ AG/AR optical enhancement options
✓ Optional optical bonding for improved durability

Recommended Display Modules

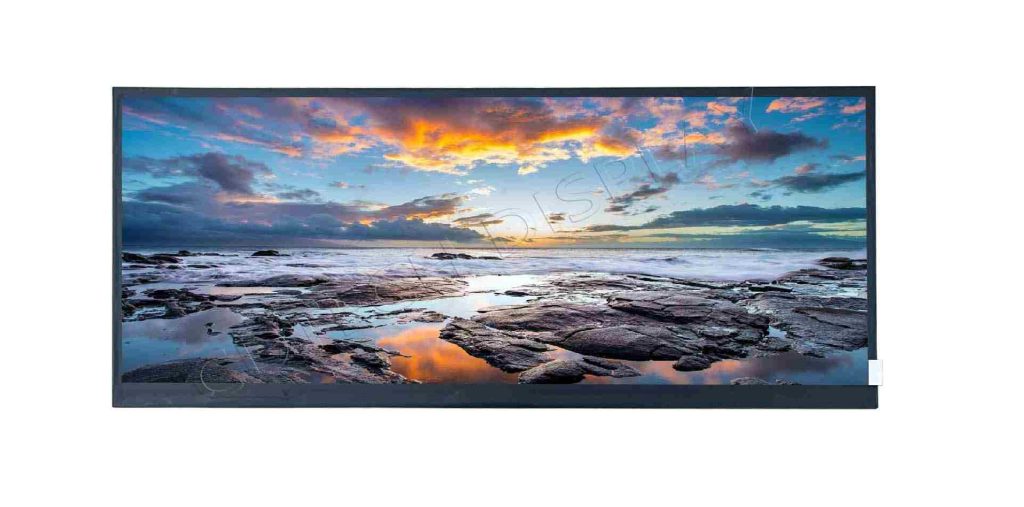

12.3-inch Automotive Bar Display

1920×720 | 1000 nits | LVDS Interface

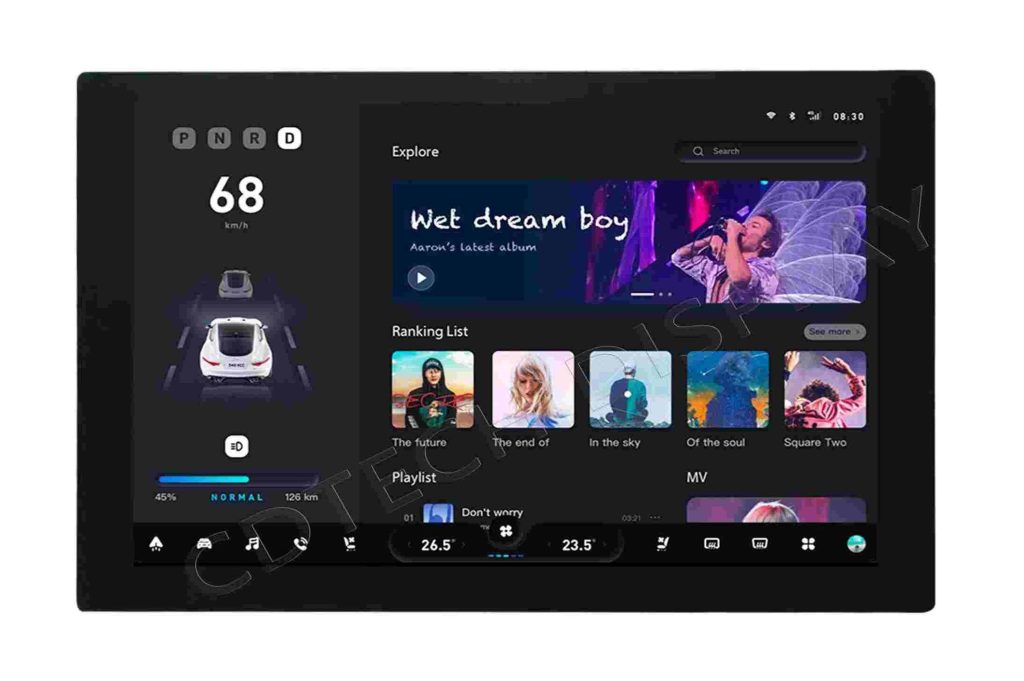

10.1 inch High Brightness EV TFT

1280×800 | 850 nits | LVDS Interface

View Automotive Display Products

Touch-Enabled Instrument Cluster Displays

Designed for:
Touch-enabled instrument clusters and driver information displays

Key Benefits

✓ Integrated TFT LCD + PCAP touch solution
✓ Multi-touch operation support
✓ Customized cover glass design
✓ OCA/LOCA optical bonding available

Recommended Products

12.3-inch Automotive Bar Touch Display

1920×720 | 720 nits | LVDS Interface

Custom Digital Instrument Cluster Solutions

Designed for:

Customized dashboards, vehicle control panels and specialty vehicles

Key Benefits

✓ Custom display size and resolution
✓ Multiple interface options
✓ Touch integration support
✓ OEM/ODM development capability

Recommended Products

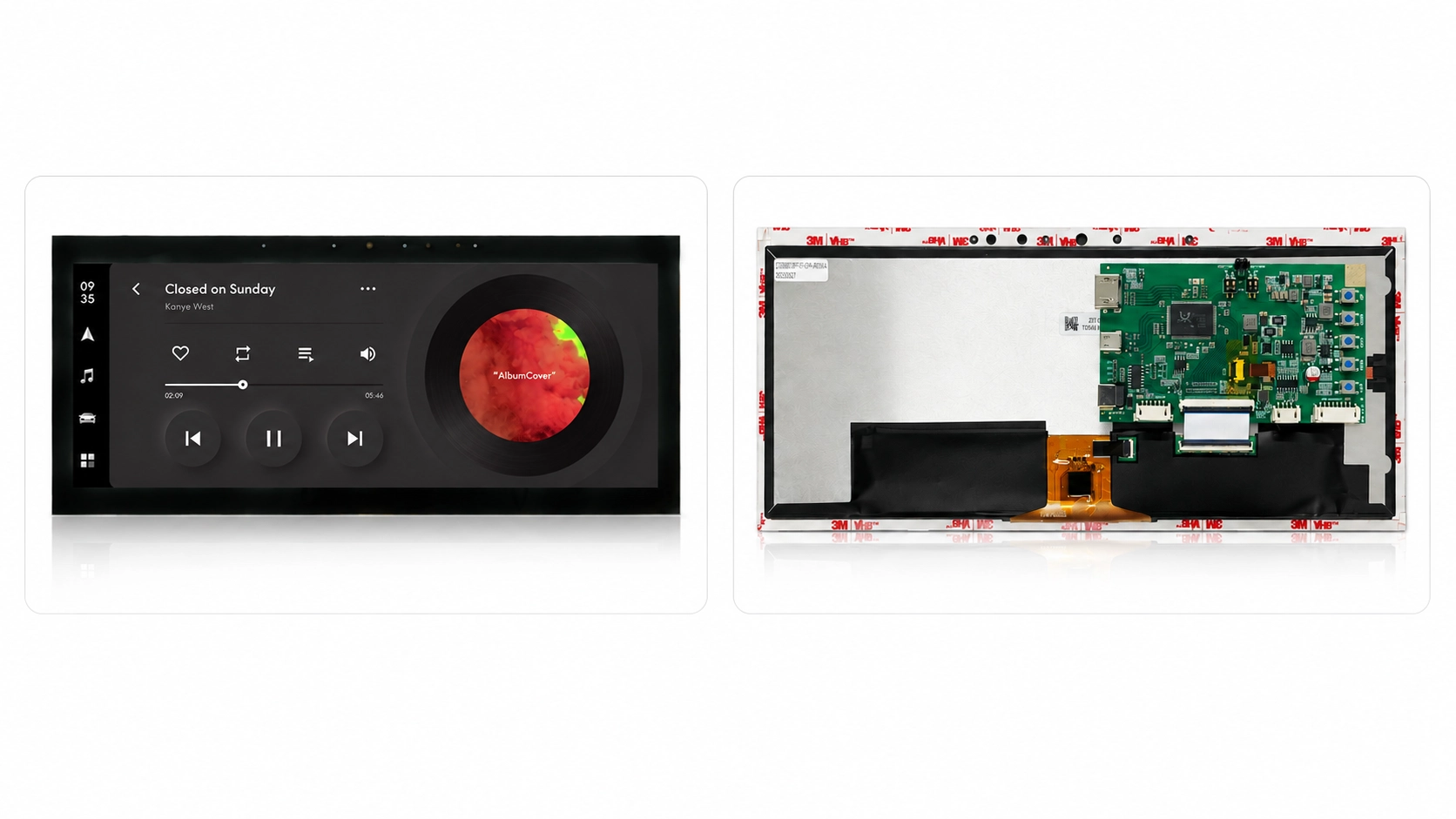

12.3-inch Automotive Bar Touch Display with HDMI

1920×720 | 900 nits | HDMI Interface

HDMI input via integrated controller board

Suitable Applications

• EV dashboards
• Agricultural machinery
• Golf cart displays
• Industrial vehicles

 Discuss Your Custom Display Project

CDTech Full-Cycle ODM/OEM Automotive Display Development Capacity

We provide full customized OEM & ODM services for automotive instrument screens, covering the entire project cycle from early demand evaluation to mass shipment:

1. Demand Analysis & Display Specification Recommendation Analyze vehicle platform, working environment and cost budget to match optimal screen size, brightness and interface parameters

2. Full Custom Hardware Design Customize TFT resolution, backlight brightness, PCAP touch function, cover glass appearance and mechanical outline structure
3. Prototype Development & Performance Verification Produce engineering samples, complete optical, touch and temperature performance preliminary testing
4. Automotive-Grade Reliability Validation Support temperature cycling, vibration and damp heat aging testing according to project requirements.
5. Stable Mass Production & Long-Term Delivery Support Maintain long-term material stocking to Support long-term product availability for vehicle lifecycle requirements for vehicle models

Automotive-Grade Quality & Reliability Assurance

Vehicle-mounted display reliability is the core assessment standard for Tier1 and vehicle manufacturers; CDTech strictly implements full automotive quality management standards:

Certified Quality System

• IATF 16949automotive special quality management system certification
• ISO 9001 general quality control system
• Full RoHS environmental compliance for all display modules
• Driver ICs and key electronic components can support automotive-grade qualification requirements depending on project specifications.

Complete Independent Laboratory Testing Capability

We own a full set of test equipment for vehicle display verification:

• Temperature cycling & cold-hot impact testing
• Vehicle road simulation vibration & shock resistance testing
• Optical performance testing: brightness, contrast, color gamut, reflectivity
• PCAP touch electromagnetic anti-interference & stability verification
• High-low temperature continuous aging long-running test

Frequently Asked Customer Questions

Q1: What is a digital instrument cluster display?

A: A digital instrument cluster display replaces traditional mechanical gauges with an electronic display system that provides driving information such as speed, vehicle status, battery level and warning notifications. CDTech provides customized TFT LCD display modules for various vehicle applications.

Q2: What display sizes are available for digital instrument clusters?

A: CDTech supports customized digital instrument cluster displays from compact sizes to large dashboard formats, including 5-inch, 7-inch, 8.8-inch, 10.1-inch and 12.3-inch displays. Size, resolution, brightness and interface can be customized according to vehicle requirements.

Q3: Can CDTech customize digital instrument cluster displays?

A: Yes. CDTech provides OEM/ODM customization services including display size, resolution, brightness, touch integration, cover glass design, interface selection and mechanical structure optimization for different vehicle platforms.

Q4: What brightness levels are available for automotive instrument cluster displays? A: CDTech provides high-brightness TFT LCD modules with options up to 1000 nits and above for sunlight-readable vehicle applications. AG/AR surface treatment and optical bonding solutions are also available to improve outdoor visibility.

Q5: Does CDTech support optical bonding for automotive displays?

 A: Yes. CDTech supports OCA and LOCA optical bonding solutions for automotive displays. Optical bonding helps reduce reflections, improve sunlight readability and enhance display durability in vibration and temperature-changing environments.

Q6: What display interfaces do your instrument TFT modules support?

A: CDTech supports common display interfaces including LVDS, MIPI DSI, RGB and HDMI. Interface selection can be customized based on the customer’s vehicle electronic system requirements.
