Exploring the Longevity of TFT LCD Display Module Compared to OLED

Choosing between a TFT LCD display module and OLED often starts with one key question: which technology can provide a longer and more predictable service life? In practice, neither technology is universally longer-lived in every application. TFT LCD longevity is mainly influenced by factors such as backlight aging, thermal conditions, brightness settings, and driver reliability, while OLED lifetime depends on emissive material aging, brightness level, temperature, and usage patterns. For many industrial applications, TFT LCD can provide a more predictable lifecycle because its main aging factors are easier to evaluate and manage. The right choice depends on the actual operating environment, product requirements, and lifecycle expectations.

What Determines the Longevity of a TFT LCD Display Module?

How do the backlight, TFT panel, and driver path age?

A TFT LCD display module is an assembly rather than a bare panel. The liquid-crystal cell, thin-film transistor array, polarizers, color filters, backlight, driver electronics, connectors, and any touch or cover components work together. The backlight is a particularly important service-life variable because output depends on drive current, thermal conditions, optical stack, and the required brightness setting.

The driver path and connector also affect long-term stability. Incorrect timing, power noise, repeated cable stress, or poor mechanical support can create failures that are not caused by the LCD cell itself. A sound longevity review therefore defines the module configuration, host interface, mounting method, and maintenance access instead of relying on a generic TFT LCD panel statement.

Which operating conditions shorten or extend service life?

Temperature, continuous duty, brightness, ventilation, power quality, vibration, moisture, and cleaning practice all influence the operating life of a module. Running a backlight at a high setting in a poorly ventilated enclosure can create a different thermal load from the same module used at a lower setting in a controlled cabinet. Frequent power cycling and cable movement may also need separate validation.

An OEM should define the intended duty cycle, ambient range, luminance setting, installation angle, and maintenance routine before comparing TFT LCD benefits. The life test should use the actual host, cover, cable route, and enclosure wherever possible. This produces evidence relevant to the product rather than an unsupported universal lifespan number.

How Does TFT LCD Longevity Compare with OLED in Practice?

TFT LCD vs OLED: Which Technology Provides More Predictable Longevity?

For many industrial applications, TFT LCD modules can offer more predictable lifetime management because the main aging factors, such as backlight output decline and thermal stress, can be measured and controlled. OLED provides excellent image quality and a thinner design, but its lifetime is more closely related to pixel aging, brightness level, and static image usage.

What are OLED’s strengths and longevity trade-offs?

OLED is self-emissive, so each pixel produces light without a separate backlight. That construction can support thin modules, strong black levels, and wide viewing performance. It can be attractive when industrial or embedded equipment needs a slim optical stack or a high-contrast interface.

The same construction creates different lifecycle considerations. Organic emissive materials are sensitive to operating stress, and the blue component can age differently from other colors. Encapsulation must protect the materials from water and oxygen. These are reasons to examine brightness, static content, temperature, duty cycle, and environmental protection rather than assume that OLED is automatically longer-lived or shorter-lived in every application.

Why can a TFT LCD module offer predictable industrial maintenance?

The mature backlit structure of a TFT LCD module makes the main wear variables easier to identify: backlight drive, thermal path, panel condition, driver stability, and mechanical assembly. A buyer can set a brightness target, validate the interface, and design service access around the complete module. That does not remove every failure mode, but it supports a clear maintenance and replacement discussion.

TFT LCD can also provide a broad range of diagonal sizes, interfaces, touch options, and optical configurations. The advantage is not a guaranteed lifetime claim. It is the ability to define measurable operating conditions and review a known configuration before committing to a long-running product.

Which Commercial and Integration Factors Matter Beyond Lifespan?

How do interface and touch requirements affect lifecycle risk?

The TFT LCD interface must match the host timing, signal path, connector, cable, and software. RGB, MCU, LVDS, MIPI, EDP, and HDMI can imply different routing and bridge requirements. A touch layer adds its own controller, cover, calibration, and environmental considerations. If these items are left unresolved, a late interface change can create more lifecycle risk than the choice between display technologies.

For a TFT LCD touch display, the request should specify touch method, glove or stylus use, moisture exposure, cover-glass thickness, active area, FPC direction, EMI or ESD expectations, and cleaning conditions. A 7-inch TFT LCD monitor may be suitable for one enclosure, while a 7-inch TFT LCD touch screen may not suit another because diagonal size alone does not define host compatibility or viewing distance.

How should buyers evaluate TFT LCD pricing and supplier claims?

An apparent TFT LCD display price should be compared with the complete supply scope: tooling or NRE, touch and cover glass, interface electronics, sample revisions, validation, documentation, replacement planning, and technical support. Two quotes for a similar TFT LCD panel may describe different optical, mechanical, or service assumptions.

When assessing a TFT LCD display supplier or a TFT LCD manufacturing factory, buyers should request drawings, revision control, test conditions, change-notification practice, and evidence for the stated configuration. A low number without this information is not a reliable total-cost comparison. Price, capacity, warranty, and certification should be treated as items requiring project-specific verification.

How Can CDTech Support a Long-Life TFT LCD Display Module Project?

Which verified CDTech TFT LCD touch display can start evaluation?

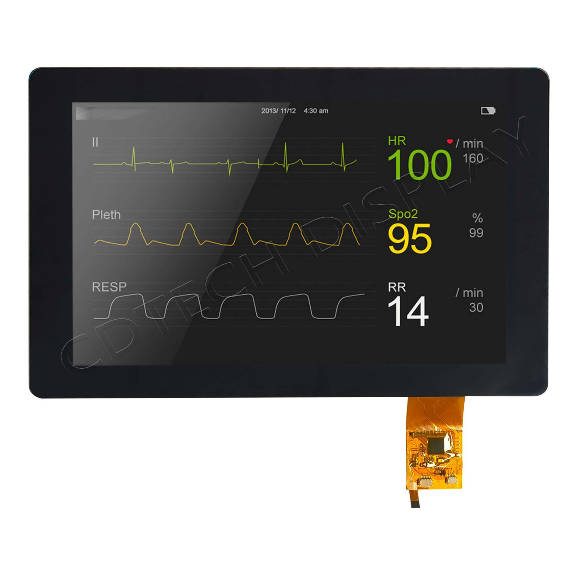

CDTech’s S101HWX34HD-DC43 is a documented reference for a TFT LCD display module evaluation. It is a 10.1-inch IPS TFT LCD with 1280×800 resolution, 400-nit luminance, 1000:1 contrast, an LVDS LCD interface, and an IIC touch interface. The documented configuration includes 10-point capacitive touch, EMI protection on the LCD cable, and an operating range of -20°C to +70°C.

It shows the level of detail an OEM should review: optical output, contrast, interface, touch path, cable protection, and temperature range. The host, enclosure, duty cycle, brightness setting, and validation plan still determine whether the configuration fits the intended product.

What should an OEM request from a custom TFT LCD supplier?

With our products, an OEM should provide the display size, active area, outline drawing, mounting points, FPC and connector requirements, host interface, touch method, backlight target, dimming, operating environment, duty cycle, and sample acceptance criteria. These inputs help separate a standard TFT LCD panel from a custom TFT LCD requirement.

We can review whether an existing module or a project-specific configuration is appropriate, but final performance must be confirmed against drawings and samples. Our products should be evaluated on documented fit, interface control, optical requirements, environmental testing, and lifecycle assumptions rather than on an unsupported lifetime promise.

FAQ

Q: Which lasts longer, TFT LCD display module or OLED?

A: There is no fixed answer for every application. TFT LCD modules often provide more predictable long-term performance because their backlight, thermal conditions, and operating parameters can be controlled. OLED may offer advantages in image quality and thin design, but its lifetime depends heavily on brightness, pixel usage, and environmental conditions.

Q: What should be included in a TFT LCD pricing comparison?

A: Include tooling or NRE, panel and backlight configuration, touch and cover glass, interface electronics, samples, validation, documentation, support, and replacement assumptions. Do not treat an unverified unit quote as total cost.

Q: Is a 7–inch TFT LCD touch screen suitable for every industrial product?

A: No. Confirm the enclosure, viewing distance, active area, host interface, touch behavior, temperature, cleaning, and duty cycle. A 7-inch diagonal is only one part of the qualification.
