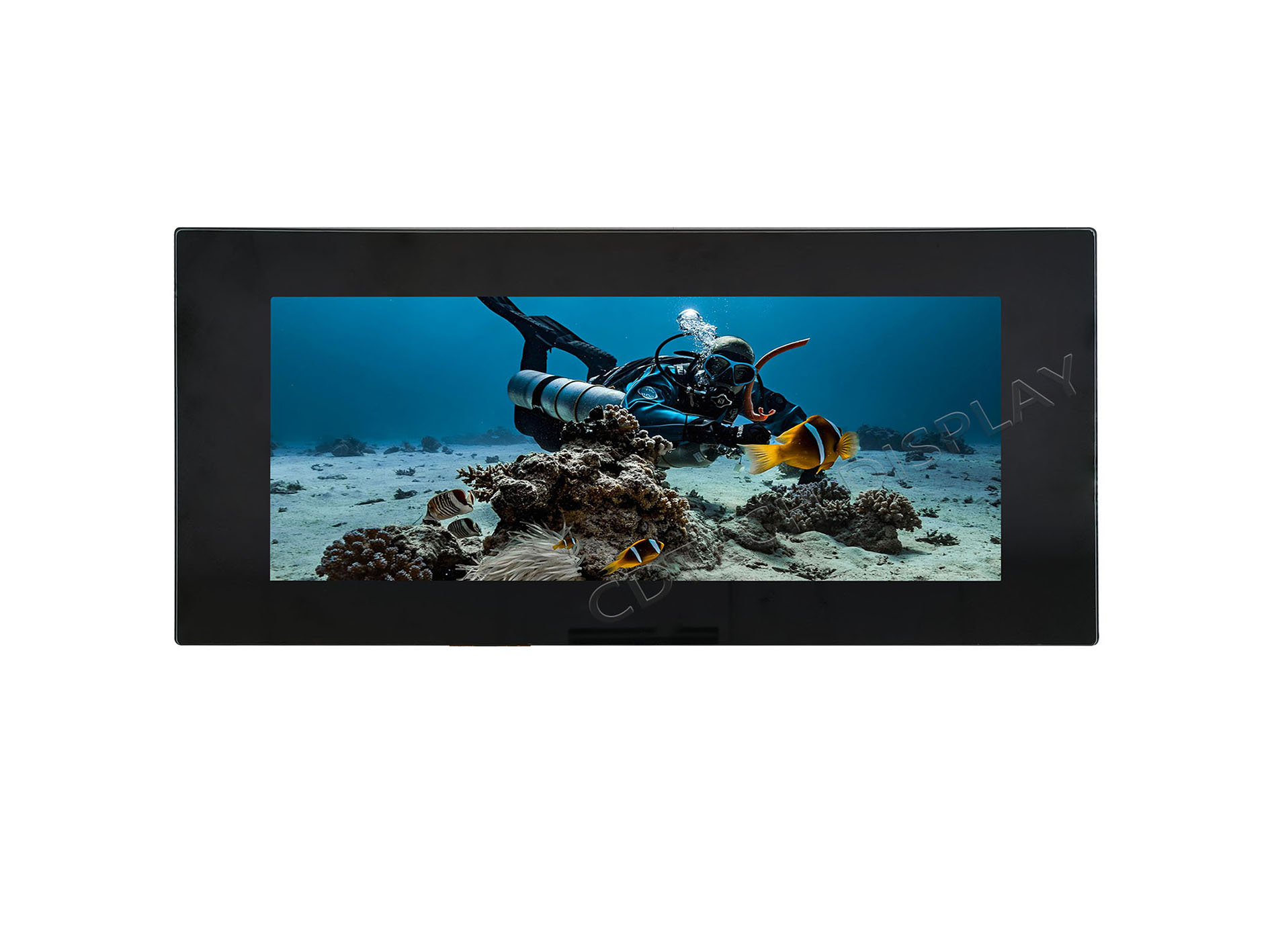

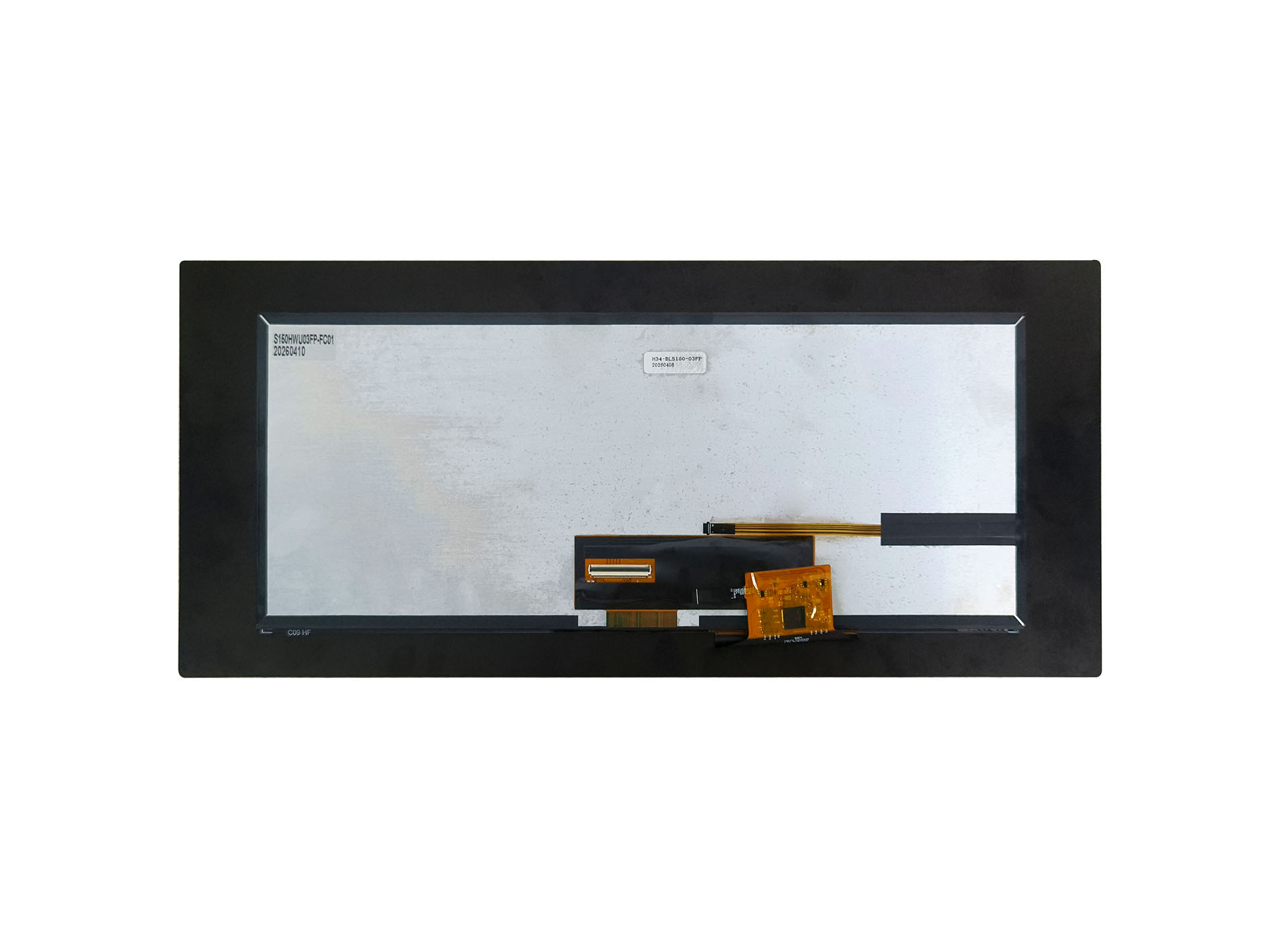

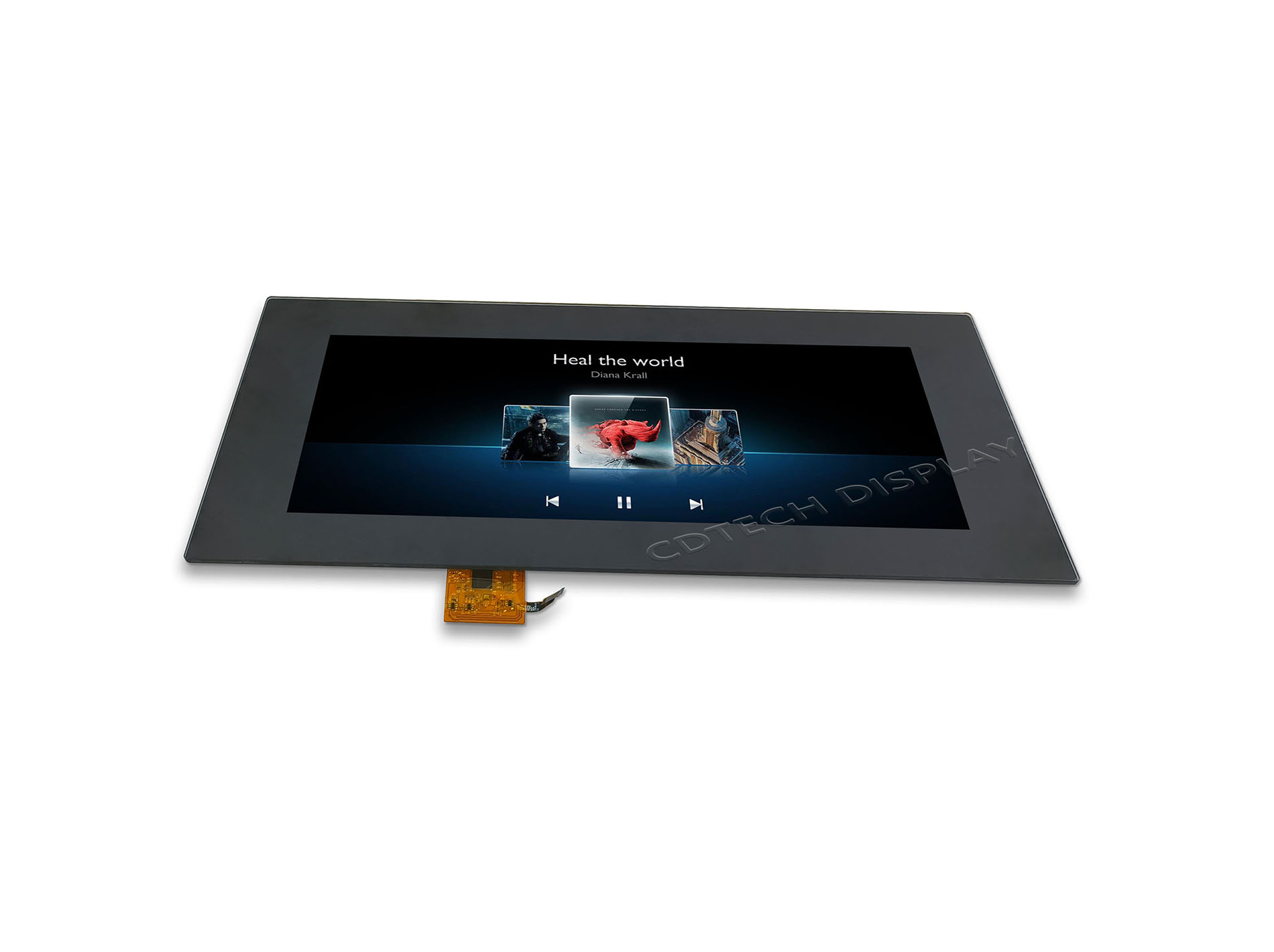

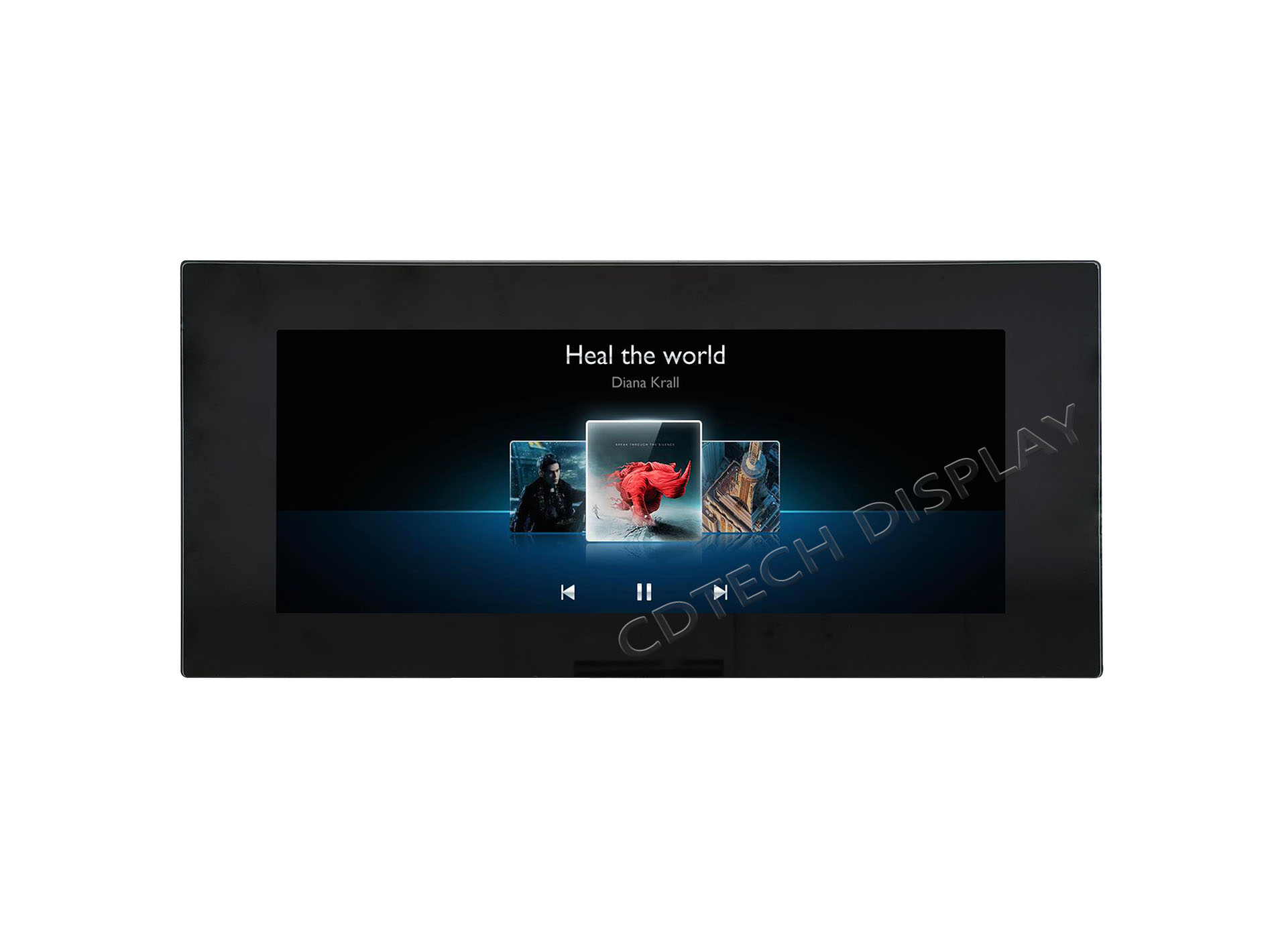

15 Inch Sunlight Readable Bar Type IPS Touch Display for Agricultural Machinery
-
S150HWU03FP-FC01
-
15.0"丨1920 x 720 Pixels
-
IPS with All viewing angle
-
Capacitive with USB&IIC interface
-
LVDS
-
USB&IIC
-
-30°C~+85°C
Product Description
This 15 inch bar type IPS TFT LCD display is designed for agricultural machinery, outdoor industrial equipment and rugged HMI systems requiring reliable visibility and stable touch interaction in harsh environments. With a stretched 1920×720 resolution and high brightness performance, the display remains clearly visible under direct sunlight and outdoor operating conditions. IPS full viewing angle technology ensures consistent image quality from different viewing directions, making it suitable for vehicle-mounted and industrial control applications.
The integrated capacitive touch panel combined with OCA optical bonding technology improves touch accuracy while reducing internal reflection, providing better visibility and smoother operation for outdoor environments. Supporting industrial-grade wide temperature operation from -30°C to +85°C, this rugged TFT LCD module is ideal for smart farming systems, transportation equipment, industrial automation terminals and outdoor monitoring devices.
Key Features
- 15 inch bar type IPS TFT LCD display
- 1920×720 stretched resolution
- 950 nits high brightness for sunlight readable applications
- IPS full viewing angle technology (85°)
- Capacitive touch screen with 5-point multi-touch support
- OCA optical bonding for improved outdoor visibility
- HX82102 LCD driver IC with LVDS interface support
- ILI2511 touch controller supporting USB and IIC interfaces
- Wide operating temperature range: -30°C to +85°C
Product Applications
- Agricultural Machinery
Suitable for tractors, harvesters, precision farming systems and intelligent agricultural control equipment operating in outdoor environments. - Smart Farming Equipment
Supports smart agriculture terminals requiring sunlight readable performance, stable touch interaction and rugged environmental reliability. - Outdoor Industrial Equipment
The high brightness display and OCA bonded touch panel improve visibility and operation under direct sunlight conditions. - Industrial HMI Systems
Ideal for industrial automation equipment and rugged HMI terminals requiring wide temperature operation and reliable display performance. - Transportation & Vehicle-Mounted Systems
Suitable for transportation monitoring systems and vehicle-mounted control equipment using stretched display formats.
Product Specification
| LCD Size | 15.0 inch |
| LCD Resolution | 1920 x 720pixels |
| LCD Active Area | 355.68 x 133.38 (mm) |
| LCD Luminance | 950nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | LVDS |
| LCD Controller | HX82102 |
| LCD Connection Type | FPC: 50PIN with 0.5 pitch,Connector : TF31-50S-0.5SH(800) |
| LCD Backlight Array | 8 Strings with 8 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=460mA，VF=21.6~27.2V |
| LCD Outline Dimension | 366.88 x 146.28 x 6.50 (mm) |
| CTP structure | G+G |
| CTP interface | USB&IIC |
| CTP Controller | ILI2511 |
| CTP Outline Dimension | 446.80 x 196.00 x 4.90 (mm) |
| CTP Connection Type | None |
| Product Outline Dimension | 446.80 x 196.00 x 11.65 (mm) |
| Product Operation Temp | -30°C~+85°C |
| Product Storage Temp | -30°C~+85°C |
Recommendations for use
-
LCD Customization
In LCD products, backlight does not only represent what we often call brightness and LED series and parallel connection. From the design point of view, backlight also includes colour gamut, structure(car structure, ultra-thin structure), screw hole positioning post(LCD side or back), NTC overheat protection, external backlight control option, and LED lifetime. In terms of materials, backlight includes light guides, backlight FPC, reflectors, diffusers, frames, and so on. CDTech can provide evaluation and customisation services for all of these options.
-
Touch Panel Customization
Our touch screen customization services support thick cover lens, operation with water or gloves, and the use of active or passive pens. We offer flexibility in selecting different IC solutions to meet specific needs, such as Microchip, Atmel, FocalTech, Goodix, ILITEK, EETI, HYCON, and Cypress. We can design G+G or GFF (film sensor) structures and support COG/COB designs for CTP-FPC. These customizations ensure our touchscreens meet the specific demands of various applications, ensuring reliable and precise touch functionality.
-
Usage Guidelines
CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.
Related Products
Quality Standards
CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.
All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.
| Project Evaluation |
Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors. |
| Product Design |
Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification. |
| Production Control |
All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance. |
| Production Inspection |
All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations. |
| After Sales Service |
We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days. |
| Product Lifetime |
The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details. |
| Warranty period |
The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service. |
| ESD Protection |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
-
