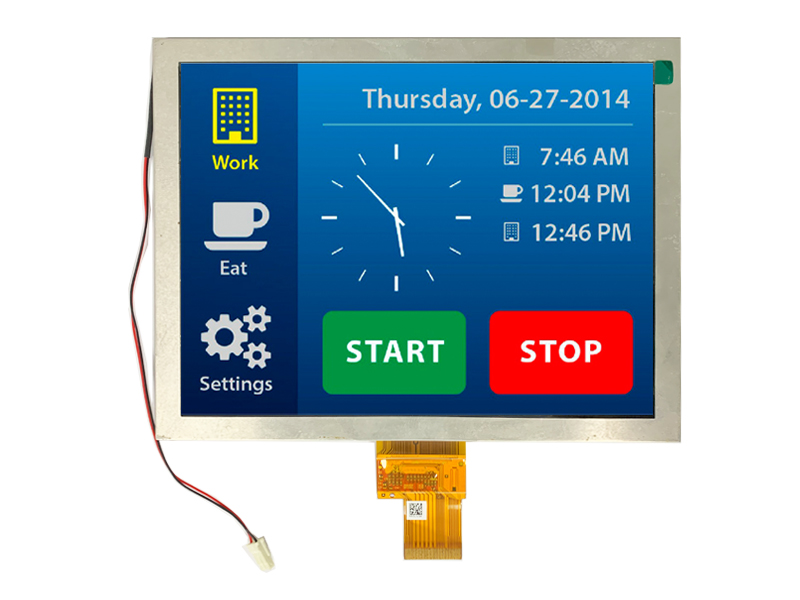

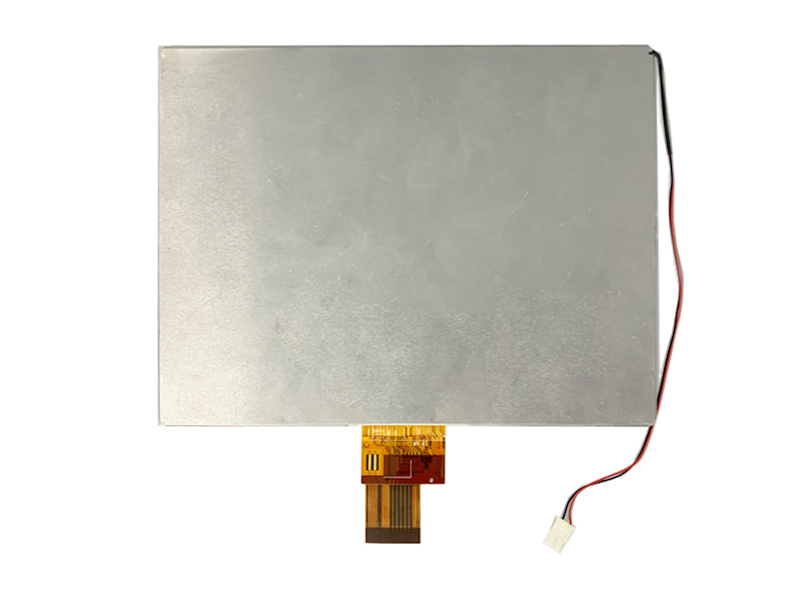

8.0″ Sunlight Readable IPS Display, 1024×768, 1000 Nits without Touch Panel
-
S080QXG04EA
-
8.0"丨1024 x 768 Pixels
-
IPS with All viewing angle
-
None
-
LVDS
-
None
-
-10°C~+50°C
Product Description
This 8-inch sunlight-readable IPS TFT LCD features a 1024 × 768 resolution and 1000 cd/m² brightness, providing clear image reproduction in high-ambient-light environments. The IPS panel supports wide viewing angles for consistent image visibility across different viewing directions, while the 800:1 contrast ratio helps maintain clear separation between bright and dark areas.
The display uses an LVDS interface with a 40-pin, 0.5 mm-pitch FPC connection and is designed without a touch panel, making it suitable for integration into existing display systems. NT51008M and NT39212F driver ICs support the LCD module architecture.
With an operating temperature range of -10°C to +50°C and a storage temperature range of -20°C to +60°C, this 8-inch high-brightness IPS display can be integrated into industrial control panels, medical equipment, medical monitoring devices, outdoor equipment, and other embedded systems that require a bright 1024 × 768 display.
Applications
- Industrial Control Panels: For HMIs, control terminals, automation equipment, and industrial operator interfaces.
- Medical Equipment: Suitable for medical devices and equipment requiring a bright, wide-viewing-angle LCD interface.
- Medical Monitoring Devices: Can be integrated into monitoring and measurement equipment where clear display visibility is required.
- Outdoor Equipment: The 1000 cd/m² brightness makes the display suitable for equipment operating in high-ambient-light environments.
- Embedded HMI Systems: Designed for embedded systems requiring an 8-inch 1024 × 768 IPS display with an LVDS interface.
Why Choose This 8-Inch 1000-Nit IPS Display?
The combination of an 8-inch form factor, 1024 × 768 resolution, 1000 cd/m² brightness, IPS viewing performance, and LVDS connectivity makes this display suitable for systems that require high-brightness image output without an integrated touch panel.
Its no-touch configuration allows equipment manufacturers to integrate their own touch solution, protective cover, or front-panel design according to system requirements. The 1000-nit brightness is particularly useful for applications where the display needs to remain readable under high ambient lighting conditions.
Product Specification
| LCD Size | 8.0 inch |
| LCD Resolution | 1024 x 768pixels |
| LCD Active Area | 162.05 x 121.54 (mm) |
| LCD Luminance | 1000nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | LVDS |
| LCD Controller | None |
| LCD Connection Type | FPC: 40PIN with 0.5 pitch |
| LCD Backlight Array | 9 Strings with 3 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=540mA，VF=9.6~2.0V |
| LCD Outline Dimension | 183.00 x 141.00 x 6.15 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 183.00 x 141.00 x 6.15 (mm) |
| Product Operation Temp | -10°C~+50°C |
| Product Storage Temp | -20°C~+60°C |
Recommendations for use
-
LCD Customization
LCD FPC is both an important part of the LCD module and a key choice for customer motherboards. CDTech can support customized FPC pinout layout, overall dimensions, FPC with connector type, soldering or plug-in type, PWM function design, anti-static design, EMI, EMC, ESD, and black epoxy resin coating around the IC. Most of the automotive projects have extreme requirements for the EMI, EMC, ESD, in order to help customers minimize EMI, EMC, ESD issues, we can add EMI shielding film to the FPC.
-
Touch Panel Customization
For selective CTP solutions that can be used for multiple applications, CDTech has our own CTP production line and can provide diversified CTP customisation services, including: support for touch through thick cover glass, waterproof touch(e.g., automotive, charging post, shower devices, etc.), glove touch(e.g., medical and automotive, etc.), active/passive pens(e.g., industrial control and tablet PC), and customised CTP FPC. CDTech also cooperates with several IC suppliers, so that we can choose the right touch IC according to different projects and different CTP requirements, and can support USB and IIC interfaces.
-
Usage Guidelines
CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.
Quality Standards
CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.
All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.
| Project Evaluation |
Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors. |
| Product Design |
Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification. |
| Production Control |
All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance. |
| Production Inspection |
All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations. |
| After Sales Service |
We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days. |
| Product Lifetime |
The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details. |
| Warranty period |
The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service. |
| ESD Protection |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
-
