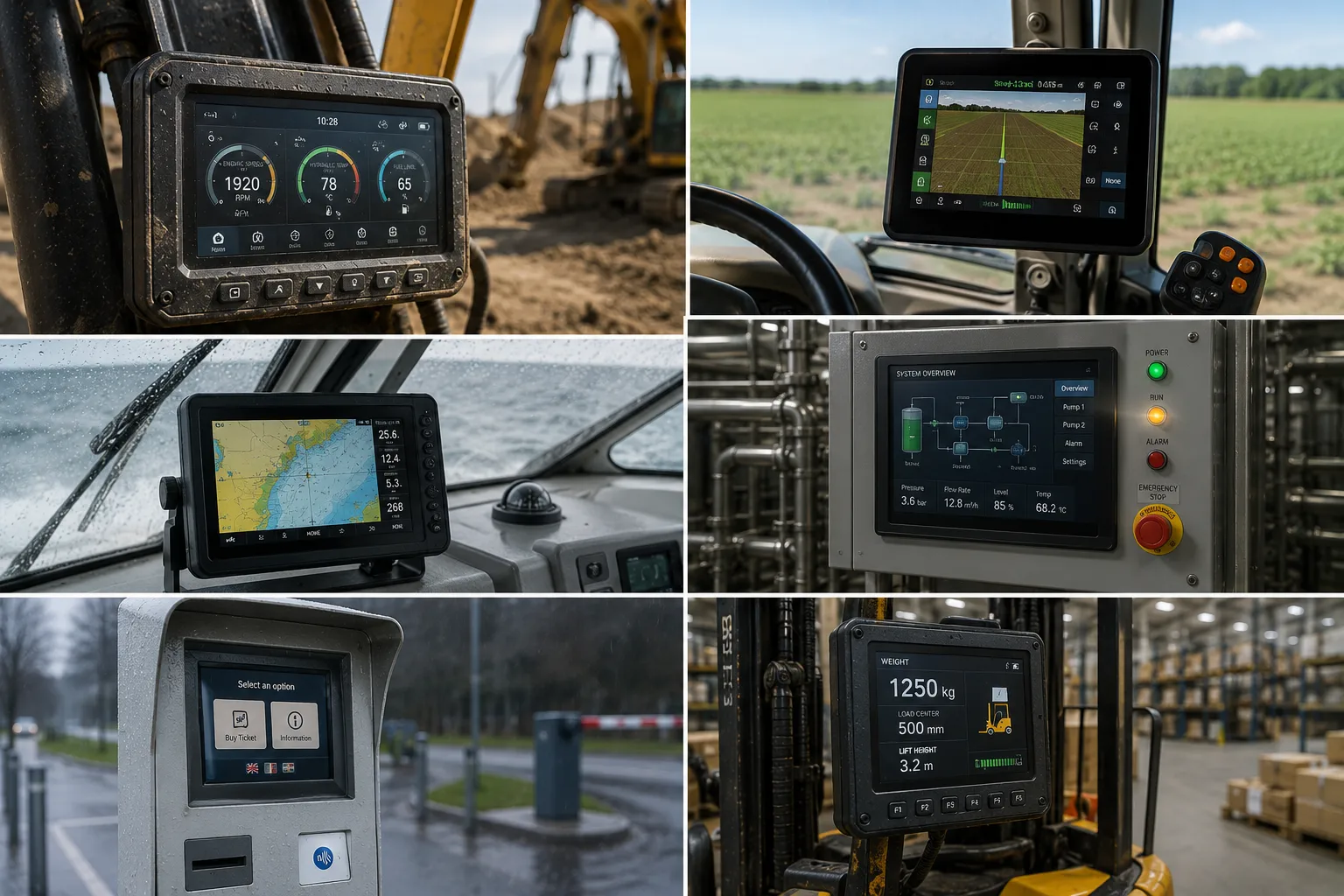

Industrial LCD Display Solutions for HMI & Industrial Equipment
2024-06-29
19:14
Introduction
Industrial equipment requires displays that can deliver clear visual information, reliable operation, and consistent performance under demanding industrial conditions. Unlike general-purpose displays, industrial applications often involve specific requirements for operating temperature, brightness, touch interaction, mechanical integration, interface compatibility, and long-term supply.
CDTech provides customized TFT LCD and touch display solutions for industrial automation, HMI systems, control and monitoring equipment, measurement instruments, and outdoor equipment. Our engineering team supports projects from display selection and specification matching to customization, prototype development, validation, and mass production.
With flexible options for display size, resolution, brightness, touch technology, optical enhancement, interface, and mechanical integration, CDTech helps equipment manufacturers develop display solutions matched to their application and operating environment.
Industrial LCD Display Challenges
Industrial equipment may operate continuously in environments where display visibility, temperature, operator interaction and installation space all need to be considered during display selection.
1. Readability Under High Ambient Light
Industrial equipment may be installed in workshops, production areas, outdoor environments, or locations with changing ambient light. Insufficient display brightness or excessive surface reflection can make critical information difficult to read.
CDTech provides high-brightness TFT LCD options, IPS wide-viewing-angle technology, optical bonding, and AG/AR/AF surface treatment options to improve display visibility according to application requirements.
2. Stable Display Performance Across Temperature Changes
Industrial equipment may operate in environments with significant temperature changes or extended operating periods. Display performance, touch response, and component stability therefore need to be considered during solution development.
CDTech offers application-specific wide-temperature display configurations and supports temperature-related validation based on project requirements.
3. Reliable Touch Operation for Operator Interaction
Industrial HMIs may be operated repeatedly during equipment operation, including applications where operators wear gloves or interact with the screen under demanding working conditions.
CDTech supports PCAP and resistive touch technologies, with optional glove-touch configurations and customized cover glass solutions depending on the application.
4. Clear Information Across Different Viewing Conditions
Operators may view industrial displays from different angles and under different lighting conditions. Viewing angle, contrast, surface reflection, and optical clarity can affect how easily information is interpreted.
CDTech provides IPS TFT LCD options, wide viewing angles, optical bonding, and AG/AR/AF surface treatment options to support different visual and environmental requirements.
5. Limited Installation Space & Mechanical Constraints
Industrial equipment often has defined enclosure dimensions and limited internal installation space. A standard display may not always match the required dimensions, mounting structure, FPC routing, or cover glass configuration.
CDTech supports customized display dimensions, cover glass, FPC configurations, and mechanical integration to help fit displays into space-constrained equipment.
6. Interface Compatibility & System Integration
Display modules must be compatible with the controller, processor, or system architecture used by the equipment. Interface requirements may vary depending on system design and display size.
CDTech supports common display interfaces including LVDS, MIPI DSI, RGB, HDMI, and eDP, with engineering support for interface matching and system integration.
Industrial LCD Display Applications
Industrial equipment relies on displays for machine control, process monitoring, measurement, and operator interaction. CDTech provides TFT LCD and touch display solutions for industrial automation, HMI systems, control and monitoring equipment, measurement instruments, and outdoor industrial applications.

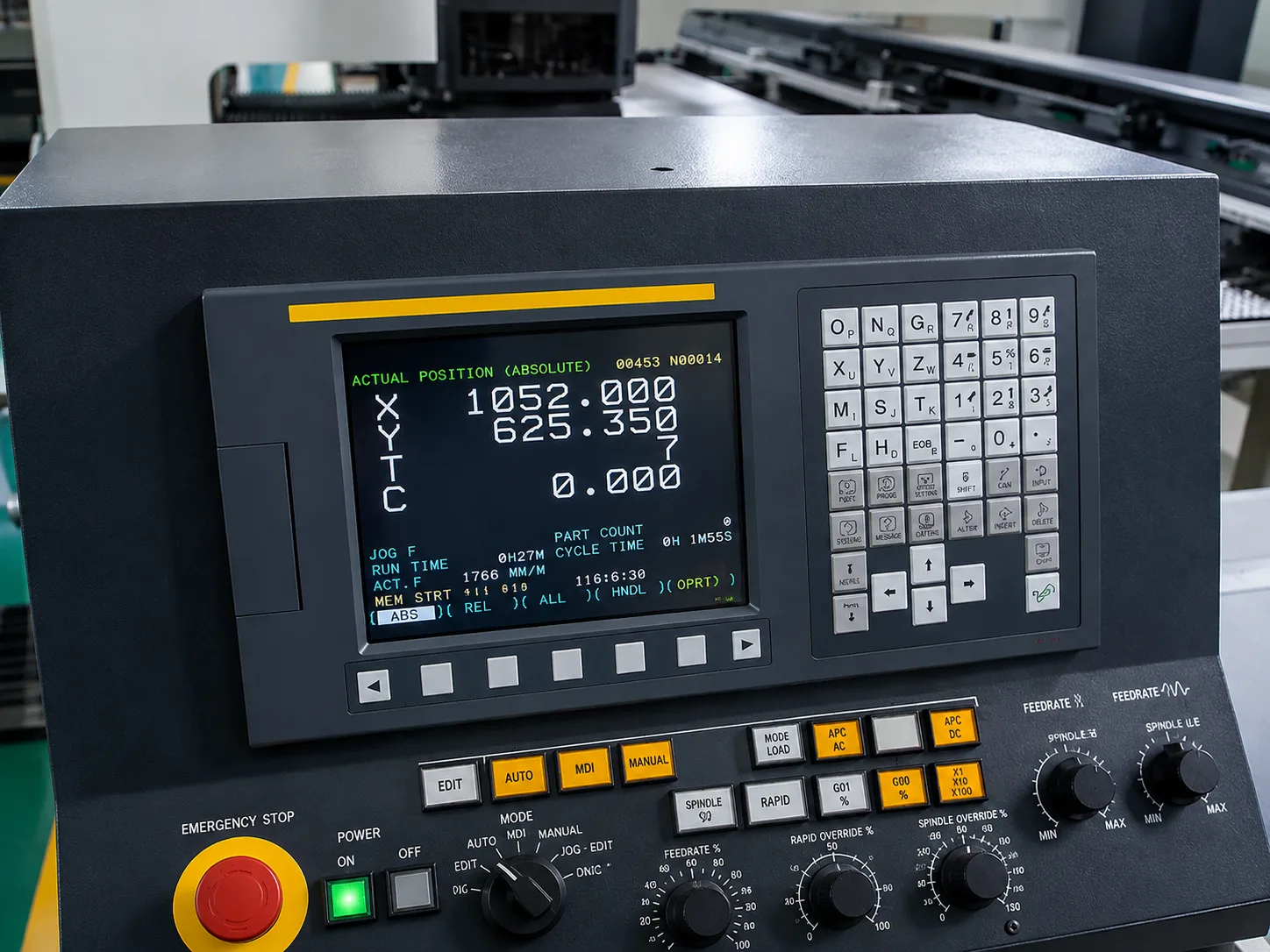

Industrial Automation Display Solutions:
TFT LCD and touch display solutions for machine control, production equipment, PLC-based systems and industrial automation interfaces.

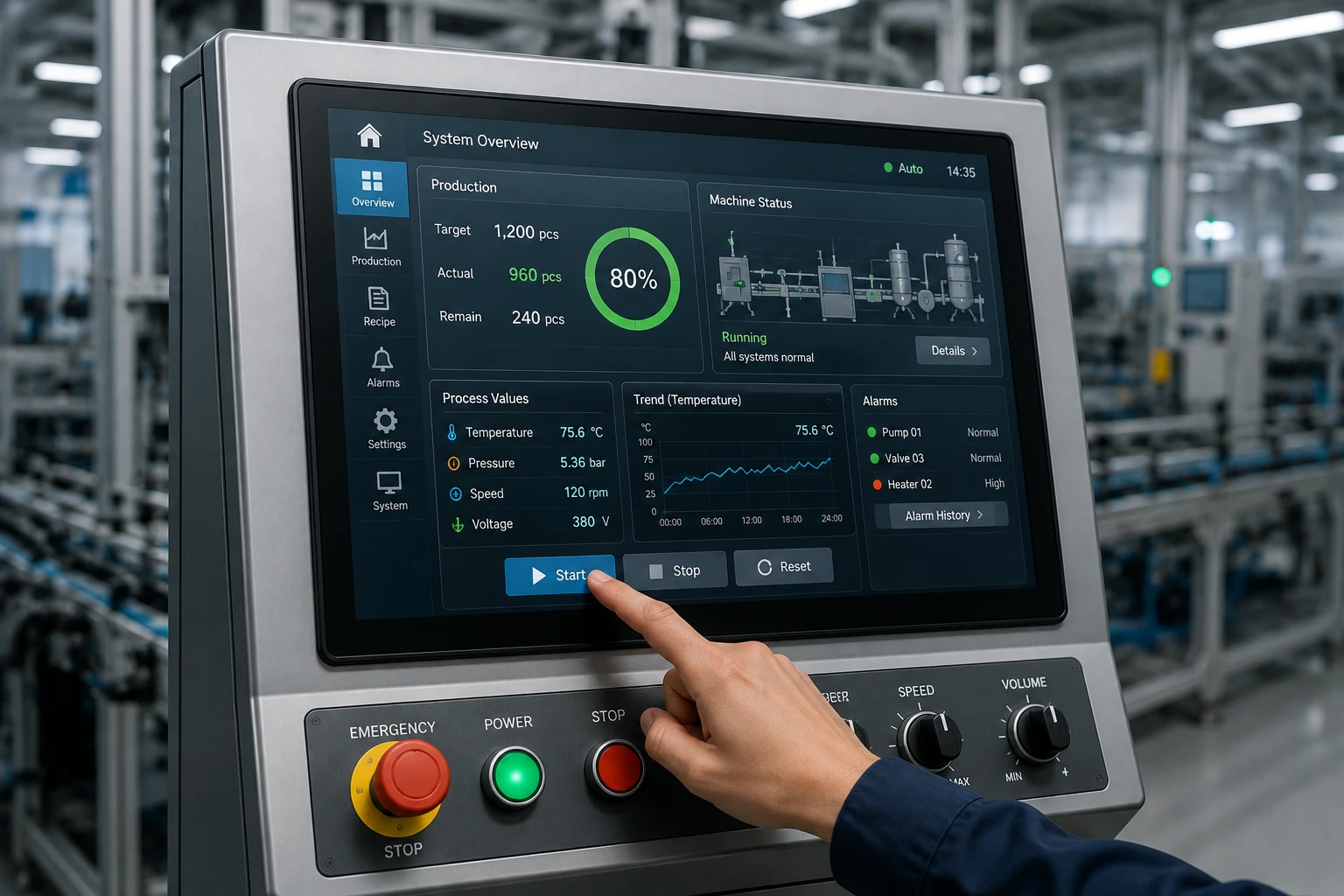

Industrial HMI Display Solutions:
Interactive display solutions for HMI panels, operator terminals and equipment control interfaces, with options for touch integration, wide viewing angles and optical enhancement.

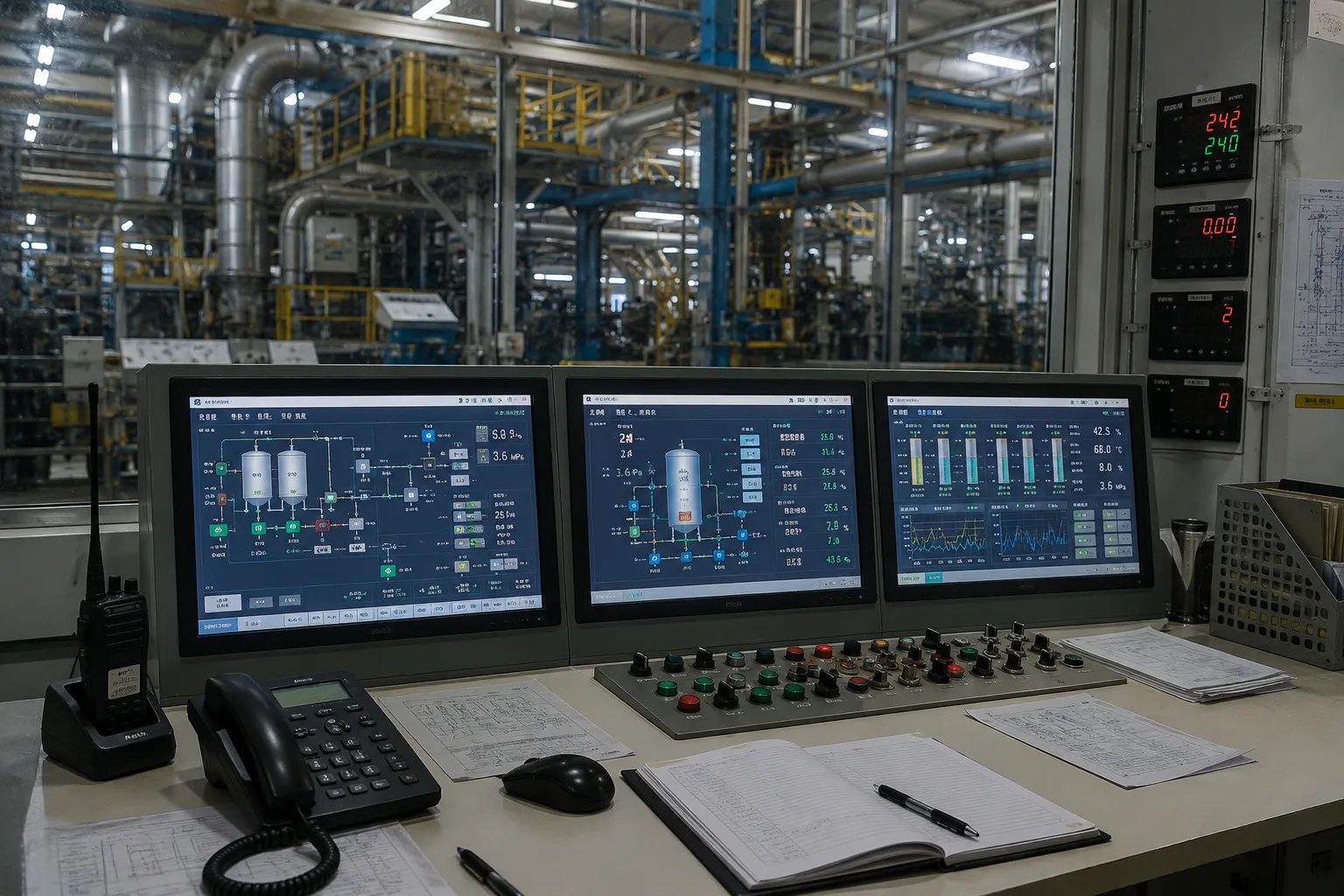

Industrial Control & Monitoring Display Solutions:
Display solutions for control panels, equipment controllers and monitoring terminals requiring clear information visibility and stable operation during long-term equipment use.

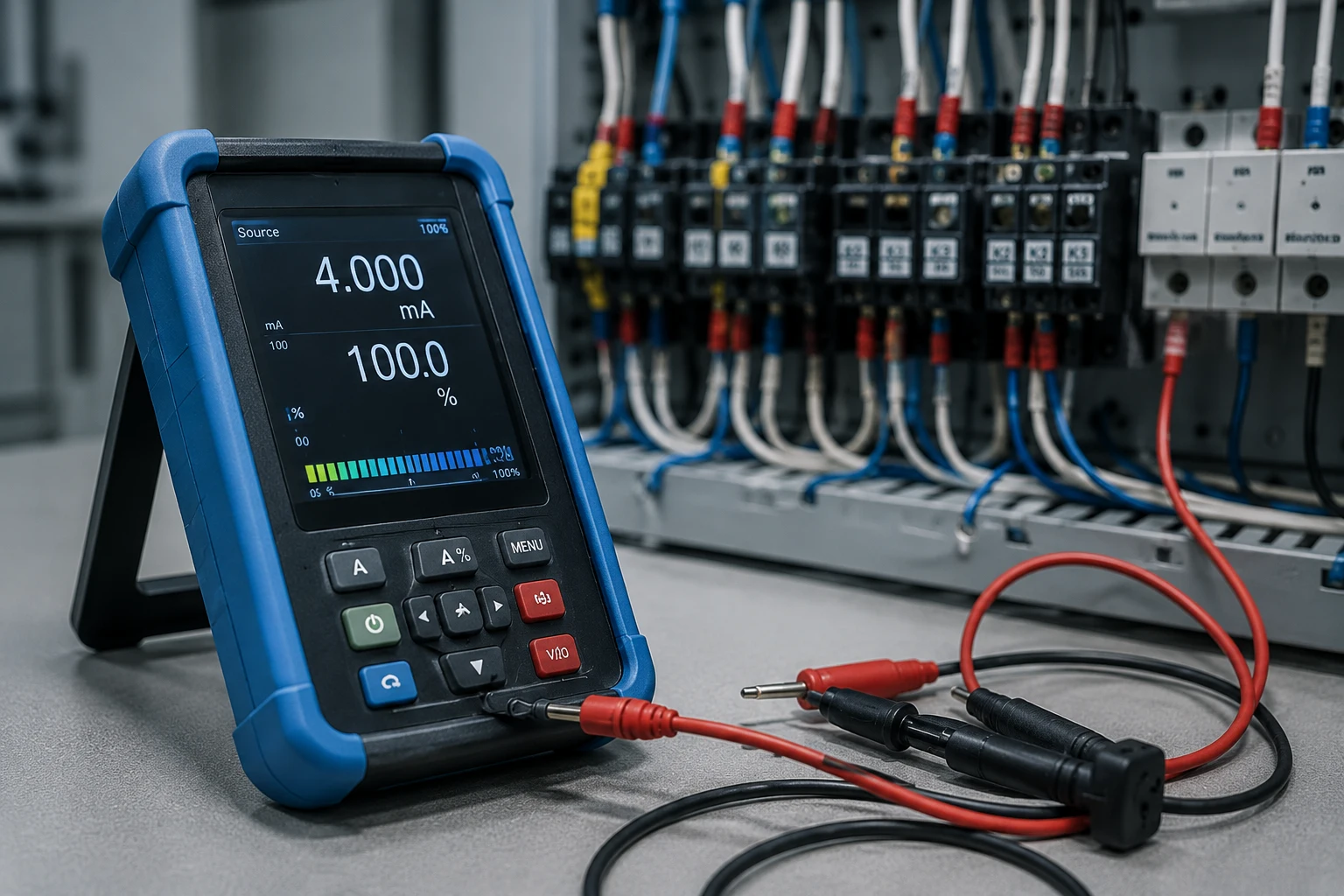

Measurement & Instrumentation Display Solutions:
Compact and high-resolution TFT LCD solutions for measurement instruments, testing equipment, meters, and diagnostic systems.

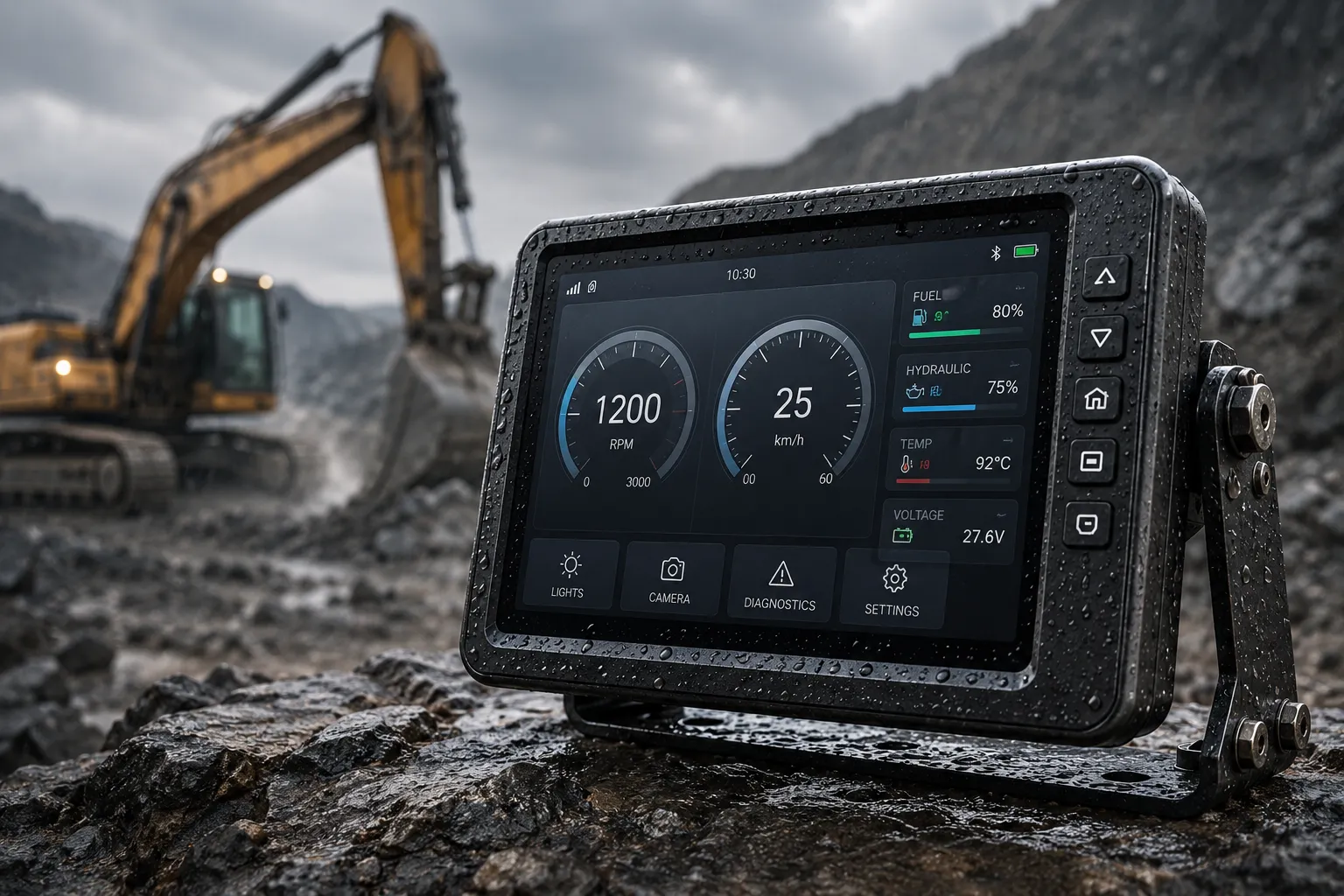

Outdoor & Harsh-Environment Display Solutions:
Display solutions for outdoor industrial equipment, agricultural machinery, EV charging equipment, kiosks, and other demanding environments, with application-specific options for brightness, touch operation, optical performance, and environmental protection.
Industrial Display Specifications & Engineering Capabilities
CDTech provides TFT LCD display solutions based on application-specific industrial display requirements. Display configurations can be customized according to display size, resolution, brightness, viewing angle, operating temperature, touch technology, interface, optical performance, and mechanical integration.
Technical Specification Table
|
Feature |
Capability |
|
Display Technology |
IPS TFT LCD / application-specific display configurations |
|
Display Size |
1.5 inch to 15.6 inch |
|
Resolution |
Application-specific resolution options |
|
Brightness |
Standard and high-brightness options depending on application |
|
Viewing Angle |
Wide viewing angle IPS options |
|
Operating Temperature |
Application-specific wide-temperature configurations |
|
Touch Technology |
PCAP / Resistive / glove-touch options |
|
Surface Treatment |
AG / AR / AF coating options |
|
Optical Bonding |
OCA / LOCA / frame bonding options |
|
Display Interface |
LVDS / MIPI DSI / RGB / HDMI / eDP / SPI / MCU |
|
Touch / Control Interface |
I²C / USB and application-specific configurations |
|
Mechanical Integration |
Customized dimensions, cover glass, FPC and mounting requirements |
Application-Specific Industrial Display Options
For industrial equipment operating under specific environmental or structural conditions, standard display specifications may not be sufficient. CDTech can configure display solutions around the actual application environment and equipment design.
1. Material & Component Selection
Industrial display performance depends on the selection and combination of display, touch, optical, and mechanical components. CDTech evaluates material and component requirements according to the application’s optical conditions, touch interaction, operating environment, and mechanical constraints.
This application-based approach helps ensure that the selected display configuration is matched to the equipment’s functional and environmental requirements.
2. Long-Term Operation
Industrial equipment may operate for extended periods and require consistent display performance throughout its service lifecycle. CDTech considers display configuration, operating conditions, touch requirements, and reliability requirements during project development and validation.
Our production and engineering support are structured to support stable manufacturing and long-term supply for qualified projects.
3. Compact & Space-Constrained Design
Industrial equipment often requires displays to fit within defined enclosure dimensions and limited installation space. CDTech supports compact display configurations and customized mechanical integration, including display dimensions, cover glass, FPC routing, and mounting requirements.
These options help integrate the display into equipment where available space or mechanical structure is limited.
4. Special Environmental Requirements
Depending on application requirements, industrial equipment may require additional protection or enhanced usability in demanding environments.
CDTech can support application-specific configurations such as high brightness, glove-touch operation, optical bonding, AG/AR/AF surface treatment, water-resistant designs, anti-condensation solutions, UV-resistant solutions, and protective mechanical configurations where applicable.
Final specifications are determined according to the equipment design, operating environment, and project requirements.
Industrial Display OEM / ODM Solutions
CDTech provides industrial display OEM/ODM support from display selection and specification matching to prototype development, validation, and mass production. Our engineering team works with customers to develop display configurations according to application, system, optical, touch, and mechanical requirements.
Industrial Display Development Capabilities
|
Capability |
Solution |
|
Display Selection |
Application-based display selection and specification recommendation |
|
Custom Display Design |
Size, resolution, touch, cover glass and mechanical customization |
|
Interface Integration |
LVDS, MIPI DSI, RGB, HDMI, eDP and related integration support |
|
Optical Enhancement |
OCA/LOCA bonding and AG/AR/AF surface treatment |
|
Prototype Development |
Engineering samples for project evaluation and verification |
|
Mass Production |
Stable manufacturing and long-term supply support |
Industrial Display Reliability & Quality Assurance
Quality Management
CDTech operates under certified quality management systems supporting controlled product development and manufacturing processes.
Relevant Quality Certifications
ISO 9001 | ISO 14001 | ISO 13485 | IATF 16949
Certification scope and applicability depend on the relevant business, manufacturing process, and application requirements.
Reliability Validation
Depending on project requirements, CDTech supports application-specific validation covering:
- High and low temperature testing
- Temperature cycling
- Optical performance verification
- Touch performance verification
- Vibration validation
- Long-term reliability evaluation

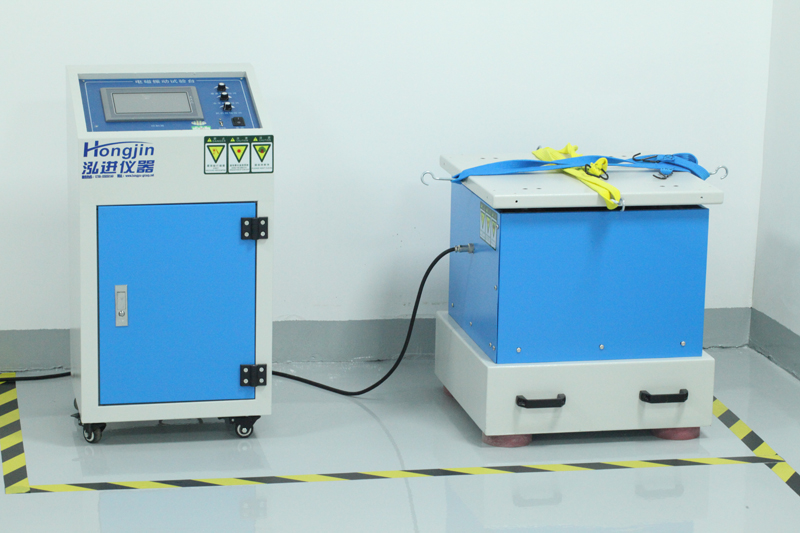

Electromagnetic Vibration Shaker Table-CDTech display
Featured Industrial Display Solutions

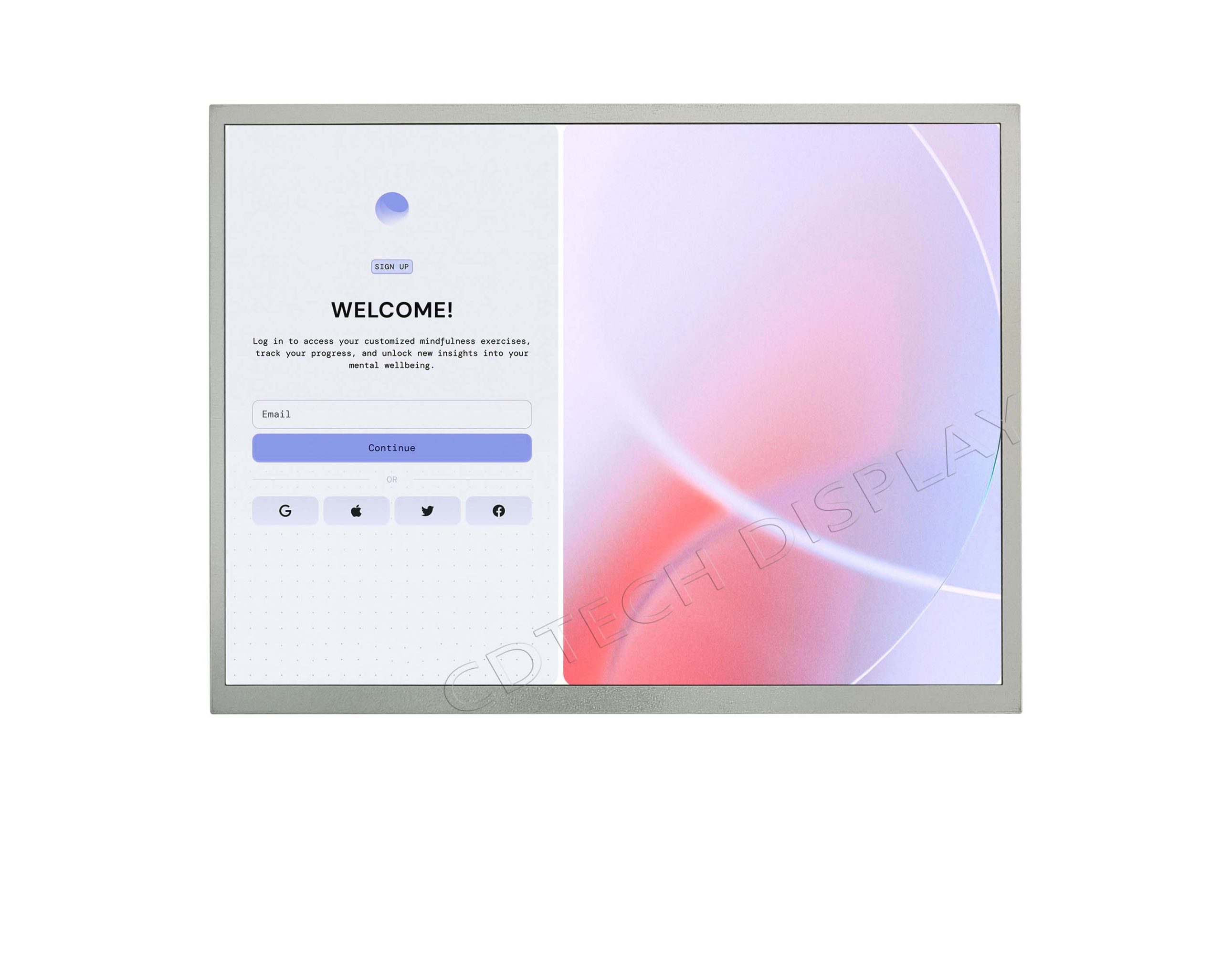

Industrial HMI Display – 12.1″ Series
Industrial Control Display – 10.1″ Series
Industrial & Outdoor Displays – 7.0″ Series
Compact Instrument Displays – 3.5″ / 4.3″ / 5.0″ Series
Customized Industrial Display Solutions
Touch | Optical Bonding | High Brightness | Mechanical Integration
Why Choose CDTech for Display Solutions?
Industrial Display Expertise
- 15 years of experience in TFT LCD and touch display solutions
- Expertise in embedded and industrial display applications
Engineering Support
- Display selection, interface matching and integration support
- Technical assistance from concept to validation
Flexible Customization
- Custom sizes, interfaces, touch and optical solutions
- OEM/ODM support for application-specific requirements
Fast Prototype Development
- Rapid engineering samples for project evaluation
- Support from prototype verification to production
Flexible Production Capability
- Support customized projects with flexible volume requirements
- Stable manufacturing and long-term supply capability
Quality Assurance
- Certified quality management systems
- Application-specific reliability validation
Complete Industrial Display Solution Service
Display Consultation
- Application analysis
- Display specification recommendation
Custom Display Design
- TFT LCD customization
- Touch panel integration
Interface Integration
- LVDS
- MIPI DSI
- RGB
- HDMI
- eDP
Optical Enhancement
- Optical bonding
- AG / AR / AF surface treatment
Mechanical Integration
- Cover glass
- FPC and mounting requirements
Reliability Validation
- Temperature testing
- Optical and touch performance testing
- Vibration testing
Mass Production
- Prototype samples
- Volume production
Technical Support
- Engineering assistance
- Lifecycle support
Frequently Asked Questions About Industrial Display Solutions
Q1: What type of LCD displays are used in industrial applications?
A: Industrial applications commonly use TFT LCD displays with features such as wide viewing angles, high brightness, touch integration, flexible interfaces, and application-specific environmental configurations.
Q2: What sizes of industrial LCD displays does CDTech provide?
A: CDTech provides TFT LCD display solutions ranging from compact embedded displays to larger industrial HMI displays, with available sizes from approximately 1.5-inch to 15.6-inch depending on the product and project requirements.
Q3: Can CDTech provide industrial LCD displays with touchscreens?
A: Yes. CDTech supports PCAP and resistive touch solutions, with options for glove-touch operation, customized cover glass, and optical bonding depending on application requirements.
Q4: What operating temperature options are available?
A: CDTech provides application-specific wide-temperature configurations. The available operating temperature range depends on the selected display, components, touch configuration, and project requirements.
Q5: What interfaces are supported for industrial LCD displays?
A: CDTech supports common display interfaces including LVDS, MIPI DSI, RGB, HDMI, and eDP, with additional touch and control interfaces available according to the selected configuration.
Q6: Can industrial displays be customized for harsh environments?
A: Yes. Depending on project requirements, CDTech can support configurations such as high brightness, optical enhancement, glove touch, protective mechanical designs, water-resistant solutions, anti-condensation solutions, and UV-resistant configurations where applicable.
Q7: What information is required for a custom industrial display project?
A: Typical project information includes display size, resolution, brightness, interface, touch requirements, operating temperature, installation dimensions, cover glass requirements, and expected application environment.
Q8: What is the MOQ for customized industrial LCD displays?
A: MOQ depends on the display specification, customization requirements, production volume, and project stage. CDTech can support prototype samples and customized production requirements.
Q9: How does CDTech support long-term industrial display supply?
A: CDTech supports qualified projects through controlled manufacturing processes, engineering support, product validation, and stable production capabilities designed to support long-term supply requirements.
Develop Your Industrial Display Solution With CDTech
Need an Industrial Display for Your Equipment?
Tell us your display size, resolution, interface, brightness, touch and operating temperature requirements. CDTech’s engineering team can recommend a suitable TFT LCD or touch display solution and support prototype development through mass production.
